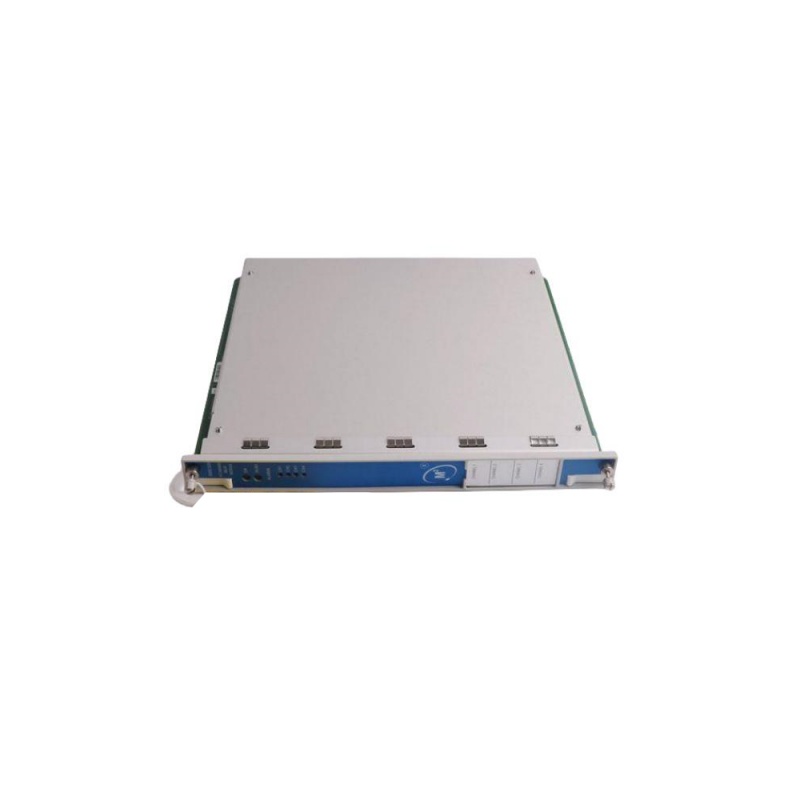

Bently Nevada 3500/40M 140734-01 Proximitor Monitor

Product Specification

3500/40M 140734-01 Proximitor Monitor

Brand Name:Bently Nevada

Product Name:3500/40M 140734-01

Warranty:1Year

Main Parameters

Core Features & Advantages

• Four Independent Channels with Pair Configuration: The module provides four proximity probe input channels, configured in pairs (channels 1&2 form one group, channels 3&4 form another). Each pair can be independently programmed for different measurement functions, allowing a single module to simultaneously monitor, for example, radial vibration on one pair and thrust position on the other .

• Comprehensive Measurement Suite: Supported measurement functions include radial shaft vibration (X/Y axis), axial thrust position, differential expansion (rotor-to-casing growth), shaft eccentricity, and REBAM® (Rolling Element Bearing Activity Monitoring) for rolling element bearing condition assessment .

• Programmable Alarm Protection: Each channel is independently configurable via the 3500 Rack Configuration Software. Conditioned signals are compared against user-programmable Alert and Danger setpoints with configurable time delays (1–60 seconds) to prevent nuisance trips while ensuring reliable machinery protection .

• Buffered Transducer Outputs: Front-panel BNC connectors provide buffered, short-circuit protected transducer signal outputs for each channel. This enables connection of portable diagnostic instruments or oscilloscopes for external signal analysis without interrupting the monitoring function .

• Hot-Swap Capability with System Availability: The module supports hot-swapping; during replacement, the corresponding measurement and protection functions are temporarily invalid, but other modules in the rack continue operating normally. For critical applications, it is recommended to bypass associated interlocks before replacement to prevent unintended trips .

Typical Applications

The 3500/40M is widely used for continuous machinery protection in heavy industries :

• Power Generation: Steam turbines, gas turbines, and generators

• Oil & Gas: Centrifugal compressors, pumps, and fans in refineries and offshore platforms

• Petrochemical: Critical rotating equipment in chemical and petrochemical plants

• Heavy Industry: Large motors, gearboxes, and blowers in steel mills, pulp & paper, and mining operations

Frequently Asked Questions (FAQ)

Q1: What is the difference between 140734-01 and 140734-00?
A: Both are 3500/40M four-channel monitors with identical core functions. The suffix difference typically represents hardware batch or minor revision. In most cases they are interchangeable, but you should verify the hardware version number on the module label and confirm configuration software compatibility .

Q2: Can the 3500/40M 140734-01 directly replace the older non-M-series 3500/40 (125680-01)?
A: No. The M-series module cannot directly drop-in replace the older non-M-series 3500/40. A rack firmware upgrade is mandatory. The 140734-01 must also be paired with the correct rear I/O board (140748-01), not legacy rear terminal boards .

Q3: Does replacing this module require reconfiguration?
A: Configuration parameters for the 3500/40M are stored in the rack's communication module or host computer, not in the monitor itself. A direct replacement of the same model will be automatically recognized by the rack and will load the existing configuration. However, after replacement, you should perform a channel calibration verification to ensure measurement accuracy .

Q4: Can this module be hot-swapped?
A: The 3500 series supports hot-swapping, but it is strongly recommended to bypass associated interlocks and shut down if conditions permit. Since the module directly participates in machinery protection logic, hot-swapping can momentarily produce transient interference that may cause a false trip. If online replacement is necessary, force-bypass all interlock outputs for this module in the DCS/SIS before proceeding .

Q5: What is the difference between 140734-01 and 176449-01?
A: The 140734-01 is the complete order number for the 3500/40M monitor module (front card). The 176449-01 is a related part number often associated with the rear I/O module or a specific configuration variant. They serve different roles in the complete monitor assembly .

Q6: What should I check if the DC gap voltage reads near -2 V?
A: A reading near -2 V DC typically indicates a shorted probe or cable. Check the probe coil resistance and inspect the cable and connectors for damage or moisture ingress. A reading near -24 V typically indicates an open circuit. These are field-side issues; the monitor module itself is rarely the root cause .

Recommended Models & Related Products

The 140734-01 is part of the 3500/40M Proximitor Monitor family. Below are related models and required components:

Choosing the Right Model

• For standard proximity monitoring applications: The 140734-01 (3500/40M) is the correct choice for radial vibration and thrust position monitoring using eddy-current probes .

• For combined proximity and seismic monitoring: Consider the 3500/42M if velocity or acceleration inputs are also required .

• For complete system assembly: Ensure you order the matching 140748-01 rear I/O board along with the monitor .
