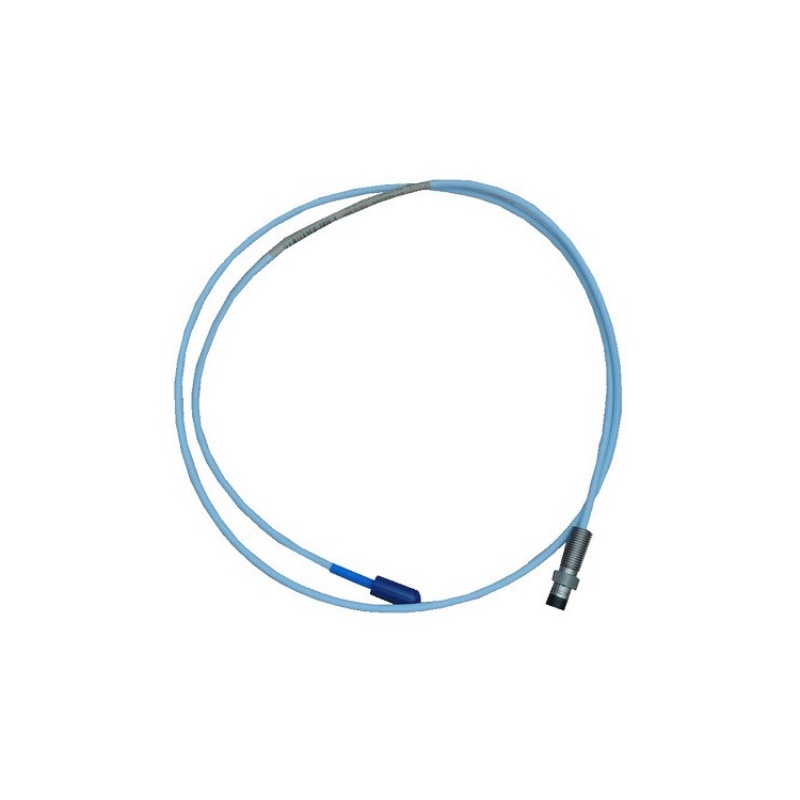

The Bently Nevada 330191-02-10-10-00 is a 3300 XL 8mm ETR (Extended Temperature Range) proximity probe, designed for non‑contact vibration and position monitoring of rotating machinery.
Item No :
330191-02-10-10-00Order(MOQ) :
1 PiecePayment :
EXWProduct Origin :
USAShipping Port :
WuhanLead Time :
3~5 daysWeight :
3kg| Specification | Description |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model | 330191-02-10-10-00 |
| Product Family | 3300 XL 8mm Proximity Transducer System |
| Product Type | ETR Reverse Mount Proximity Probe |
| Probe Mounting | Reverse mount |
| Probe Thread | 3/8-24 UNF |
| Total Cable Length | 2.0 meters (6.6 feet) |
| Probe Tip Diameter | 8 mm |
| Linear Range | 2.0 mm (80 mils) nominal |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Operating Temperature | -51°C to +177°C |
| Agency Approval | Multiple approvals (CSA, ATEX, IECEx) |
| Compatible Extension Cable | 330130 Series |
| Compatible Proximitor Sensor | 330180 Series |
| API Compliance | API 670 |
| Weight | Approx. 0.3 kg (probe) / 1.0 kg (shipping package) |
| Country of Origin | USA |
Part Number Breakdown (330191-02-10-10-00):
| Segment | Value | Meaning |
|---|---|---|
| 330191 | Base model | 3300 XL 8mm ETR reverse mount probe, 3/8-24 UNF thread |
| -02 | Cable length | 2.0 meter total cable length |
| -10 | Agency approval | Multiple approvals (CSA, ATEX, IECEx) |
| -10 | Mounting option | 35 mm DIN rail mounting clip included |
| -00 | Country option | Standard, no country-specific certification |
| Model | Description | Typical Application |
|---|---|---|
| 330191-02-10-10-05 | Same probe with different approval/suffix variant | Applications requiring alternative certification |
| 330191-00-16-10-CN | 3300 XL 8mm ETR probe, 0.0" unthreaded, 1.6" case, 1.0m cable, NEPSI/ATEX/IECEx approved | Chinese/ATEX hazardous area installations |
| 330180-50-00 | 3300 XL Proximitor Sensor, 0.5m system length, panel mount | Required companion sensor for 0.5m transducer systems |
| 330130-040-00-00 | 3300 XL extension cable, 4.0m | Extending probe cable to match Proximitor system length |
| 330101-00-20-10-02-05 | Standard mount 8mm probe, 3/8-24 UNF, 2.0" case, 1.0m cable, hazardous area approved | Traditional mounting alternative to reverse mount |
| 330103-00-07-10-02-05 | Standard mount 8mm probe, M10x1 metric thread, hazardous area approved | Metric mounting alternative |
Q1: What is the primary function of this probe?
It is an eddy‑current proximity probe used for non‑contact measurement of shaft vibration, axial position, and rotational speed on rotating machinery such as turbines, compressors, and pumps. The probe outputs a voltage proportional to the gap between the probe tip and the shaft surface.
Q2: Can this probe operate by itself?
No. The 330191 probe is one component of a complete 3300 XL 8mm Proximity Transducer System. It must be used with the matching 330130 series extension cable and 330180 series Proximitor Sensor. The three components form a calibrated measurement system. Mismatching components can introduce scale‑factor errors and affect measurement accuracy.
Q3: What do the part number segments -10 and -00 mean?
The -10 suffix after the cable length option denotes multiple hazardous area agency approvals (CSA, ATEX, IECEx). The -10 at the end specifies the 35mm DIN rail mounting clip is included. The -00 indicates standard country approval, with no country‑specific certification.
Q4: What are the temperature specifications for this probe?
The probe tip operates from -51°C to +177°C (-60°F to +350°F), making it suitable for high‑temperature applications such as steam turbines and compressors.
Q5: Which Proximitor sensor is required for this probe?
The total electrical length of the probe cable plus extension cable must equal the rated system length of the Proximitor sensor. Since this probe has a 2.0m cable, you must match it with the appropriate Proximitor sensor length (e.g., using a 330180 series sensor configured for the correct total system length). Mismatched components can destroy the 200 mV/mil scale factor.
