The Bently Nevada 330101-00-40-05-02-00 is a non-contact proximity transducer system from the 3300 XL 8 mm series, designed for precision vibration and position measurement in critical rotating machinery. Its core function is to provide a linear output voltage that is directly proportional to the distance between the probe tip and a conductive target, such as a rotating shaft. This measurement is essential for machinery protection and predictive maintenance, enabling the detection of unbalance, misalignment, and bearing wear before they cause catastrophic failure. The system's advanced design offers high performance, interchangeability, and compliance with international standards.
Item No :
330101-00-40-05-02-0Order(MOQ) :
1Payment :
EXWProduct Origin :
USAShipping Port :
Wuhan, Hubei, ChinaLead Time :
3-5 daysWeight :
0.55kgProduct Showroom

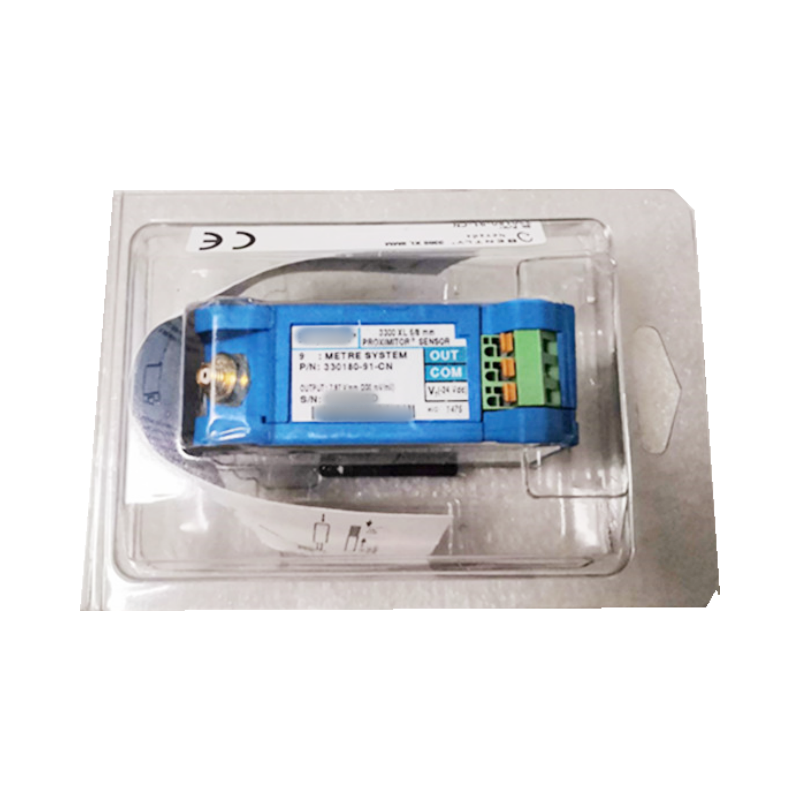

Bently Nevada 330101-00-40-05-02-00
New and Original
More details
|
Country of origin |
USA |
|
Product condition |
New |
|
Warranty |
one year |
|
Payment Method |
T/T, Western Union |
|
Shipping Method |
DHL/FedEX/UPS/TNE/EMS |
Key Parameters
| Item | Specifications / Features |
|---|---|
| Product Type | 3300 XL 8mm Proximity Transducer System |
| Probe Tip Diameter | 8 mm |
| Core Function | Non-contact shaft vibration and position measurement |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Measurement Range | 0 to 2.0 mm (0 to 80 mils) |
| Frequency Response | 0 to 10 kHz |
| System Length | 5.0 meters (16.4 feet) |
| Probe Length | 40mm |
| Operating Temperature | -35°C to +177°C |
| Connector Type | Miniature coaxial ClickLoc™ |
| API Compliance | API 670 Standard (4th Edition) |
| System Platform | Bently Nevada 3300 and 3500 Monitoring Systems |
Complete Interchangeability: The module's standout feature is the complete interchangeability of probes, extension cables, and Proximitor sensors within the 3300 XL 8mm system . This eliminates the need for time-consuming and costly matching or bench calibration of individual components, simplifying maintenance and reducing spare parts inventory .
High Performance and API 670 Compliance: The system delivers advanced eddy-current performance and is fully compliant with the American Petroleum Institute's (API) 670 Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability . This ensures its suitability for the most demanding oil and gas and power generation applications.
Robust Environmental Immunity: The 3300 XL Proximitor sensor offers significantly improved RFI/EMI immunity, satisfying European CE mark approvals without the need for expensive shielded conduit or metallic housings . This allows for installation in fiberglass housings and reduces overall system cost and complexity .
Precision Non-Contact Measurement: Using eddy-current technology, the system provides an accurate, stable output voltage directly proportional to the gap between the probe tip and the target surface . It is capable of both static (position) and dynamic (vibration) measurements, making it ideal for a wide range of monitoring applications .
The 330101-00-40-05-02-00 is used for high-precision non-contact measurement in critical rotating machinery across various heavy industries :
Machinery Protection: Continuous monitoring for vibration and shaft position in turbines, compressors, and pumps .
Condition Monitoring: Providing data for predictive maintenance programs in power generation and oil & gas facilities .
Precision Measurement: Used for Keyphasor®, radial vibration, and thrust position measurements on fluid-film bearing machines .
Q1: What are the physical dimensions of the 330101-00-40-05-02-00?
A: It is an 8mm probe with a 40mm probe length . Some sources also list overall dimensions of 24.3 cm x 4.6 cm x 15.5 cm for the packaged unit .
Q2: What is the sensitivity and measurement range of this system?
A: It has a standard sensitivity of 200 mV/mil (7.87 V/mm) and a linear measurement range from 0 to 80 mils (0 to 2.0 mm) . The linear range typically begins at about 0.25mm (10 mils) from the target .
Q3: What is the significance of the "5.0-meter system" designation?
A: This model is part of a "5.0-meter system," meaning the combined electrical length of the probe, extension cable, and Proximitor sensor is 5.0 meters . The system components are designed to work together at this length. For the system to function correctly, the probe's electrical length plus the extension cable's length must match the Proximitor's electrical length .
Q4: Does the 330101-00-40-05-02-00 require calibration for use?
A: No. A key feature of the 3300 XL 8mm system is the complete interchangeability of its components . This eliminates the need to bench calibrate or match individual probes, extension cables, and Proximitor sensors, simplifying installation and maintenance .
Q5: What is the temperature range for the 3300 XL system?
A: The probe has an operating temperature range of -35°C to +177°C . The Proximitor sensor is rated for -52°C to +100°C .
Q6: What is the primary difference between the 330101-00-40-05-02-00 and other 330101 variants?
A: The variations in model numbers typically denote different probe configurations, such as different probe case lengths, thread sizes, or cable lengths . The "-40" in this specific model indicates a 40mm probe length, and it is a standard 5.0-meter system without hazardous area approvals .
Q7: Are there accessories available for this product?
A: Yes, additional accessories may include a Proximitor mounting bracket (e.g., 3300XL Mounting Bracket for Proximitor) for Proximitor installation .
The 330101-00-40-05-02-00 is part of the broader 3300 XL 8mm Proximity Transducer System family. Below are related models for different system lengths and configurations:
| Product/Model | Type | Brief Description |
|---|---|---|
| 330101-00-40-05-02-00 | Featured Module | 8mm proximity probe, 40mm length, 5.0-meter system, standard configuration . |
| 330101-12-28-05-02-05 | Proximity Probe | 8mm probe with a 2.8-inch body length and 5.0-meter cable . |
| 330105-02-12-10-02-00 | Proximity Probe | 8mm proximity probe, often used in similar applications . |
| 330106-05-30-10-02-00 | Proximity Probe | 8mm proximity probe, another common variant with similar core features . |
| 330130-040-00-05 | Extension Cable | A 4.0m extension cable for the 3300 XL 8mm system . |
For standard 5.0-meter systems: The 330101-00-40-05-02-00 is the exact match for this configuration.
For different probe lengths: Other models like the 330101-12-28-05-02-05 are available with different body lengths .
For extension cables: If you need to extend the system length, select the appropriate 330130-xxx-xx-xx extension cable to match the 5.0-meter system length requirements .
