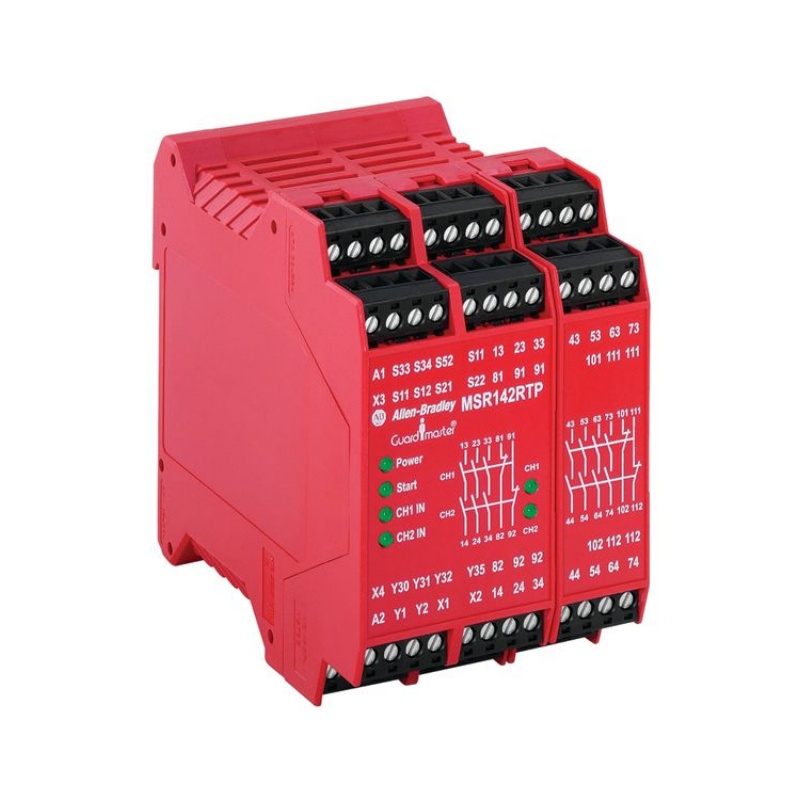

The Allen-Bradley 440R-G23216 is a single-function safety relay from Rockwell Automation's Guardmaster MSR142RTP series, designed to provide reliable, high-performance monitoring for safety-related control systems . Certified to Performance Level e (PLe), Category 4, and SIL CL3, it is ideal for machine safety applications requiring many safety outputs. . It supports flexible reset configurations (automatic/manual or monitored manual) and is used with devices like interlock switches, emergency stop buttons, light curtains, and safety mats.
Item No :
440R-G23216Order(MOQ) :
1Payment :
EXWProduct Origin :
GermanyShipping Port :
Wuhan, Hubei, ChinaLead Time :
3-5 daysWeight :
0.5kgProduct Specification

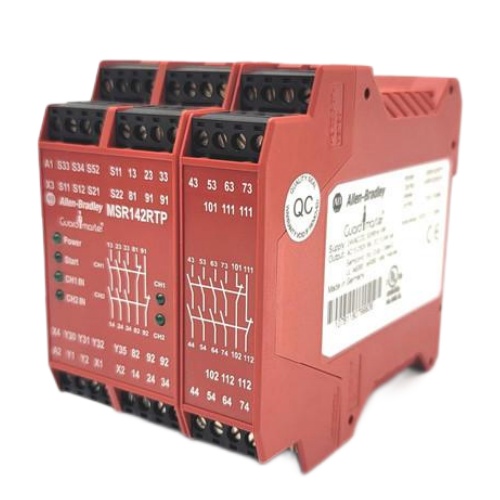

Allen Bradley 440R-G23216 Safety Relay
| Feature | Description |
|---|---|
| High Safety Integrity | Certified to PLe, Cat. 4 per ISO 13849-1 and SIL CL3 per IEC 62061/IEC 61508 for high-risk applications . |
| Flexible Input Configuration | Accepts 1 N.C. or 2 N.C. inputs, or 2 PNP OSSD signals from light curtains or safety mats . |
| High Output Capacity | Features 7 N.O. immediate safety outputs, plus 4 N.C. and 2 PNP solid-state auxiliary outputs . |
| Multiple Reset Modes | Configurable for Automatic/Manual or Manual Monitored Reset to suit different application requirements . |
| Easy Installation | DIN rail mountable with removable screw terminals for simple wiring and maintenance . |
| Global Approvals | CE, cULus, and TÜV certified, ensuring compliance with international safety standards . |
| Parameter | Specification |
|---|---|
| Manufacturer | Allen‑Bradley / Rockwell Automation |
| Catalog Number | 440R-G23216 |
| Relay Model | MSR142RTP |
| Type | Single-Function Monitoring Safety Relay |
| Power Supply | 24V AC/DC (0.85...1.1 x rated voltage) |
| Power Consumption | 5 W max |
| Inputs | 1 N.C. or 2 N.C., or 2 PNP OSSD (Light Curtain/Safety Mat) |
| Safety Outputs | 7 N.O. (immediate) |
| Auxiliary Outputs | 4 N.C. + 2 PNP Solid State |
| Reset Type | Automatic/Manual or Manual Monitored (configurable) |
| Terminals | Removable Screw Clamps |
| Mounting | DIN Rail |
| Enclosure Width | 67.5 mm |
| Enclosure Height | 99 mm |
| Enclosure Depth | 114.5 mm |
| Weight | 0.45 - 0.47 kg |
| IP Rating | IP40 (enclosure), IP20 (terminals) |
| Operating Temperature | -5°C to +55°C |
This relay delivers industry-leading safety performance :
| Parameter | Value |
|---|---|
| Performance Level (PL) | e |
| Category | 4 |
| SIL Capability | CL3 |
| PFH (Probability of Dangerous Failure per Hour) | 290E-09 |
| MTTFd | > 210 years |
| DCavg (Diagnostic Coverage) | 99 % |
The 440R-G23216 is suitable for monitoring a variety of safety devices in industrial applications :
Guard Interlocks: Monitoring 1 N.C. or 2 N.C. contacts on hinged or sliding guards.
Emergency Stop (E-Stop): Monitoring single or dual-channel E-stop pushbuttons.
Light Curtains (OSSD): Direct connection to 2 PNP OSSD outputs from safety light curtains.
Safety Mats: Monitoring 4-wire safety mats .
Process Machinery: Manufacturing, material handling, packaging, and robotics.
Installation: Installation must be performed by authorized and trained personnel only . The device is designed for DIN rail mounting in a control cabinet.
Risk Assessment: Before installation, a risk assessment of the machine must be performed to determine if the relay's specifications are suitable .
Output Fusing: External fusing is required for the safety output contacts: 6 A slow blow or 10 A quick blow is recommended .
Contact Ratings: Safety and auxiliary relay contacts are rated for AC-15 (6 A/250V AC inductive) and DC-13 (3 A/24V DC) . The solid-state PNP auxiliary outputs are short-circuit protected .
Do Not Repair: If any malfunction or damage is present, do not attempt to repair. The unit must be replaced .
Removable Terminals: The screw terminals can be removed to simplify wiring and replacement .
A: It is a single-function safety relay used to monitor safety devices (like E-stops and light curtains) and safely switch off machine power in response to a fault .
A: It is rated up to PLe, Category 4 (per ISO 13849-1) and SIL CL3 (per IEC 62061/61508) .
A: It accepts 1 N.C., 2 N.C., and 2 PNP OSSD signals from devices like light curtains or safety mats .
A: It has 7 N.O. safety outputs, and 4 N.C. plus 2 PNP solid-state auxiliary outputs .
A: The relay is configurable for either Automatic/Manual reset or a Manual Monitored reset .
A: All three catalog numbers (440R-G23214, -G23215, -G23216) are in the MSR142RTP series. The specific configuration differs; the -G23216 model has a 24V AC/DC power supply, 7 N.O. safety outputs, and 4 N.C. + 2 PNP auxiliary outputs, with removable screw terminals
