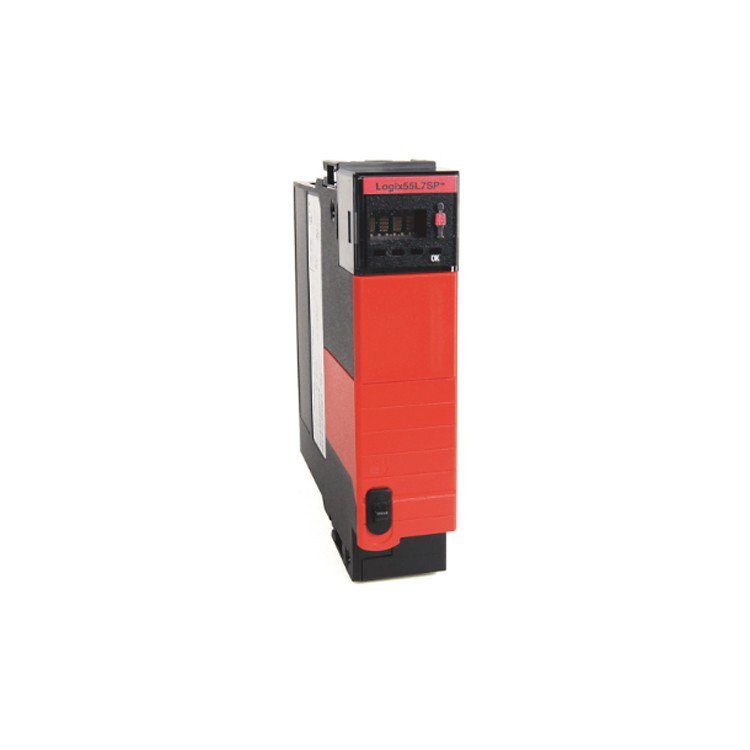

Allen‑Bradley 1756‑L61S GuardLogix® 5560 Safety Controller

Products Description

Allen Bradley 1756-L61S GuardLogix Processor in stock

Key Features

• Dual‑processor safety architecture – rated up to SIL 3 (IEC 61508 / EN 62061) and Category 4 / PL e (EN ISO 13849‑1)

• 2 MB standard user memory – for general control logic and application code

• 1 MB dedicated safety memory – isolated for safety task execution

• 478 KB I/O memory – supports up to 128,000 digital I/O and 4,000 analog I/O

• RS‑232 serial port – programming and communication via 1756‑CP3 or 1747‑CP3 cables

• Conformal coating – protects against humidity, contaminants, and corrosive environments for extended product life

• 2‑slot width – mounts in any slot of a 1756 ControlLogix chassis; requires 1756‑LSP safety partner in the slot immediately to the right

• Compatible chassis – 1756‑A4, ‑A7, ‑A10, ‑A13, ‑A17

• Programming software – RSLogix 5000 (version 18 or later) / Studio 5000 Logix Designer®

Technical Specifications

Safety Certifications

The 1756‑L61S GuardLogix controller has been type‑approved and certified for use in safety applications up to:

• SIL 3 per IEC 61508 / EN 62061

• Category 4 / PL e per EN ISO 13849‑1

• Meets requirements of the EU Machinery Directive 2006/42/EC

System Integration Notes

• Safety Partner Required: The 1756‑L61S must be used with a 1756‑LSP safety partner module. The primary controller and safety partner must be installed in adjacent slots (primary on the left, partner on the right) with identical firmware versions .

• No Built‑in Ethernet: This processor has no embedded Ethernet port. Use 1756‑ENBT or 1756‑EN2T communication modules for EtherNet/IP connectivity .

• Network Support: Supports DeviceNet, ControlNet, and EtherNet/IP via appropriate communication modules .

• Firmware Updates: Use ControlFLASH software (version 8 or later) for firmware upgrades .

Applications

The 1756‑L61S is ideal for complex safety applications requiring both standard and safety control, including:

• Machine safety systems (presses, conveyors, robotics)

• Process safety interlocks

• Safety zone control with zone‑specific shutdown

• Integrated motion control with safety monitoring

• Systems requiring SIL 2, SIL 3, or PL e / Category 4 performance levels

Real‑world benefit: In automotive body line applications, converting to GuardLogix‑based safety control helped achieve a 70% reduction in safety‑related downtime by enabling zone‑specific shutdown and simplified troubleshooting .
