Allen‑Bradley 2090‑CFBM7DF‑CEAF15 Kinetix Feedback Cable

Product Specification

Allen‑Bradley 2090‑CFBM7DF‑CEAF15 Kinetix Feedback Cable

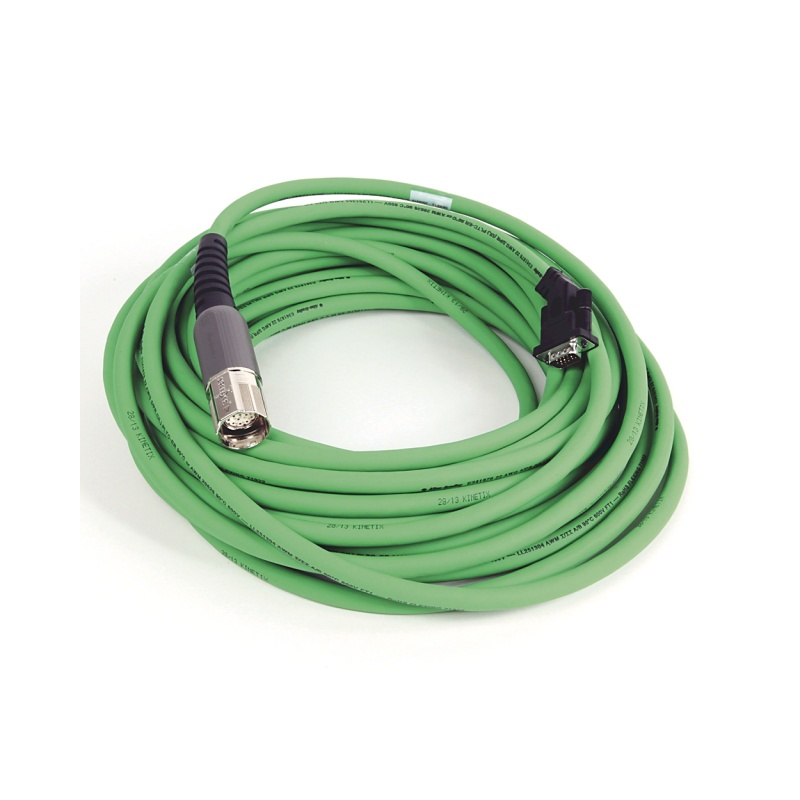

15‑Meter Continuous‑Flex Feedback Cable with SpeedTEC Connector

Brand Name: Allen Bradley

Product Name: 2090-CFBM7DF-CEAF15

Place of Origin: USA

Warranty: 1Year

About Us

SWAN Electric is a supplier of industrial automation spare parts located in China.We specialize in PLC modules,Analog I/O

module,power supply,HMI touchscreen panel, discontinued spare part,cable CPU processor, Servo-drive,Inverter,Base terminal unit,Communication

Module,Switch Module,control board. At the same time, we have established close cooperative relationships with multiple PLC and DCS product

maintenance service providers.

Key Features & Benefits

• Continuous‑Flex Rating: Suitable for 20 million flex‑cycles in linear flexing applications and 10 million cycles in bending (tic‑toc) applications, making it ideal for cable tracks and robotic arms where cable motion is constant.

• Single‑Cable Design: Combines feedback, power, and brake conductors in one rugged shielded cable, reducing cable count, panel space, and installation time.

• SpeedTEC Connection System: Motor‑end SpeedTEC DIN connector provides ¼‑turn quick connections with positive metallic keying, eliminating the need for tools and reducing installation time.

• Drive‑End Flying Leads: Pre‑terminated flying leads at the drive end provide easy integration into control cabinets; optimized lead length for Kinetix 5500 and Kinetix 5700 drives.

• Superior Noise Rejection: Encoder communication data pair with state‑of‑the‑art noise rejection ensures clean feedback signals in electrically noisy industrial environments.

• 100% EMC Shield Coverage: Overall tinned copper braid with aluminum/polyester tape provides 100% coverage for excellent electromagnetic compatibility/electromagnetic interference performance.

• DESINA Compliant: Green jacket color for feedback cables (DESINA standard) enables easy identification and separation from orange power cables in machine wiring.

• Industry Certifications: NFPA‑79 compliant; UL Listed PLTC‑ER (Power‑Limited Tray Cable, Exposed Run) for cable tray and exposed run applications; CSA AWM I/II A/B, 600V, 90°C construction.

• Included in Rockwell Declaration of Conformity: Cable included in the Rockwell Automation servo system DoC, ensuring system‑level compliance.

Technical Specifications

Part Number Breakdown

Understanding the catalog number ensures correct selection:

System Compatibility

Important: This cable is designed for motors with separate power/brake and feedback cables (e.g., MP‑Series with 2090‑CPxM7DF power cables). It is not a single‑cable DSL solution—it provides feedback only; power must be supplied via a separate 2090‑CPxM7DF cable.

Applications

The 2090‑CFBM7DF‑CEAF15 is deployed in motion control applications requiring continuous cable flexing:

Typical Use Cases:

• Cable Track Installations: Where cable moves continuously with the machine axis

• Robotic Applications: Where cable undergoes reverse bending (tic‑toc) motion

• High‑Speed Motion Systems: Where standard non‑flex cables would fail prematurely

Installation Notes

• Minimum Bend Radius: Follow continuous‑flex cable guidelines—consult the 2090 series cable specification for detailed radius requirements.

• Shield Termination: The tinned copper braid shield must be properly terminated to the drive/motor ground to maintain EMC performance. Ensure a 360° connection of the shield at both ends.

• Cable Routing: Do not route alongside high‑voltage power cables to avoid interference. The cable's excellent noise rejection minimizes but does not eliminate the need for proper separation.

• Third‑Party Cables: Third‑party cables or modifications to factory‑delivered cables are not recommended and may void system compliance.
