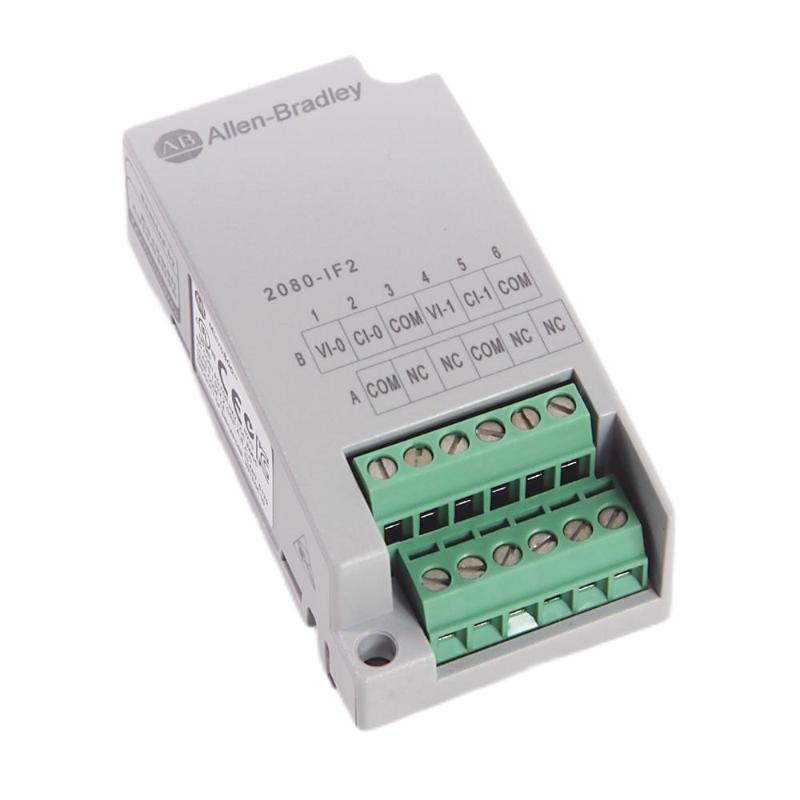

Q1: Which Micro800 controllers are compatible with the 2080-IF2?
The 2080-IF2 is designed for the Micro800 family, including the Micro820, Micro830, Micro850, and Micro870 controllers. It plugs directly into any available slot on the controller's housing.
Q2: Can I use both voltage and current inputs on the same module?
Yes, each of the two channels is independently configurable. You can set one channel for voltage (0-10V) and the other for current (0-20mA) through the Connected Components Workbench software.
Q3: Is the module isolated?
No, the 2080-IF2 module is non-isolated. It does not provide isolation between the input channels or between the inputs and the controller bus. Proper wiring practices and grounding are essential.
Q4: What is the module's data range and resolution?
The module provides a raw data value from 0 to 65,535 (12-bit resolution). For a voltage input, 0 equals 0V and 65,535 equals 10V; for a current input, 0 equals 0mA and 65,535 equals 20mA.
Q5: Does the module support HART communication or thermocouple inputs?
No, the 2080-IF2 is a standard analog input module and does not support HART protocol or direct thermocouple connections. For thermocouple applications, refer to the 2080-TC2 module.
