The ABB SDCS-CON-F01 (3ADT316500R1501) is the main control board central to the computational architecture of the ABB DCS550 and DCS600 series DC drive systems. This advanced microprocessor-based card functions as the "brain" of the drive, handling critical real-time regulation loops for speed, torque, and current.
Designed to replace or serve as a spare for the original SDCS-CON-F, the "-F01" revision offers enhanced reliability, faster fault response, and improved compatibility with modern system firmware.
Item No :
SDCS-CON-F01Order(MOQ) :
1Payment :
EXWProduct Origin :
SwedenShipping Port :
Wuhan, Hubei, ChinaLead Time :
3-5 daysWeight :
0.5kgProducts Description

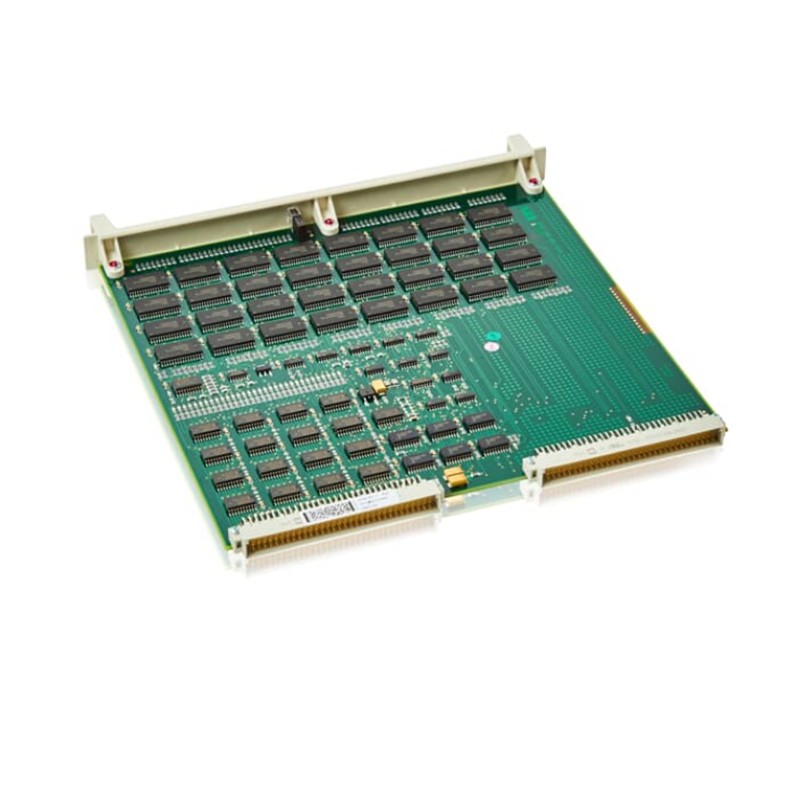

ABB SDCS-CON-F01 3ADT316500R1501 Control Board
Main Control Board for DCS550 and DCS600 Drive Systems
| Model Number | SDCS-CON-F01 3ADT316500R1501 |
| Place of Origin | Sweden |
| Dimension/Weight | 9.6*11.9*5.4cm / 0.5kg |
| Condition | New and Original |
| Warranty | 1 year |
| Shipping term | DHL Fedex TNT EMS UPS |
| Payment | TT / Western Union |
| Delivery time | 3-5 days |
| Service | 24 Hours Online Service |
Central Processor Core: Manages real-time regulation loops for speed, torque, and current within the drive system, executing high-speed computational and gating vector configurations
Flash PROM Memory: Stores firmware and configuration parameters; parameter changes are immediately saved to flash memory for persistent retention
Integrated Diagnostics Display: Features a 7-segment display that shows the converter status, including error and alarm codes for quick troubleshooting
Enhanced Watchdog Function: Monitors both the board and its firmware; upon detecting a malfunction, it safely disables thyristor firing, forces digital inputs low, and resets analog outputs
Flat Cable Interfacing: Connects to the SDCS-PIN-F power interface board via X12 and X13 for voltage, current, and temperature measurement, and through X37 for power supply
Flash Upgradeable Firmware: The board receives firmware updates via the drive software; status indicators during upload show progress
Wide Operating Temperature: Rated from 0°C to +60°C, suitable for demanding industrial environments
ESD Protection: Electrostatic discharge (ESD) precautions must be observed during installation and handling
| Category | Specification |
|---|---|
| Manufacturer | ABB |
| Model Number | SDCS-CON-F01 |
| Order Number | 3ADT316500R1501 |
| Product Type | Drive Control Board |
| Compatible Systems | DCS550 Series DC Drives, DCS600 System |
| Display | 7-Segment Status Display (H2500) |
| Interfaces | X12, X13 (to SDCS-PIN-F), X37 (power supply) |
| Memory | Flash PROM (stores firmware and config) |
| Watchdog | Integrated internal watchdog function |
| Weight | ~0.399 kg |
| Dimensions | 260 x 180 x 45 mm |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Protection Rating | IP20 |
| Country of Origin | Sweden / Finland |
| Customs Tariff Code | 85371098 |
The board is equipped with a 7-segment display that communicates operational status and faults:
| Display | Meaning |
|---|---|
| 0.7s cycling dots | Firmware is running; no errors or alarms |
| E01 - E06 | Startup errors (e.g., flash checksum error, ROM/RAM test failures, hardware incompatibility, watchdog timeout). These prevent drive startup |
| Fxxx | Fault codes during operation (e.g., F514 "Network not synchronized"). Check drive manual for full fault list |
The SDCS-CON-F01 installs on the drive's electronic tray, which is hinged into the housing for easy access. It interfaces with the SDCS-PIN-F power interface board via flat cables:
X12 and X13: Voltage, current, and temperature measurement connections
X37: Power supply connection to the SDCS-PIN-F
Parameter management is performed using DriveWindow (DWL) or an overriding control interface
Parameters in groups 90-92 are cyclic communication parameters; changes are stored in flash memory except for pointers in group 51
Fault logger entries are securely stored in flash memory when auxiliary power is de-energized
Grounding: The control board's grounding tabs must maintain bare metal contact with the chassis to establish an absolute zero-potential reference plane
Wiring: All low-voltage signal wiring must be physically separated from high-power cables to prevent electromagnetic interference
Cooling: Ensure proper enclosure ventilation to prevent thermal issues
The SDCS-CON-F01 is deployed across demanding industrial sectors requiring precision DC motor control:
| Industry | Application |
|---|---|
| Metals & Mining | Main drives for rolling mills, wire drawing machines, mine hoists, and conveyors |
| Pulp & Paper | Section drives and tension control in paper machines |
| Plastics & Rubber | Extruder and internal mixer control |
| General Automation | Variable speed DC motor control in conveyors and processing equipment |
| Detail | Information |
|---|---|
| Condition | New & Original |
| Stock Status | In Stock |
| Warranty | 12 Months |
| Shipping | Fast dispatch upon order confirmation |
