The ABB SDCS-CON-4 (3ADT313900R1501) is the main control board and the "digital brain" of the ABB DCS800 series DC drives . It is responsible for executing control algorithms, managing communication, generating PWM pulses for the thyristor bridge, and providing comprehensive drive protection. As a fourth-generation control platform, it delivers precision motor control and dynamic response for applications ranging from 10 kW to multi-megawatt installations.
Item No :
SDCS-CON-4Order(MOQ) :
1Payment :
EXWProduct Origin :
SwedenShipping Port :
Wuhan, Hubei, ChinaLead Time :
3-5 daysWeight :
0.5kgProducts Description

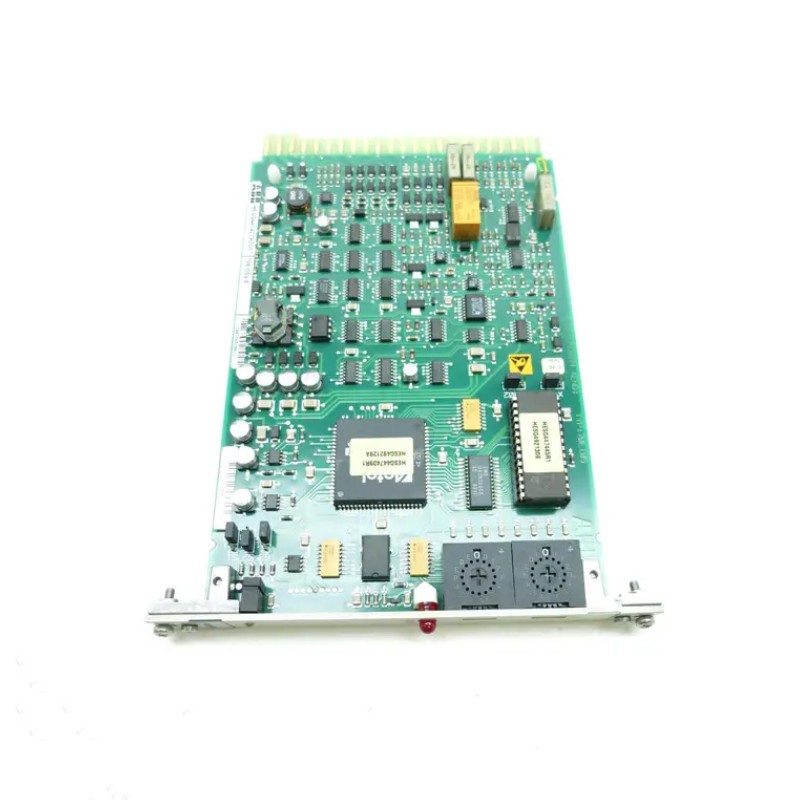

ABB SDCS-CON-4 3ADT313900R1501 Control Board
Main Control Board for DCS800 DC Drives
| Model Number | SDCS-CON-4 3ADT313900R1501 |
| Place of Origin | Sweden |
| Dimension/Weight | 9.6*11.9*5.4cm / 0.2kg |
| Condition | New and Original |
| Warranty | 1 year |
| Shipping term | DHL Fedex TNT EMS UPS |
| Payment | TT / Western Union |
| Delivery time | 3-5 days |
| Service | 24 Hours Online Service |
Core Control for DCS800 Drives: Serves as the central processing unit for the DCS800 series, managing speed, torque, voltage, and current regulation
High-Performance 32-bit Processor: Equipped with an ARM9 or 32-bit industrial-grade microprocessor for fast, precise control with a control cycle of ≤50 μs
Extensive On-Board I/O: Features 8 digital inputs, 8 digital outputs, 4 analog inputs, and 4 analog outputs, reducing the need for additional I/O modules
Multiple Communication Protocols: Supports Profibus DP, Modbus RTU (RS-232/RS-485), Ethernet, and optional Ethernet/IP via expansion modules for seamless integration with PLC, DCS, and SCADA systems
High-Precision Control: Delivers ±0.01% speed regulation and <10 ms torque response time, ideal for high-performance applications like steel rolling mills and paper machines
Removable Memory Card: Retains firmware, application macros, and motor parameters; simply move the memory card to a replacement board to avoid re-commissioning during maintenance
Comprehensive Protection: Built-in protection against overcurrent, overvoltage, undervoltage, overtemperature, stall, phase loss, overload, and communication loss
Hot-Swap Prohibition: Must be installed and removed only after complete power isolation to prevent damage; anti-static precautions required
| Category | Specification |
|---|---|
| Manufacturer | ABB |
| Model Number | SDCS-CON-4 |
| Part Number | 3ADT313900R1501 |
| Product Type | Main Control Board |
| Compatible Systems | ABB DCS800 Series DC Drives |
| Processor | ARM9 32-bit or 32-bit floating-point microprocessor |
| Memory | 128 MB SDRAM, non-volatile program storage |
| Power Supply | 24 V DC ±20% (supplied by SDCS-POW-4) |
| Power Consumption | Approx. 10–15 W typical |
| Digital Inputs | 8 channels, galvanically isolated via optocouplers, 24–48V DC |
| Digital Outputs | 8 transistor output channels |
| Analog Inputs | 4 differential inputs (±10V, 0-20mA, 4-20mA configurable) |
| Analog Outputs | 4 outputs |
| Communication Interfaces | Profibus DP, Modbus RTU (RS-232/RS-485), Ethernet |
| Control Modes | Speed, torque, voltage, current regulation; PID, dual closed-loop (current/speed) |
| Control Cycle | ≤50 μs |
| Sampling Frequency | Current/voltage ≥20 kHz |
| Encoder Interface | Incremental encoder (A/B/Z), resolver, or tachometer input |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Protection Rating | IP20 |
| Weight | Approx. 0.38–1.0 kg depending on configuration |
| Certifications | CE, UL, cUL, meets IEC 61800-3 |
| Country of Origin | Finland / Sweden |
The SDCS-CON-4 board excels in demanding applications requiring precise DC motor control with high reliability :
| Industry | Application |
|---|---|
| Steel & Metallurgy | Main drive control for reversing cold rolling mills (±0.1% speed regulation), winders, unwinders, and roll drives |
| Paper & Pulp | Section drive coordination in multi-section paper machines, maintaining tension control across reels, press sections, and dryer sections |
| Rubber & Plastics | Controlling large internal mixers (Banbury mixers) and high-output extruders during initial raw material mixing |
| Mining | Hoist drum control for mine shafts with four-quadrant operation and regenerative braking |
| Oil & Gas | Drawworks, mud pump, and rotary table control on drilling rigs |
| Marine | Thruster and winch control on offshore vessels |
| Cement | Rotary kiln main drive DC motor control under continuous low-speed, high-friction conditions |
The SDCS-CON-4 board installs in a dedicated slot inside the DCS800 drive housing, linking with the power interface board (SDCS-PIN-4) and fieldbus adapters through a high-speed backplane . It communicates with gate driver circuits, current sensors, and auxiliary power supplies to coordinate field excitation and armature control .
Parameter configuration is performed through ABB's DriveWindow 2 software, which provides guided wizards for motor identification, PID tuning, and I/O mapping . The board supports auto-tuning routines that measure motor inductance, resistance, and inertia to automatically optimize control loop gains .
For networked installations, the board supports multi-drive coordination via PROFIBUS DP V1, enabling master-follower configurations for synchronized section drives or electronic line shafting .
Please verify compatibility before ordering. Some sources indicate this board is also used in DCS500 and DCS600 series drives, while others specify DCS800 only . Please confirm your drive model and firmware requirements prior to purchase .
| Detail | Information |
|---|---|
| Condition | New & Original |
| Stock Status | In Stock |
| Warranty | 12 Months |
| Shipping | Fast dispatch upon order confirmation |
