ABB EI803F 3BDH000017R1 Ethernet Module

Products Description

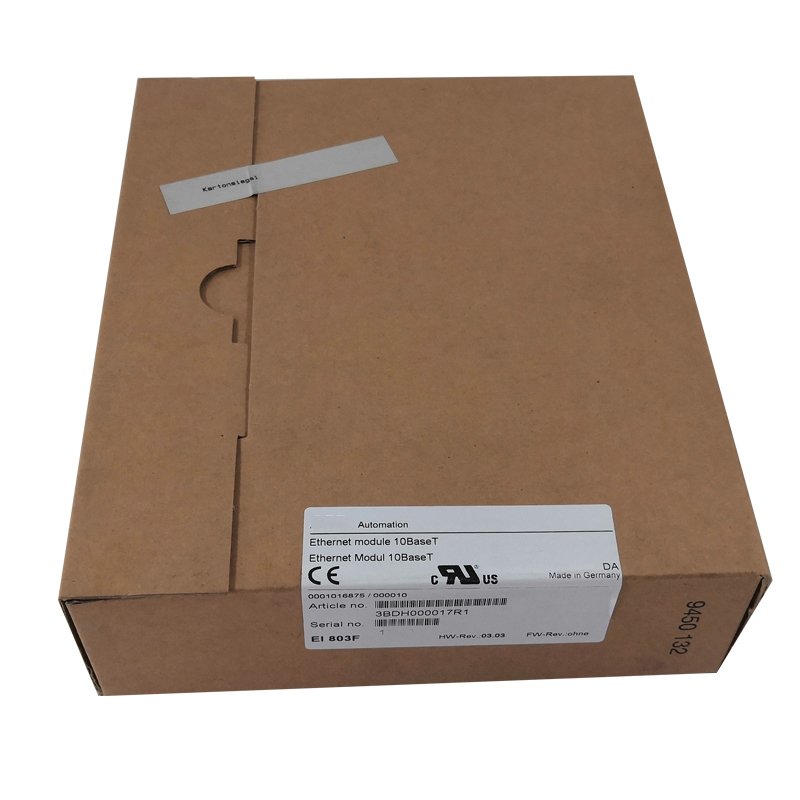

ABB EI803F 3BDH000017R1 Ethernet Module in stock

Key Parameters

Core Features & Advantages

• Multi-Protocol Support and Real-Time Communication: The module's standout feature is its support for multiple industrial protocols, including Modbus/TCP, EtherNet/IP, and PROFINET IO (with system software version 0.251 or higher) . This versatility ensures seamless integration with a wide range of field devices and control systems, enabling real-time data packet processing for deterministic networks .

• High Reliability and Industrial Design: Designed for harsh industrial environments, the EI803F features a wide operating temperature range (-20°C to +60°C) and robust EMC protection . Its compact, single-slot design and backplane power supply simplify installation and maintenance .

• Efficient Data Processing: The module is equipped with an independent communication processor and 8MB of RAM and Flash memory, which allows it to handle network data without overloading the main controller CPU . This offloading capability ensures stable system performance and fast communication response times .

• Easy Integration and Diagnostics: The EI803F supports hot-swap replacement to minimize system downtime . Front-panel LEDs provide clear diagnostics for power, link status, and communication faults, allowing for rapid on-site troubleshooting .

Typical Applications

The EI803F is widely used for Ethernet communication in process and heavy industries, including:

• Power Generation: Boiler and turbine control networks in thermal power plants .

• Oil & Gas: Refineries and petrochemical plants for cross-system data integration .

• Water & Wastewater Treatment: Distributed process monitoring and SCADA system connectivity .

• Metallurgy and Mining: High-frequency data acquisition from production lines and remote equipment .

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the EI803F?
A: It provides a high-speed Ethernet communication link for ABB AC 800F and Advant DCS systems, enabling data exchange between controllers, operator stations, and SCADA systems .

Q2: What protocols does the module support?
A: It supports Modbus TCP, EtherNet/IP, and PROFINET IO (requires system software v0.251 or higher) , as well as TCP/IP and SNMP .

Q3: Is the module hot-swappable?
A: Yes, the EI803F supports online replacement to reduce system downtime .

Q4: What are the power requirements?
A: The module requires a 24 V DC power supply from the backplane .

Q5: Is the EI803F still in production?
A: According to multiple sources, the EI803F is a discontinued product, but it remains available in stock through various suppliers .

Q6: Can it be used as a direct replacement for the EI802F?
A: While the hardware is generally backward compatible, you may need to reconfigure the hardware list in the Freelance software to account for any performance differences .

Recommended Models & Related Products

The EI803F is part of ABB's Ethernet communication module family. Below are key related products for similar or alternative communication needs:

Choosing the Right Model

• For AC 800F systems: The EI803F is the standard Ethernet interface module for this platform, supporting multiple industrial protocols .

• For S800 I/O integration: The CI845 is the recommended Ethernet Fieldbus Communication Interface (FCI) for S800 on Ethernet and Select I/O solutions .

• For higher data rates: The EI813F may offer enhanced performance for specific communication requirements .
