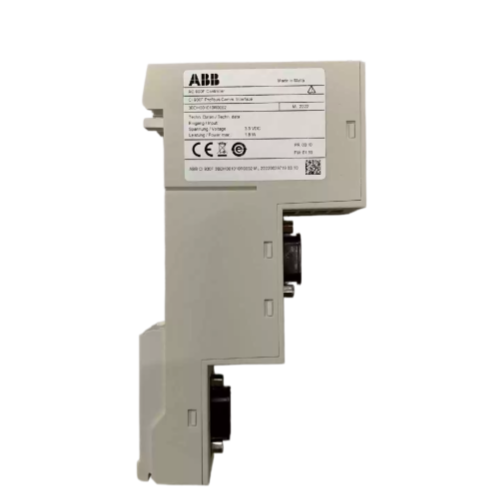

ABB CI930F 3BDH001010R0002 Communication Interface Module

Products Description

ABB CI930F 3BDH001010R0002 controller Module for rack I/O in stock

Key Parameters

Core Features & Advantages

• High-Speed, Deterministic PROFIBUS DP Communication: The module's standout feature is its support for PROFIBUS DP-V0/V1 with speeds up to 12 MBit/s . This ensures fast and deterministic data exchange with field devices, which is critical for time-sensitive control loops .

• PROFIBUS Line Redundancy for High Availability: The CI930F supports PROFIBUS line redundancy, enabling a redundant communication path . If one PROFIBUS line fails, the module automatically switches to the redundant line, ensuring uninterrupted communication and maintaining system uptime .

• Hot-Swap Capability for Easy Maintenance: The module supports hot-swapping, allowing for online replacement without shutting down the system . This is essential for continuous processes where maintenance must be performed without interrupting operations .

• Seamless Integration with AC 900F: As a native module for the Freelance AC 900F controller, it requires only one coupler bus slot on the CPU module and draws power directly from the 24 V terminal of the host CPU, simplifying installation .

• Robust Industrial Design: The module is built for harsh industrial environments, with an operating temperature range of -20°C to +70°C and G3 corrosion protection (ISA 71.04), ensuring reliable performance in demanding conditions .

Typical Applications

The CI930F is a core component for PROFIBUS network integration in process and heavy industries using the Freelance AC 900F system :

• Process Automation: Connecting PROFIBUS DP field devices (e.g., pressure transmitters, flow meters, valve positioners) in chemical, oil & gas, and pharmaceutical plants.

• Factory Automation: Interfacing with drives, motor starters, and remote I/O on production lines and material handling systems .

• Power Generation: Integration with boiler and turbine control systems and balance-of-plant equipment .

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the CI930F?
A: It serves as the PROFIBUS DP master communication interface for the Freelance AC 900F controller, enabling connection to field devices over PROFIBUS DP .

Q2: What is the difference between CI930F, CM772F, and CI773F?
A: The CI930F is the recommended PROFIBUS DP master module for AC 900F, supporting line redundancy . The CI773F is also a PROFIBUS DP master for AC 700F and AC 900F but does not support line redundancy . The CM772F is another PROFIBUS interface option .

Q3: Does the CI930F support PROFIBUS line redundancy?
A: Yes, the CI930F supports PROFIBUS line redundancy, providing high availability for mission-critical networks .

Q4: Is the module hot-swappable?
A: Yes, the CI930F supports hot-swapping, allowing replacement without system shutdown .

Q5: What are the software requirements for this module?
A: The module requires Freelance software version 2013 or higher for proper operation .

Q6: What is the maximum PROFIBUS transmission speed?
A: The module supports speeds from 9.6 kBit/s up to 12 MBit/s .

Q7: What are the typical power requirements?
A: The module consumes 1.8 W with a typical current draw of 80 mA via the 24 V terminal of the host CPU module .

Q8: What is the current lifecycle status of the CI930F?
A: According to the official ABB hardware selector, the CI930F (3BDH001010R0002) is Active .

Recommended Models & Related Products

The CI930F is part of ABB's Freelance AC 900F communication module family. Below are key related models for similar or alternative communication needs:

Choosing the Right Model

• For new AC 900F PROFIBUS networks: The CI930F is the recommended choice, providing line redundancy and high-speed communication.

• For systems requiring line redundancy: The CI930F is specifically designed with this feature.

• For CANopen/DeviceNet connectivity: Consider the CI910F module.
