SIMOREG_DC-MASTER

The Siemens C98043-A7010-L2-5 is a Field Excitation Power Board designed for the SIMOREG DC-MASTER 6RA70 series of DC drives. This module serves as the core power supply and control unit for the DC motor's field winding, providing stable and precisely regulated excitation current to maintain a consistent magnetic field in the motor.

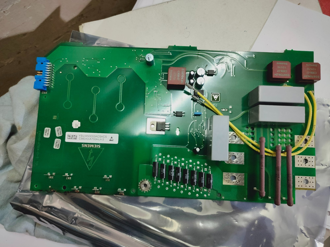

The Siemens 6RY1703-0CA04 is a Power Section Board designed for the SIMOREG DC-MASTER 6RA70 series of DC drives. This board serves as a critical power interface module, managing the electrical power distribution between the control unit and the motor.

The Siemens C98043-A7002-L1 is a Power Interface Board (PIB) for the SIMOREG DC-MASTER 6RA70 drive series. It serves as the essential hardware link between the drive's digital control unit (CUD1) and the thyristor power section, performing three core tasks: generating precisely-timed firing pulses, monitoring the power section for faults, and acquiring analog measurement signals for closed-loop control.

The Siemens C98043-A7006-L1 is a terminal expansion board (CUD2) for the SIMOREG DC-MASTER drive family. It mounts onto the basic CUD1 electronics board to provide additional I/O capabilities, including binary and analog inputs/outputs, a motor temperature sensor interface, and a serial interface.
