3300 XL 8mm Proximity Probe

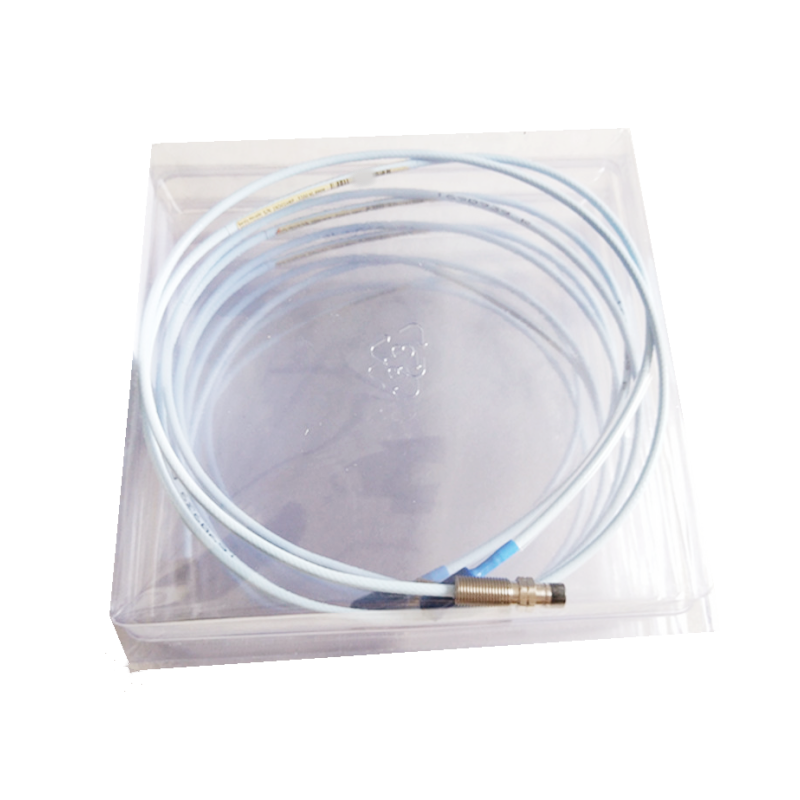

The Bently Nevada 330701-00-10-10-11-05 is a 3300 XL Extension Cable designed for use with the 3300 XL 8mm Proximity Probe System. It extends the connection between the proximity probe and the Proximitor sensor, enabling flexible system installation.

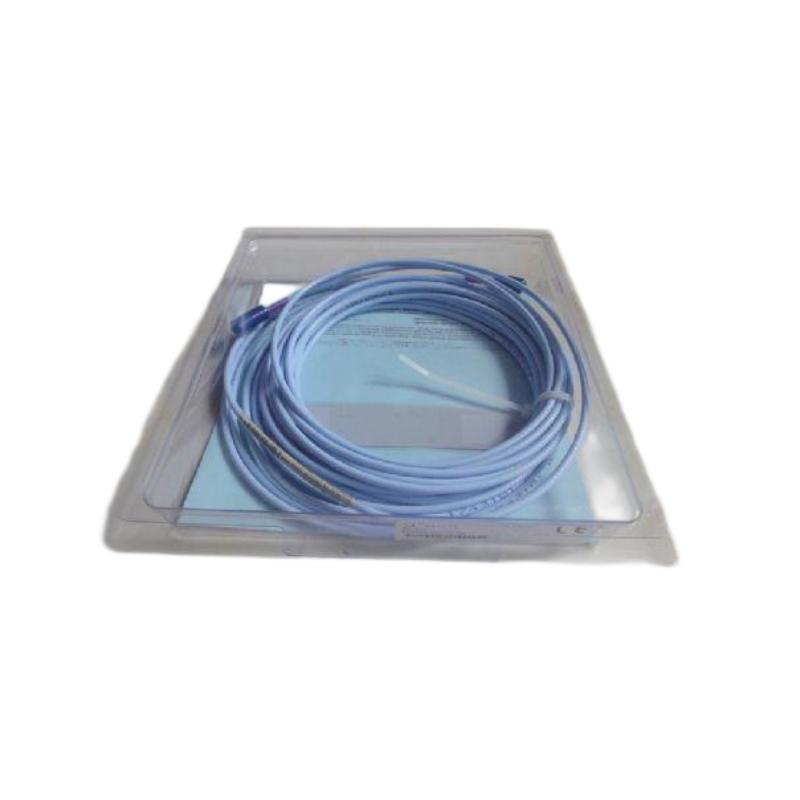

The Bently Nevada 330101-00-35-10-11-05 is a non-contact eddy-current proximity probe from the 3300 XL 8 mm series, manufactured by Baker Hughes (Bently Nevada). Its core function is to measure shaft vibration and axial position on critical rotating machinery, such as turbines and compressors. It delivers a voltage output proportional to the gap between the probe tip and a conductive target surface, enabling both static (position) and dynamic (vibration) measurements.

The Bently Nevada 330103-00-13-05-02-00 is an 8 mm proximity probe from the industry-standard 3300 XL series, engineered for precise non-contact measurement of static (position) and dynamic (vibration) displacement in rotating machinery . It is the M10 × 1 metric-threaded, unarmored variant with a 130 mm extended case length, designed for deep-seated shafts and structural clearances where standard-length probes cannot reach . This probe is part of the 3300 XL proximity transducer system, which consists of a probe, an extension cable, and a Proximitor® sensor. All system components are fully interchangeable without the need for matching or bench calibration, provided the total system length is maintained .

The Bently Nevada 330103-00-05-10-11-05 is a hazardous-area certified 8 mm proximity probe from the industry-standard 3300 XL series. It is the M10 × 1 metric-threaded, compact variant with a FluidLoc chemical-resistant cable, specifically engineered for installation in confined spaces within explosive atmospheres . This probe is part of the 3300 XL proximity transducer system, which consists of a probe, an extension cable, and a Proximitor® sensor. All system components are fully interchangeable without the need for matching or bench calibration, provided the total system length is maintained .

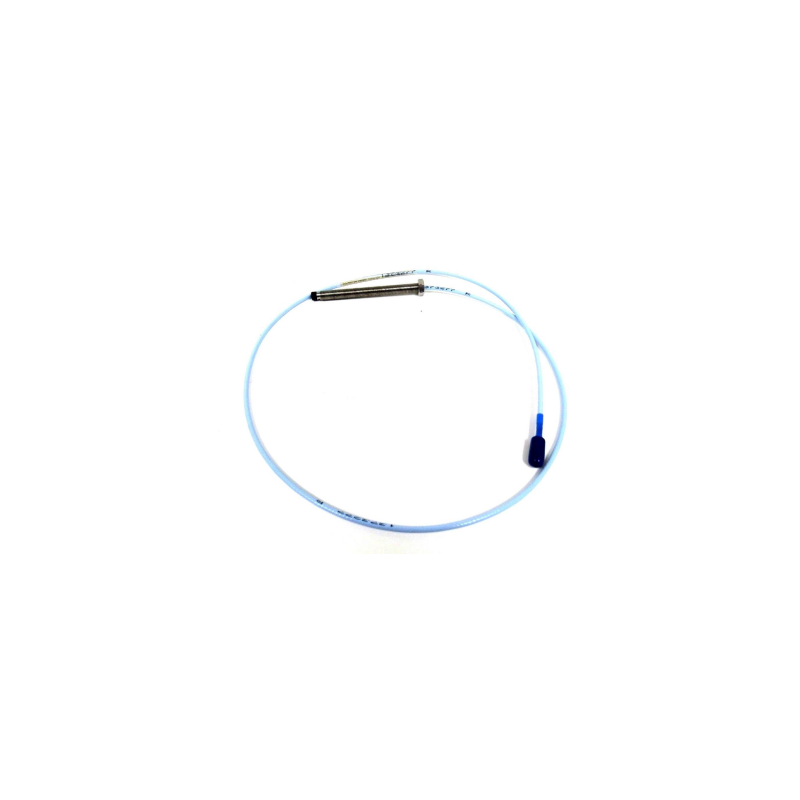

The Bently Nevada 330101-00-38-90-02-00 is an 8 mm proximity probe from the industry-standard 3300 XL series, engineered for precise non-contact measurement of static (position) and dynamic (vibration) displacement in rotating machinery . It is the 3/8-24 UNF threaded, unarmored variant with a 9.0 meter total length, designed for reliable installation in fluid-film bearing machines such as steam turbines, centrifugal compressors, and high-speed gearboxes . This probe is part of the 3300 XL proximity transducer system, which consists of a probe, an extension cable, and a Proximitor® sensor. All system components are fully interchangeable without the need for matching or bench calibration, provided the total system length is maintained .

The Bently Nevada 330101-00-16-10-02-00 is an 8 mm proximity probe from the industry-standard 3300 XL series, engineered for precise non-contact measurement of static (position) and dynamic (vibration) displacement in rotating machinery. It is the 3/8-24 UNF threaded variant without armor, designed for reliable installation in fluid-film bearing machines such as steam turbines, centrifugal compressors, and high-speed gearboxes. This probe is part of the 3300 XL proximity transducer system, which consists of a probe, an extension cable, and a Proximitor® sensor. All system components are fully interchangeable without the need for matching or bench calibration, provided the total system length is maintained.

The Bently Nevada 330102-00-20-10-02-00 is a high-precision 8 mm eddy current proximity probe from the 3300 XL series, manufactured by Baker Hughes (Bently Nevada). Its core function is to provide non-contact displacement and vibration measurement for critical rotating machinery, including turbines, compressors, and pumps. The probe delivers a voltage output proportional to the distance between the probe tip and a conductive target surface, enabling both static (position) and dynamic (vibration) measurements.
