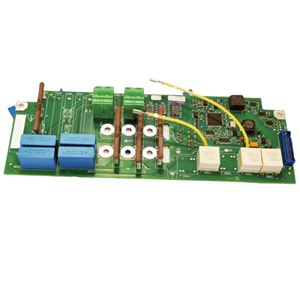

Siemens C98043-A7115-L12-7 Field Supply / Firing Board

Key Features

• Original Siemens Spare Part – Manufactured to OEM specifications for exact form, fit, and function compatibility

• Precise Thyristor Firing – Generates accurate gate pulses for controlled rectifier operation and DC motor regulation

• Enhanced Noise Immunity – The L12 generation uses magnetic isolation transformers with on-chip dynamic compensation, delivering significantly better common-mode tolerance than earlier base variants

• Broad Drive Platform Compatibility – Used in SIMOREG 6RA70 and 6RA80 DC drives, and also found in SINAMICS DCM systems

• Active Spare Availability – Widely stocked in the industrial automation aftermarket for fast repair turnaround

Technical Parameters

Core Advantages

1. Original Quality with Precise Firing

The board is manufactured to strict Siemens OEM standards and is responsible for generating thyristor firing pulses that ensure precise regulation of DC motor voltage and current. Its design meets industrial-grade signal integrity requirements, maintaining stable firing timing even in complex electromagnetic environments.

2. Enhanced Interference Immunity

The L12 variant uses magnetic isolation transformers at the input stage combined with on-chip dynamic compensation circuitry. Measured common-mode tolerance is significantly better than that of earlier base variants in the same series. In production lines with dense variable-frequency drive installations, this design dramatically reduces the risk of false triggering and supports continuous, stable drive operation.

3. Broad Drive Platform Compatibility

This board is primarily used in Siemens SIMOREG 6RA70 and 6RA80 series DC drives, and may also serve as a spare for SINAMICS DCM and other DC drive systems. It is a key component for maintaining a wide range of Siemens DC drive equipment in service.

4. Fast Supply Assurance

As an active spare part, this product circulates widely in the industrial automation repair market with ample stock availability, enabling rapid response to maintenance requirements.

Applications

This field supply / firing board is widely deployed in industrial applications using Siemens DC drive systems:

Recommended Models

What's Included

• 1 × Siemens C98043-A7115-L12-7 Field Supply / Firing Board

Note: Drive unit, power section components, and wiring are sold separately.

Why Buy From Us?

• New Sealed – Factory packaging, never opened

• In Stock – Ready to ship immediately

• Fast Shipping – Expedited shipping options available

• Warranty Included – Purchase with confidence

• Technical Support – Drive compatibility assistance available

Frequently Asked Questions (FAQ)

Q1: What is the Siemens C98043-A7115-L12-7?

It is a Field Supply / Firing Board (excitation board) used in Siemens SIMOREG 6RA70/6RA80 DC drives. It generates thyristor firing pulses and manages the field power supply.

Q2: Which Siemens drive series is it compatible with?

It is primarily used in SIMOREG DC-MASTER 6RA70 and 6RA80 series DC drives, and also fits some SINAMICS DCM systems. Always verify the exact board number against your existing unit.

Q3: What is the difference between L12-7 and L12?

The "-7" suffix indicates a hardware version or revision batch. Electrical function is essentially identical. Compared with earlier generations such as L11, the L12 series offers significantly improved noise immunity and isolation performance.

Q4: What are the symptoms of a failed firing board?

Abnormal thyristor firing pulses or loss of field supply will prevent the DC motor from developing proper torque. The drive may report excitation faults, firing faults, or fail to start.

Q5: What should I verify before ordering?

Verify the exact drive model (6RA70 or 6RA80), the complete board number on your existing PCB, and whether a specific revision is required.

Q6: Is this a genuine Siemens product?

Yes. This is a new sealed genuine Siemens spare part with part number C98043-A7115-L12-7.
