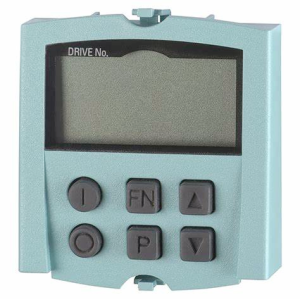

Siemens 6SL3055-0AA00-4BA0 SINAMICS S120 BOP20 Basic Operator Panel

Key Features

• Compact & Integrated Design: Snaps directly onto a compatible SINAMICS S120 Control Unit (CU310-2, CU320-2) for a space-saving installation .

• User-Friendly Interface: Features a backlit, two-line LCD display and six tactile keys for easy navigation and operation .

• Core Diagnostic Tool: Enables users to view, acknowledge, and diagnose faults and alarms directly on the drive, minimizing downtime .

• Efficient Commissioning: Provides access to parameters for quick setup, adjustment, and optimization of the drive system .

• High-Quality Construction: Housed in robust polycarbonate material for durability in industrial environments .

• Network/Communication Protocol: RS485 / Modbus RTU .

Technical Specifications

Core Advantages

1. Plug-and-Play Simplicity

The BOP20 is designed for effortless installation. It can be plugged directly onto the control unit, providing immediate local access to the drive system without complex wiring or external power supplies .

2. Streamlined Commissioning & Fault Resolution

The BOP20 accelerates the commissioning process. The combination of the two-line display and six intuitive keys allows for direct, efficient parameterization. It is an indispensable tool for on-the-spot fault acknowledgment and diagnosis, helping to significantly reduce machine downtime .

3. Versatile Command Center

Beyond diagnostics, the BOP20 serves as a local control panel. The dedicated ON and OFF keys allow for direct starting and stopping of the drive, providing manual control over the motor operation. The FN (Function) key enables access to additional features and functions based on the current display context .

Applications

The BOP20 is an essential tool in any application where SINAMICS S120 drives are used, including:

• Machine Building: For initial start-up and tuning of packaging, printing, and textile machines.

• Factory Automation: For local control and diagnostics of conveyor systems, handling equipment, and assembly lines.

• Process Automation: For parameterizing drives in pumps, fans, and compressors.

• Field Maintenance: For quick troubleshooting and adjustment of drives on the factory floor.

Frequently Asked Questions (FAQ)

Q1: What is the purpose of the Siemens 6SL3055-0AA00-4BA0?
It is a Basic Operator Panel (BOP20) for the SINAMICS S120 drive family. It is used for commissioning, parameterization, diagnostics, and local operation of the drive system .

Q2: Which SINAMICS S120 Control Units is the BOP20 compatible with?
The BOP20 is compatible with the CU305, CU310, and CU320 Control Units .

Q3: How is the BOP20 powered?
The BOP20 receives its power and communicates directly via a plug-in connection to the Control Unit .

Q4: Can I acknowledge faults directly from the BOP20?
Yes, the BOP20 is designed to display and acknowledge faults and alarms directly from the drive system .

Q5: Does the BOP20 allow me to start and stop the motor?
Yes, the panel includes dedicated ON and OFF buttons to control the connected motor .

Q6: How do I save the parameters I've changed using the BOP20?
Press and hold the P (Parameter) button for 3 seconds to execute the "RAM to ROM" copy function, which saves the parameters to non-volatile memory .

Q7: What type of display does the BOP20 have?
It features a two-line, backlit LCD display .
