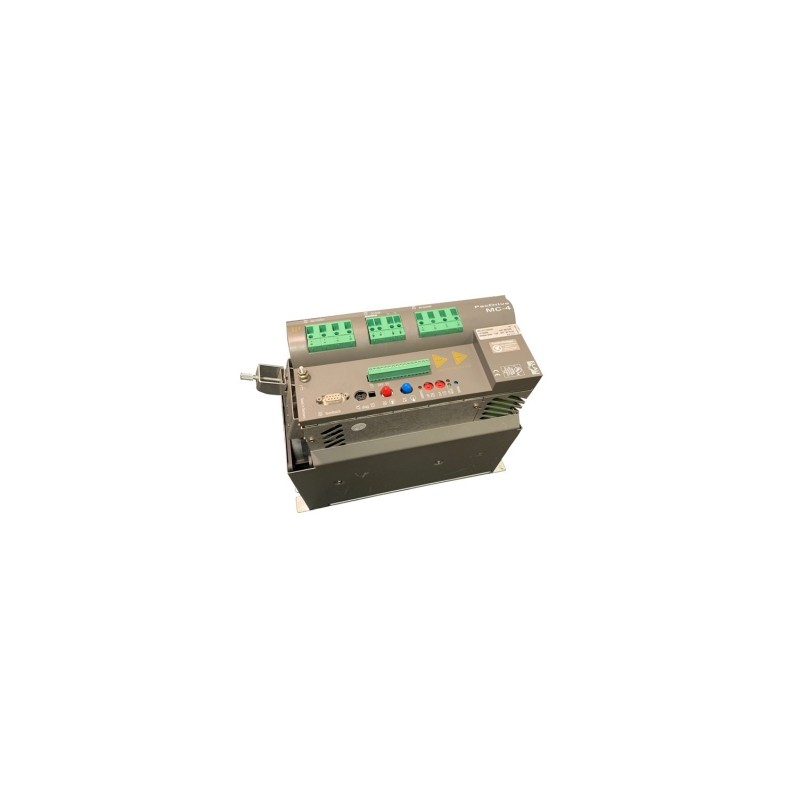

The Schneider Electric VDM01D10AA00, also known as the MC-4/11/10/400, is a high-performance PacDrive servo drive from the ELAU MC-4 series. Designed for precise motion control in advanced industrial automation, this drive integrates the power stage and regulator for a single axis in a compact housing . It is part of the PacDrive™ platform, engineered for decentralized control architectures in high-speed production lines .
Product Status: This model has been discontinued by the manufacturer. Schneider Electric recommends the Lexium 62 series as the direct upgrade replacement.
Item No :
VDM01D10AA00Order(MOQ) :
1Payment :
EXWProduct Origin :
FranceShipping Port :
Wuhan, Hubei,ChinaLead Time :
3-5 daysWeight :
3.5kgSpecifications
MC-4/11/10/400 New in Stock
|
Net Weight (kg) |
3.8KG |
|
Packaging Dimension |
40*36*18 |
|
Package size unit of measure |
CM |
More details
|
Country of origin |
France |
|
Product condition |
New |
|
Warranty |
one year |
|
Payment Method |
T/T, Western Union |
|
Shipping Method |
DHL/FedEX/UPS/TNE/EMS |
| Feature | Description |
|---|---|
| Compact, Integrated Design | Power stage and software regulator integrated into a single housing for one axis . |
| Distributed Architecture | Communication with the PacController or PacPC is via fiber optic cable (SERCOS interface) . |
| Wide Voltage Range | Rated for 3-phase AC 380 V (-10%) to 480 V (+10%), suitable for global power grids . |
| Automatic Motor Recognition | Simplifies commissioning by automatically detecting connected servo motors . |
| High Overload Capacity | Capable of up to 250% overload for demanding dynamic applications . |
| Integrated SERCOS Interface | Standard high-speed real-time communication bus for multi-axis synchronization . |
| Cabinet Installation | IP20 protection class, designed for installation within a control cabinet . |
| Robust Cooling | Built-in fan for reliable thermal management . |
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric (ELAU) |
| Part Number | VDM01D10AA00 |
| Model Designation | MC-4/11/10/400 |
| Series | ELAU PacDrive MC-4 |
| Primary Power | 3-phase AC 380 V (-10%) to 480 V (+10%), 50/60 Hz |
| Rated Current | 10 A |
| Power Capacity | Max 34.5 / 69 kVA |
| Control Supply | DC 24 V (-15% / +25%) / 1 A |
| Control Supply Power | Approx. 12 W |
| Communication | Integrated SERCOS interface |
| Encoder Support | Single and multi-turn encoder processing |
| Cooling | Internal fan |
| Protection Class | IP20 |
| Country of Origin | Germany (DE) |
| Weight | Approx. 4.0 kg |
| Dimensions | Approx. 40.5 × 31.0 × 10.0 cm |
The VDM01D10AA00 is ideal for high-speed, high-precision motion control in distributed automation architectures :
Packaging Machines: High-speed packaging and filling lines .
Printing Presses: Web-fed and sheet-fed printing equipment .
Assembly Lines: Automated electronic and component assembly .
Food and Beverage Production: Filling, capping, and labeling systems .
Robotics: Multi-axis robot control .
Material Handling: Gantry systems and automated storage/retrieval .
Textile Machinery: Spinning, weaving, and finishing equipment .
CNC Machine Tools: High-precision machining centers .
| Feature | Benefit |
|---|---|
| Decentralized Design | Simplifies logistics and reduces cabinet space requirements . |
| SERCOS Fiber Optic Communication | Provides real-time, noise-immune synchronization for multi-axis systems . |
| Flexible Encoder Interface | Supports single-turn and multi-turn absolute encoders for high-resolution feedback . |
| Software-Based Commissioning | No user program is required on the drive; setup is completed via PacDrive engineering software . |
| Integrated SERCOS | Reduces wiring complexity and commissioning time . |
| Automatic Motor Identification | Eliminates manual parameter entry and reduces commissioning errors . |
| High Overload Capability | Handles peak torque demands without oversizing the drive . |
Discontinuation Notice: This model is discontinued. For new projects or high-volume replacements, Schneider recommends the Lexium 62 series .
System Environment: The drive is not a standalone unit. It is designed as part of the PacDrive ecosystem, requiring a PacController or PacPC master via SERCOS .
Programming Environment: Configuration and setup are performed via Schneider Electric Machine Expert (previously SoMachine) or ELAU PacDrive software .
Control Cabinet Only: With an IP20 rating, this drive must be installed in a protected electrical cabinet .
Cables: Requires specific motor, control, and SERCOS cables for operation .
A: They are the same product. MC-4/11/10/400 is the model/ordering designation, while VDM01D10AA00 is the product code used within the Schneider Electric system .
A: The drive requires a 3-phase supply of AC 380-480V and is rated at 10A .
A: It uses an integrated SERCOS interface, typically connected via fiber optic cable to a PacController .
A: Yes, it supports both single-turn and multi-turn absolute encoder processing .
A: This product is discontinued. Schneider Electric recommends the Lexium 62 series as the official upgrade .
A: It is configured using Schneider Electric's Machine Expert (formerly SoMachine) or the legacy ELAU PacDrive software .
A: It is specifically designed for the PacDrive ecosystem. While it may be integrated into other systems, full functionality (especially multi-axis synchronization) relies on the PacDrive controller .
A: The protection class is IP20, indicating it is intended for installation inside a control cabinet .
Shipping Process
We will confirm the goods with the customer before delivery, and after the customer's confirmation, the company's professional team will pack it. We can send via DHL, UPS, FedEx, EMS international logistics. If a customer requests an account to be picked up, please let us know in advance.
The part number ABB UNS 0885a-Z V1 (3BHB006943R0001) has a wide range of conflicting descriptions across different sources. Based on the most consistent manufacturer-aligned evidence, it is identified as a Converter Display Board for the UNITROL UN 5000 converter system.
The ABB UNS 0017a-P V1 (HIEE305106R0001) is a Firing Card (Trigger Board) designed for ABB's UNITROL 6000 X-power static excitation systems and legacy high-power thyristor converter cabinets. The board is engineered for high electromagnetic noise environments typical of power generation and heavy industrial drive applications.
The ABB UNS 1860b-P V1 (3BHB001336R0001) is a Measuring Interface Board (MUB) designed for ABB's UNITROL 5000/6000 static excitation systems. The board performs high-precision isolation, filtering, and A/D conversion, converting raw field signals into digital data for the excitation controller (CPU) via the backplane bus.
The ABB AINP-01C is an Input Bridge Control Board / Inverter Trigger Board engineered specifically for the ABB ACS800 series drives. It serves as the core rectifier control component, responsible for generating precision-timed firing pulses to control thyristors in the drive's input bridge.
The ABB AINT-14C (68685826D) is a Main Circuit Interface Board designed for the ABB ACS800 series drives. It serves as the critical signal bridge between the drive's control unit and external automation systems (PLC/DCS), handling analog/digital I/O and DDCS fiber optic communication.
The Siemens C98043-A7010-L2-5 is a Field Excitation Power Board designed for the SIMOREG DC-MASTER 6RA70 series of DC drives. This module serves as the core power supply and control unit for the DC motor's field winding, providing stable and precisely regulated excitation current to maintain a consistent magnetic field in the motor.
