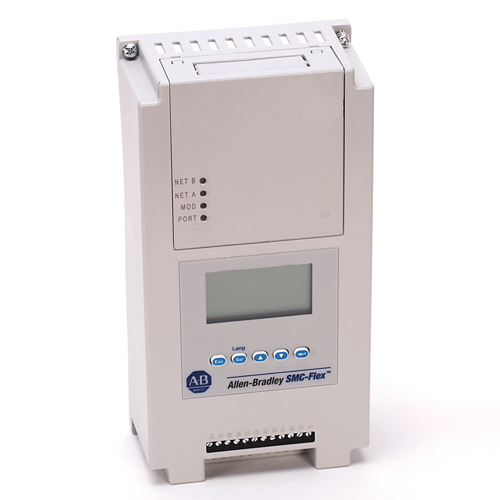

The Allen-Bradley 41391-454-01-S1FX is a Standard Control Module for the SMC Flex series of smart motor controllers. It provides reliable soft-start and soft-stop control for three-phase induction motors, offering essential motor protection and diagnostic functions in industrial automation systems.
Item No :
41391-454-01-S1FXOrder(MOQ) :
1 PiecePayment :
EXWProduct Origin :
MexicoShipping Port :
WuhanLead Time :
3~5 daysWeight :
5kg| Specification | Description |
|---|---|
| Manufacturer | Rockwell Automation (Allen-Bradley) |
| Model | 41391-454-01-S1FX |
| Product Family | SMC Flex (Smart Motor Controller) |
| Product Type | Standard Control Module / Repair Part |
| Input Voltage | 100–240V AC |
| Output Current Range | 5–1250 A |
| Compatible Motor Ratings | 200–600V AC |
| Display | LCD display with push buttons and LED status indicators |
| LED Indicators | Up to 4 LEDs for device and diagnostic status |
| Operating Temperature | -5°C to +50°C (open); -5°C to +40°C (enclosed) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% non-condensing |
| Maximum Altitude | 2000 m without de-rating |
| Certifications | CE, KC, cULus |
| Dimensions (W x H x D) | 40 x 33 x 8.8 cm |
| Weight | Approx. 0.9 kg |
| Country of Origin | Mexico |
| Lifecycle Status | Active |
| Estimated Lead Time | 21 days |
| Model | Description | Typical Application |
|---|---|---|
| 41391-454-01-B1FX | Pump Control Module for SMC Flex | Pump control applications requiring specialized algorithms |
| 41391-454-01-D1BX | Smart Motor Braking Module | Applications requiring electronic motor braking |
| 41391-454-01-S1FX (this model) | Standard Control Module | General-purpose soft start/stop control |
| 41391-454-02-B2FX | Alternative pump control variant | Different pump control configuration |
Q1: What is the primary function of the 41391-454-01-S1FX?
It is a Standard Control Module for SMC Flex soft starters, providing soft-start and soft-stop control for three-phase induction motors. It also supports energy-saving operation, overload protection, and fault diagnostics.
Q2: Which systems are compatible with this control module?
This module is designed for use with Allen-Bradley SMC Flex soft starters and supports motor systems rated from 200–600V AC.
Q3: What are the input voltage requirements for this module?
The module operates on a 100–240V AC power supply range.
Q4: Does this module include a display interface?
Yes, the module includes an LCD display with push-button controls and LED status indicators for monitoring and diagnostics.
Q5: Is this module still available?
Yes, the product has an active lifecycle status with an estimated lead time of 21 days from the manufacturer. It is also available through industrial automation distributors and replacement parts suppliers.
