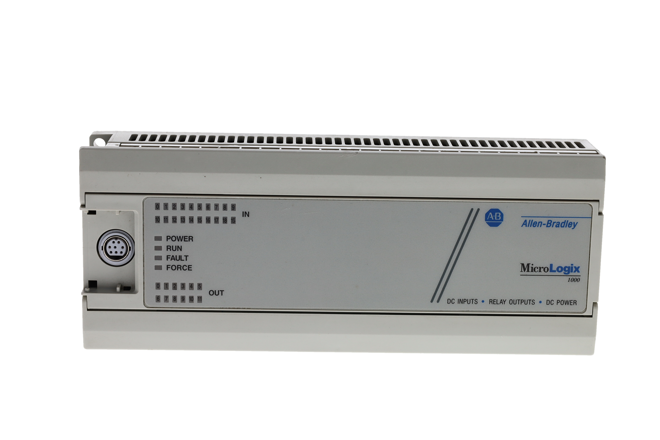

The Allen-Bradley 1761-L32BWB is a MicroLogix 1000 programmable logic controller designed for small-scale automation and standalone machine control. It features 20 digital 24V DC inputs (sinking/sourcing) and 12 relay outputs, with 1K EEPROM memory (approximately 737 instruction words and 437 data words). Powered by 20.4–26.4V DC, it includes an integrated RS-232 communication port supporting DF1 protocol for programming and peer-to-peer communication.
Item No :
1761-L32BWBOrder(MOQ) :
1 PiecePayment :
EXWProduct Origin :
USAShipping Port :
WuhanLead Time :
3~5 daysWeight :
5kg| Specification | Description |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Model | 1761-L32BWB |
| Product Family | MicroLogix 1000 |
| Product Type | Programmable Logic Controller (PLC) |
| Inputs | 20 digital inputs (24V DC, sinking/sourcing) |
| Outputs | 12 relay outputs |
| Input Voltage Range | 14–30V DC |
| Power Supply | 20.4–26.4V DC |
| Memory | 1K EEPROM (~737 instruction words, 437 data words) |
| Communication Port | RS-232 (8-pin Mini-DIN) |
| Protocol | DF1 |
| Output Current Range | 4–20 mA |
| Relay Output Rating | 2.0A per point; 8.0A per common |
| Inrush Current | 30A for 4 ms |
| Input Power | 7W |
| Operating Temperature | 0°C to +55°C |
| Operating Shock | 10 G |
| Non-Operating Shock | 20 G |
| Minimum Power Cycles | 50,000 |
| Dimensions (L x W x H) | 7.87 x 1.57 x 3.15 inches |
| Weight | 1.00 lbs (0.45 kg) |
| Mounting | DIN rail or panel mount |
| Safety Feature | Master Control Relay |
| Lifecycle Status | Discontinued/Obsolete |
| Model | Description | Typical Application |
|---|---|---|
| 1761-L32BWB (this model) | 32 I/O points, 20 DC inputs, 12 relay outputs, 24V DC power | Small machine control with relay outputs |
| 1761-L16BWB | 16 I/O points, smaller I/O capacity | Compact applications with fewer I/O requirements |
| 1761-L32BWA | 32 I/O points, AC-powered version | AC-powered installations |
| 1762-L24BWA (MicroLogix 1200) | Successor series with expanded features and memory | Migration path for larger applications |
| Micro820 / Micro830 | Recommended migration path for discontinued MicroLogix 1000 | New installations requiring modern features and Ethernet |
Q1: How many I/O points does the 1761-L32BWB provide?
It provides 32 I/O points total: 20 digital inputs (24V DC, sinking/sourcing) and 12 relay outputs.
Q2: What type of communication does this controller support?
The controller features an RS-232 communication port (8-pin Mini-DIN) supporting the DF1 protocol. It can also connect to a DH-485 network using a 1761-NET-AIC interface module.
Q3: Is this model still in production?
No. The 1761-L32BWB has been discontinued by Rockwell Automation. It is now considered obsolete but remains available through aftermarket suppliers and the used/refurbished market.
Q4: What software is required to program this controller?
It is programmed using RSLogix 500 or RSLogix Micro Starter software. The controller connects to a PC via the RS-232 port using a 1747-CP3 cable.
Q5: What is the recommended replacement for this controller?
Rockwell Automation recommends migrating to the Micro800 series (Micro820 or Micro830) for new installations. The Micro800 family offers enhanced features including Ethernet connectivity, larger memory, and support for the Connected Components Workbench programming environment.
