Q1: What is the primary function of the 3BDZ000398R1?

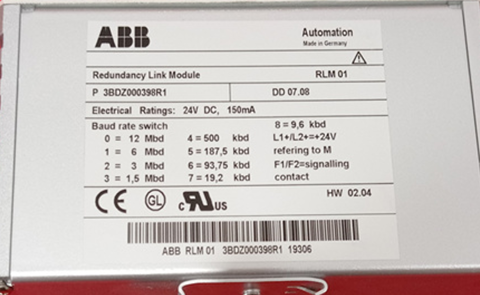

It is the RLM01 PROFIBUS Redundancy Link Module. Its primary function is to convert a single, non-redundant PROFIBUS DP line into two redundant lines (A/B), or to merge redundant lines into a single line. This ensures that if one communication line fails, the system automatically switches to the backup line, maintaining continuous operation .
Q2: Which applications are best suited for this module?
The RLM01 is designed for mission-critical, high-availability applications where network downtime is unacceptable. Typical applications include power plants and substations, oil & gas automation systems, chemical and pharmaceutical industries, ship and offshore platforms, and general factory automation .
Q3: Does the RLM01 require configuration in the PROFIBUS network?
No. The module operates transparently within the PROFIBUS network. It does not require a slave address configuration, meaning it does not consume a node address on the network. This simplifies integration and reduces setup time .
Q4: What certifications does the RLM01 hold?
The module is certified with CE, UL, and CSA approvals. It also holds a Germanischer Lloyd (GL) marine approval, making it suitable for maritime and offshore applications .
Q5: How do I troubleshoot if the redundancy link is not functioning?
Common troubleshooting steps include:
-
No communication: Check termination resistors, cable integrity, and baud rate settings
-
No redundancy: Verify Line A and Line B wiring connections
-
Error (ERR) indication: Check the 24V DC power supply and all physical connections
-
Status LEDs: Monitor front-panel LEDs for fault indications and signal contact status
