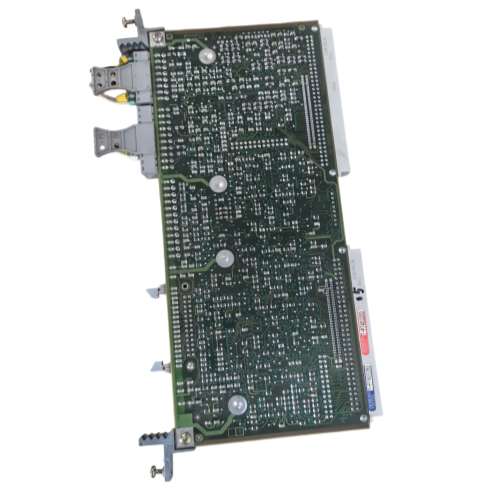

Siemens 6SE7090-0XX84-0AB0 CUVC Control Module

Key Features

• Vector Control Technology – Supports both closed-loop and open-loop vector control for high-precision motor management

• Firmware Version V3.4 – Proven control algorithms for stable drive operation

• Comprehensive I/O – 7 digital inputs/outputs, 2 analog inputs (current/voltage), 2 analog outputs (current/voltage)

• Multiple Communication Interfaces – 1× RS232/RS485 for PC or OP1S; 1× USS bus (RS485)

• Encoder Interface – HTL unipolar pulse encoder input for speed feedback

• Motor Temperature Monitoring – Compatible with PTC/KTY84 sensors

• Auxiliary Power Supply – 24V DC (max 150 mA) for I/O; 10V DC (max 5 mA) for potentiometer

• Compact Plug-In Design – Modular mounting for easy installation and replacement

Technical Parameters

Core Advantages

1. Direct Replacement for Legacy MASTERDRIVES Systems

The CUVC module is the central control board for SIMOVERT MASTERDRIVES vector control units. For facilities operating these proven drive systems, the CUVC provides a direct board-level replacement solution, avoiding the cost and complexity of full drive replacement . This is particularly valuable for installations where the drive mechanics and power section remain fully functional.

2. Advanced Vector Control Capability

The CUVC module implements Siemens' proven vector control algorithms in firmware version V3.4. This enables precise speed and torque regulation for demanding applications including pumps, fans, extruders, and process machinery . Both closed-loop (with encoder feedback) and open-loop (sensorless) control modes are supported .

3. Comprehensive Integrated I/O

The module includes a full complement of on-board I/O: 7 digital inputs/outputs, 2 analog inputs, and 2 analog outputs. This eliminates the need for additional I/O expansion cards in many applications, simplifying system design and reducing cost .

4. Proven Reliability in Critical Applications

The SIMOVERT MASTERDRIVES platform has been deployed for decades in critical industrial applications including water treatment, metals processing, pulp and paper, and heavy manufacturing. The CUVC module is engineered for continuous operation in these demanding environments .

5. Active Service Support

Despite the product being discontinued, Siemens continues to offer spare part delivery, repair, and exchange services for the CUVC module . This ensures that existing MASTERDRIVES installations can be maintained for years to come.

Applications

The Siemens 6SE7090-0XX84-0AB0 CUVC module is deployed in a wide range of industrial drive applications:

Primary Functions

• Motor Speed Control – Precise speed regulation via vector control algorithms

• Torque Management – Closed-loop torque control for demanding loads

• Process Integration – Communication with plant control systems via RS485/USS

• Encoder Feedback Processing – HTL pulse encoder interface for closed-loop operation

Recommended Models & Related Products

Note: The SIMOVERT MASTERDRIVES platform has been superseded by SINAMICS drives. For new installations, Siemens recommends the SINAMICS G120 or S120 series. However, the CUVC module remains essential for maintaining existing MASTERDRIVES installations .

What's Included

• 1 × Siemens 6SE7090-0XX84-0AB0 CUVC Control Module (New Sealed)

Note: Drive unit, power section, operator panel, and cables are sold separately.

Why Buy From Us?

• New Sealed – Factory packaging, never opened

• In Stock – Ready to ship immediately

• Fast Shipping – Expedited shipping options available

• Warranty Included – Purchase with confidence

• Technical Support – Drive compatibility assistance available

Frequently Asked Questions (FAQ)

Q1: What is the Siemens 6SE7090-0XX84-0AB0?

It is the CUVC (Closed-Loop and Open-Loop Control Module Vector Control) for the SIMOVERT MASTERDRIVES platform. It is the central control board that manages motor control algorithms including vector control for precise speed and torque regulation .

Q2: What does "CUVC" stand for?

CUVC stands for Closed-loop and Open-loop Control Module Vector Control. It is the specific control board used in SIMOVERT MASTERDRIVES vector control units .

Q3: What is the firmware version of this module?

The firmware version is V3.4 .

Q4: Is this a genuine Siemens product?

Yes. This is a new sealed genuine Siemens spare part with article number 6SE7090-0XX84-0AB0.

Q5: What control methods does this module support?

The module supports both closed-loop and open-loop control methods, with vector control capability .

Q6: What is the lifecycle status of this product?

The CUVC module is classified under Siemens PLM status PM490: Start of final year of support, with discontinuation effective 30/09/2020 . This unit is from remaining new stock.

Q7: What communication interfaces does the module provide?

It provides:

• 1× RS232/RS485 for PC or OP1S connection

• 1× USS bus (RS485)

Q8: What encoder types are supported?

The module supports HTL unipolar pulse encoders for speed feedback .

Q9: What motor temperature sensors are compatible?

The module is compatible with PTC and KTY84 motor temperature sensors .

Q10: What is the net weight of the module?

Approximately 0.200 kg .

Q11: What is the country of origin?

Germany .

Q12: Can I get technical support for commissioning this module?

Yes. Siemens continues to offer spare part delivery, repair, and exchange services for this product. Additionally, our technical support team can assist with compatibility verification and installation guidance .

Q13: What should I verify before ordering?

Always verify the exact part number (6SE7090-0XX84-0AB0), the drive model, the firmware version required, and the existing module's configuration before ordering. Consult Siemens documentation or contact our technical support for assistance.
