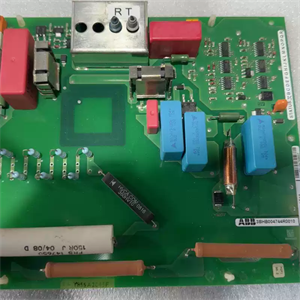

ABB XV C517 AE10 3BHB004744R0010 Gate Driver Unit

Key Features

• High-Speed Gate Drive – Provides microsecond-level switching response for real-time control of IGBT/MOSFET power devices

• Precise Motor Control – Enables accurate regulation of motor direction, speed, position, and response time through power device switching

• Comprehensive Protection – Built-in overcurrent, overvoltage, and overheating protection ensures safe operation of connected power devices

• Flexible Communication – Supports multiple industrial protocols including Modbus TCP/RTU, Profibus DP, ProfiNet, and EtherNet/IP

• Modular DIN Rail Mounting – Compact plug-in structure supports 35mm DIN rail or rack installation for easy replacement

• Wide Temperature Range – Industrial-grade design operates reliably from -25°C to +70°C

Technical Parameters

Core Advantages

1. Critical Control-to-Power Interface

The XV C517 AE10 is the essential hub connecting the control layer and power layer in ABB drive systems. It receives low-voltage logic signals from the drive controller and converts them into high-current gate drive signals that can rapidly switch power semiconductor devices. This makes it the key execution link for motor control, power conversion, and excitation regulation.

2. Advanced Protection Architecture

The module integrates comprehensive protection mechanisms including overcurrent, overvoltage, and overtemperature detection. These protections automatically trigger fault isolation to prevent damage to the module and connected power devices, ensuring system safety and reducing unplanned downtime.

3. Flexible System Integration

With support for multiple industrial communication protocols (Modbus, Profibus, ProfiNet, EtherNet/IP) and modular DIN rail mounting, the XV C517 AE10 integrates seamlessly into existing ABB DCS and drive architectures. Its plug-in structure supports online replacement, minimizing maintenance time.

4. Proven Reliability in Harsh Environments

Designed for industrial-grade operation with a wide temperature range and robust construction, this module is engineered for demanding applications in steel mills, offshore platforms, and other harsh environments. Optional SIL 3 certification is available for safety-critical systems.

Applications

The ABB XV C517 AE10 is deployed across a wide range of power control and industrial automation applications:

Primary Functions

• Gate Drive Output – Converts control signals to high-current gate pulses for IGBT/MOSFET switching

• Motor Precise Control – Manages direction, speed, position, and response time through power device switching

• Excitation Control – Regulates generator rotor excitation current in static excitation systems

• Fault Detection – Monitors power device status and reports faults to the drive controller

Recommended Models & Related Products

Important Compatibility Note: The XVC517AE02 (input interface module) and XVC517AE10 (gate driver unit) are distinct modules with different functions. AE02 focuses on signal acquisition and communication; AE10 focuses on power drive and execution control. They work together in a complete control circuit. Verify compatibility with your existing XVC517 series rack and drive model before ordering.

What’s Included

• 1 × ABB XV C517 AE10 Gate Driver Unit (3BHB004744R0010)

Note: Drive unit, interface modules, and other system components are sold separately.

Why Buy From Us?

• New and Original – Genuine ABB product

• In Stock – Ready to ship immediately

• Fast Shipping – Expedited shipping options available

• Warranty Included – Purchase with confidence

• Technical Support – Drive compatibility assistance available

Frequently Asked Questions (FAQ)

Q1: What is the ABB XV C517 AE10 (3BHB004744R0010)?

It is a Gate Driver Unit (GDU) from ABB’s XV C517 series, designed for medium-voltage drives and industrial power control systems. It converts low-voltage control signals into high-current gate drive signals for IGBT/MOSFET power devices.

Q2: What is the primary function of this module?

The module drives power semiconductor devices (IGBTs/MOSFETs) by providing precise gate drive signals. It controls the on/off timing of power devices, enabling precise motor speed, torque, and position control in drive systems.

Q3: What is the difference between XVC517AE10 and XVC517AE02?

XVC517AE02 is an input interface module for signal acquisition and communication. XVC517AE10 (this item) is a gate driver unit for power drive and execution control. AE02 collects field signals; AE10 receives control instructions and drives power devices. They work together in the same system but serve different functions.

Q4: What drive platforms is this module compatible with?

It is compatible with ABB ACS800 and ACS880 series frequency converters. It is also used as an embedded excitation card in UN5000 static excitation systems.

Q5: What is the supply voltage for this module?

The typical supply voltage is 240V DC, with some variants supporting 24V DC (±10%) or 110–230V AC.

Q6: What communication protocols does it support?

It supports industrial standard protocols including Modbus TCP/RTU, Profibus DP, ProfiNet, and EtherNet/IP, enabling seamless networking with ABB DCS racks and other control systems.

Q7: Is this a genuine ABB product?

Yes. This is a new and original ABB module with order number 3BHB004744R0010. Bill of lading records confirm shipment directly from ABB Switzerland.

Q8: What is the net weight of this module?

Weight varies by variant, ranging from approximately 0.5 kg to 2 kg depending on the specific configuration and enclosure.

Q9: What are the typical application scenarios?

Typical applications include medium-voltage drives, generator excitation systems, motor drive systems, wind turbine converters, and industrial automation power control.

Q10: What should I verify before ordering?

Always verify the exact order number (3BHB004744R0010), confirm your drive model (ACS800/ACS880), and check whether your system uses the XV C517 series rack. The module should be installed with a 10mm heat dissipation clearance and cables routed separately from power lines to avoid EMI.
