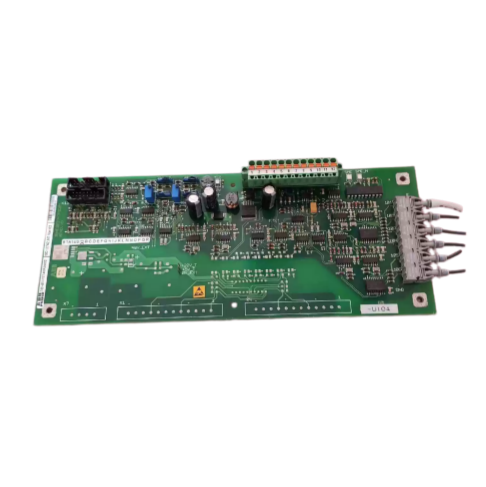

ABB GD C742 AE Var.02 3BHE003748R0002 Interface Module

Products Description

Core Features & Advantages

• Seamless System Integration: The module is designed for seamless integration and communication within ABB’s industrial automation systems, serving as a critical component for managing data exchange between different system elements .

• Multi-Protocol Support: It supports multiple communication protocols for versatile connectivity, including Modbus and Profibus, ensuring compatibility with a wide range of ABB automation equipment .

• Diagnostic Capabilities: Equipped with diagnostic LEDs and intuitive configuration options, the module facilitates ease of use and rapid troubleshooting .

Typical Applications

Based on supplier descriptions, this module is used in:

• Industrial Automation Systems: Facilitating communication between different automation devices

• Process Control: Enhancing data exchange and integration for optimized process control

• Machine Interface: Serving as a bridge between control systems and machinery

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the ABB GD C742 AE Var.02 3BHE003748R0002?

A: The most consistent description across sources is that it is a CSI Converter Signal Interface or Interface Module designed for ABB’s industrial automation systems. Its role is to facilitate data exchange and communication between different system elements . However, other sources describe it as a 16-channel analog input module , a gate drive control interface , or a power supply module . Always verify against your system’s original documentation.

Q2: Why do different suppliers describe this module differently?

A: There is significant information inconsistency across supplier listings. Possible explanations include: (1) The part number may be used for multiple product revisions or configurations; (2) Some suppliers may be incorrectly labeling the product; (3) The module may serve different functions depending on the system configuration it is installed in. The 16-channel analog input description is the most technically detailed and credible .

Q3: Is the GD C742 AE still in production?

A: It is a legacy product available as a spare part through third-party suppliers. It is listed as “In Stock” from various industrial automation parts suppliers . Official production status from ABB is not confirmed in the search results.

Q4: What are the key technical specifications?

A: According to the most detailed specification source: 16 single-ended analog input channels, 16-bit resolution, ±0.05% accuracy, ±30V overvoltage protection, >120 dB common-mode rejection, and 10 ms/channel sampling rate. Operating temperature is 0°C to +60°C .

Q5: What is the country of origin?

A: Multiple sources list the country of origin as Sweden .

Q6: What warranty is typically offered?

A: Third-party suppliers typically offer a 12-month warranty on this module .

Recommended Models & Related Products

The GD C742 AE is part of ABB’s Advant OCS and Advant-800xA interface module family. Below are related models and components:

Choosing the Right Model

• For existing ABB Advant OCS / 800xA systems: The GD C742 AE Var.02 (3BHE003748R0002) is the correct spare part for maintaining existing installations.

• For verification: Due to the information inconsistencies across suppliers, always cross-reference the complete part number and verify the module’s function against your system’s original documentation before ordering .

• For system integration: Pair with related ABB terminal bases and communication modules as required by your specific system configuration.
