Core Advantages
-

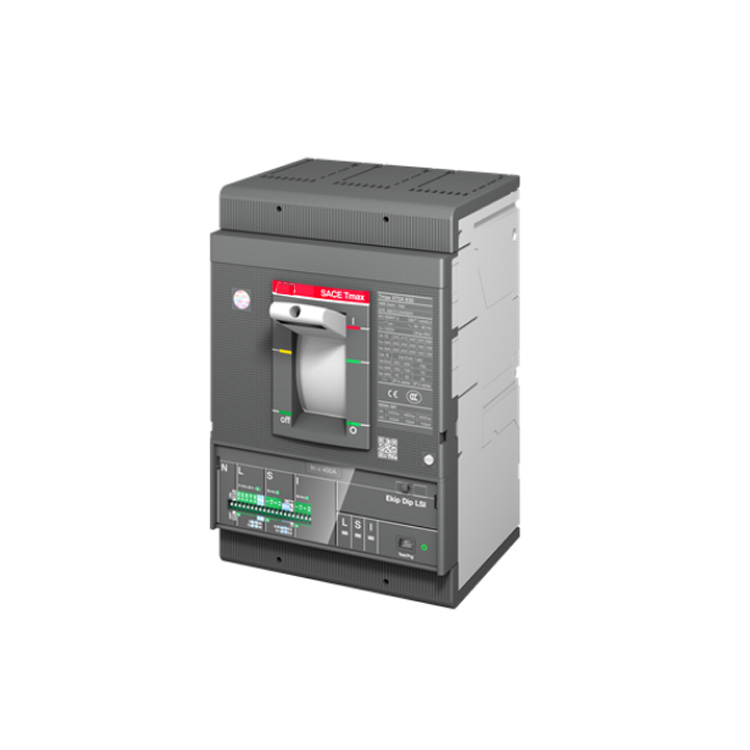

Advanced Ekip Dip Electronic Trip Unit: The Ekip Dip LS/I trip unit provides precise electronic protection with adjustable settings. The overload (L) protection is adjustable from 160 A to 400 A, while the instantaneous short-circuit (I) protection is adjustable from 400 A to 4000 A. This electronic trip technology offers superior accuracy and repeatability compared to traditional thermal-magnetic trip units.
-
High Breaking Capacity: With a rated ultimate short-circuit breaking capacity (Icu) of up to 85 kA at 220-240 V AC and 50 kA at 380-440 V AC, the XT5S 400 delivers exceptional fault current protection. The breaker is suitable for demanding industrial environments where high fault currents are possible.
-
Solid-State Release Technology: The breaker features a solid-state release that ensures precise and reliable protection in AC applications. This technology provides consistent performance over the breaker's lifetime without the drift associated with thermal elements.
-
Compact High-Performance Design: The SACE Tmax XT series is designed to provide high breaking capacity in a compact footprint. With dimensions of 140 mm (W) × 205 mm (H) × 103.5 mm (D), the XT5S 400 saves valuable panel space while delivering 400 A protection capability.
-
Flexible Installation Options: The breaker supports fixed installation with front-facing terminals for straightforward wiring and maintenance. Motor drive operation is available as an optional accessory, enabling remote switching capability for automated power management systems.
-
Comprehensive Accessory Range: The XT5S 400 is compatible with a wide range of ABB accessories including auxiliary contacts, shunt trips, undervoltage releases, and communication modules. This modular approach enables customized configurations for specific application requirements.
Technical Parameters
Application Scenarios
The ABB XT5S 400 Ekip Dip LS/I is essential in various industrial and commercial power distribution systems requiring reliable circuit protection:
-
Industrial Power Distribution: Serves as main and sub-distribution breakers in manufacturing plant electrical panels, protecting feeder circuits and downstream equipment from overload and short-circuit conditions.
-
Commercial Building Distribution: Used in commercial and institutional facilities for main incoming and distribution circuit protection, ensuring reliable power supply to critical loads.
-
Machine and Equipment Protection: Provides reliable protection for three-phase motor circuits and industrial machinery up to 690 V AC. The adjustable electronic trip settings allow precise coordination with equipment protection requirements.
-
Process Industry Facilities: Protects critical electrical circuits in chemical plants, refineries, and food processing facilities where reliable power distribution is essential.
-
Generator Protection: Serves as protection for generator output circuits, ensuring safe operation during startup, synchronization, and load changes.
-
Feeder Circuit Protection: Provides reliable protection for feeder cables and busways in large electrical installations, with high breaking capacity to handle fault currents safely.
What Is Included
Before You Buy
-
Stock Status: In Stock – Ready for immediate dispatch.
-
Condition: New and Original. Each unit is 100% tested and verified before shipping.
-
Accessories Note: Auxiliary contacts, shunt trips, undervoltage releases, and motor operators are available separately. Please specify your requirements when ordering if additional accessories are needed.
-
Installation: Installation must be performed by qualified technicians. Ensure all power sources are disconnected before installation. Follow local electrical codes and regulations for circuit breaker installation.
-
Warranty: Comes with a standard 12-month warranty covering defects in materials and workmanship.
Frequently Asked Questions
Q: What does the model number XT5S 400 Ekip Dip LS/I In=400 3p F F represent?
A: The model number breaks down as follows: XT5S = Tmax XT5 frame size, Standard breaking capacity; 400 = 400 A rated current; Ekip Dip LS/I = Electronic trip unit with Long-time and Instantaneous protection; In=400 = Rated current 400 A; 3p = Three-pole configuration; F F = Fixed version with Front terminals on both line and load sides.
Q: What is the difference between the Ekip Dip LS/I and TMA trip units?
A: The Ekip Dip LS/I is an electronic trip unit providing adjustable Long-time (overload) and Instantaneous (short-circuit) protection with high accuracy. The TMA (Thermal-Magnetic Adjustable) is a traditional thermal-magnetic trip unit. Electronic trip units offer superior precision, repeatability, and typically more flexible setting ranges.
Q: What is the breaking capacity of this circuit breaker?
A: The XT5S 400 has a rated ultimate short-circuit breaking capacity (Icu) of 85 kA at 220-240 V AC, 50 kA at 380-440 V AC, 30 kA at 500-525 V AC, and 25 kA at 690 V AC.
Q: Can this breaker be motorized for remote operation?
A: Yes, motor drive operation is available as an optional accessory. This enables remote opening and closing of the circuit breaker for automated power management and SCADA integration.
Q: What accessories are available for this circuit breaker?
A: The XT5S 400 is compatible with a comprehensive range of accessories including auxiliary contacts (NO/NC), shunt trips, undervoltage releases, rotary handles, motor operators, and communication modules for advanced monitoring.
Q: What is the rated voltage and insulation level?
A: The breaker has a rated operational voltage (Ue) of 690 V AC and a rated insulation voltage (Ui) of 1000 V. The rated impulse withstand voltage (Uimp) is 8 kV.
Q: What is the difference between the XT5S and XT5H versions?
A: The XT5S is the standard breaking capacity version (50 kA at 400 V), while the XT5H is the high breaking capacity version (70 kA at 400 V). The XT5S is suitable for most industrial applications, while the XT5H is used where higher fault currents are expected.
Q: How fast can you ship this module?
A: As this is a stock item, we typically ship within 24 hours of order confirmation via global express services like DHL or FedEx.
Recommending Models
The ABB XT5S 400 Ekip Dip LS/I works seamlessly with the following ABB components and accessories:
-
1SDA100426R1: XT5S 400 Ekip Dip LSI In=250 3p F F version with lower current rating for applications requiring reduced protection settings.
-
1SDA100428R1: XT5S 400 Ekip Dip LSI In=400 3p F F version with additional Selective protection function for improved coordination.
-
1SDA100482R1: XT5S 400 Ekip Dip LIG In=400 4p F F version with four-pole configuration and earth fault protection.
-
Ekip Com Modbus TCP (1SDA074151R1): Communication module for integrating the circuit breaker into Modbus TCP networks for remote monitoring and control.
-
Ekip Supply (1SDA074172R1): Auxiliary power supply module required when installing communication modules on the circuit breaker.
-
Auxiliary Contact Modules: Available in various configurations (1NO+1NC, 2NO+2NC) for status indication and interlocking circuits.
-
Motor Operator: Optional motor drive for remote opening and closing operations, enabling automated power management.
