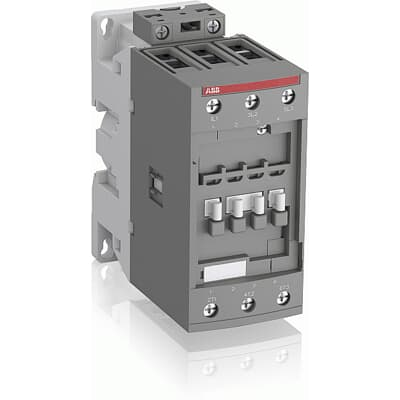

ABB 1SBL367001R1300 AF52-30-00-13 Contactor

The ABB 1SBL367001R1300 is a 3-pole AF52 series contactor from ABB’s AF range, designed for controlling power circuits up to 690 V AC and 220 V DC. It features a unique multi-coil electronic interface that accepts a wide control voltage range of 100–250 V AC/DC, eliminating the need for coil changes across different supply voltages worldwide .

The AF contactor is primarily used for controlling 3-phase motors, non-inductive or slightly inductive loads. Its built-in surge protection and wide voltage tolerance make it a reliable choice for industrial control panels, motor starters, and power switching applications.

Item No :
1SBL367001R1300
Order(MOQ) :
1
Payment :
EXW
Product Origin :
France
Shipping Port :
Wuhan, Hubei, China
Lead Time :
3-5 days
Weight :
1.05kg

Key Features

Universal Coil Voltage – 100–250 V AC/DC, one coil covers multiple control voltages without change
Built-in Surge Protection – No additional surge suppressors required
3-Pole Configuration – 3 NO main contacts, designed for 3-phase motor control
Compact Block Design – Space-efficient for DIN rail or panel mounting
Screw Terminals – Reliable electrical connections for main circuit wiring
Wide Operating Temperature – -40°C to +70°C, suitable for harsh environments

Technical Parameters

Parameter	Specification
Catalog Number	1SBL367001R1300
Model	AF52-30-00-13
Product Type	IEC Contactor
Number of Poles	3
Main Contacts	3 NO (Normally Open)
Auxiliary Contacts	0 NO, 0 NC
Rated Control Voltage (Coil)	100–250 V AC/DC
Coil Voltage Type	AC/DC
Rated Operational Voltage (Main Circuit)	690 V AC
Rated Operational Power AC-3 (400 V)	22 kW
Rated Operational Current AC-1 (400 V)	100 A
Rated Operational Current AC-3 (400 V)	53 A
Conventional Free-air Thermal Current (Ith)	105 A
Maximum Mechanical Switching Frequency	3600 cycles/hour
Maximum Electrical Switching Frequency (AC-3)	1200 cycles/hour
Terminal Type	Screw Terminals
Mounting	DIN Rail / Panel
Operating Temperature	-40°C to +70°C
Dimensions (W × H × D)	55 × 125.5 × 111 mm
Weight	Approx. 1.05 kg
Standards	IEC, cUL Listed, EAC, RoHS

Core Advantages

1. Universal Coil Technology

The AF52-30-00-13 features ABB’s innovative multi-coil electronic interface. A single coil covers the entire 100–250 V AC/DC control voltage range, eliminating the need to stock multiple coil variants for different supply voltages. This simplifies inventory management and ensures compatibility across global installations .

2. Built-in Surge Protection

Unlike conventional contactors that require external surge suppression devices, the AF52 includes integrated surge protection. This reduces wiring complexity, saves panel space, and eliminates an additional potential failure point in the control circuit .

3. High Switching Capacity

With a 22 kW AC-3 rating at 400 V and 53 A operational current, the AF52-30-00-13 handles demanding motor control applications. The 105 A conventional thermal current provides ample headroom for continuous operation .

4. Robust and Reliable Design

The AF series contactors are built for industrial environments with an operating temperature range of -40°C to +70°C. Mechanically linked auxiliary contacts comply with IEC 60947-5-1 Annex L, and NC mirror contacts comply with IEC 60947-4-1 Annex F for safety applications .

5. Flexible Mounting

The compact block design supports both DIN rail and panel mounting, allowing flexible integration into new control panels or retrofit applications .

Applications

The ABB AF52-30-00-13 is deployed across a wide range of industrial control applications:

Application Area	Description
Motor Control	Direct-on-line (DOL) starting of 3-phase motors up to 22 kW
Power Switching	Controlling resistive and slightly inductive loads in power circuits
Industrial Automation	Integration into PLC-controlled motor starters and control panels
HVAC Systems	Fan, pump, and compressor control in building automation
Material Handling	Conveyor, crane, and lifting equipment motor control
Pumping Stations	Water and wastewater pump motor switching
Manufacturing	Machine tool, packaging, and production line motor control

Recommended Models & Related Products

Part Number	Description	Key Difference
1SBL367001R1300	AF52-30-00-13, 3P, 100–250 V AC/DC	This item
1SBL367201R1300	AF52-40-00-13, 4P, 100–250 V AC/DC	4-pole variant
AF52-30-00-11	AF52-30-00-11, 3P, 24 V AC/DC coil	Lower coil voltage
AF52-30-00-14	AF52-30-00-14, 3P, 250–500 V AC/DC coil	Higher coil voltage
AF52-30-22-13	AF52-30-22-13, 3P, with 2NO+2NC aux	Includes auxiliary contacts

What's Included

1 × ABB 1SBL367001R1300 AF52-30-00-13 Contactor

Note: Auxiliary contact blocks, overload relays, and mounting accessories are sold separately.

Why Buy From Us?

New and Original – Genuine ABB product
In Stock – Ready to ship same/next business day
Fully Tested – Each unit verified for functionality
Warranty Included – Purchase with confidence
Technical Support – Application assistance available

Frequently Asked Questions (FAQ)

Q1: What is the ABB 1SBL367001R1300?

It is a 3-pole AF52 series contactor for controlling power circuits up to 690 V AC. It features a universal 100–250 V AC/DC coil and is primarily used for 3-phase motor control .

Q2: What does the model number AF52-30-00-13 mean?

AF52 = AF series, size 52; 30 = 3 main NO contacts, 0 NC; 00 = 0 auxiliary NO, 0 auxiliary NC; 13 = coil code for 100–250 V AC/DC .

Q3: What is the coil voltage range?

The coil accepts 100–250 V AC/DC. One coil covers this entire range without change .

Q4: How many main contacts does this contactor have?

It has 3 NO (Normally Open) main contacts for 3-phase power switching .

Q5: Does it come with auxiliary contacts?

No. This variant has 0 auxiliary contacts (00 in the model code). Auxiliary contact blocks can be added as accessories .

Q6: What is the power rating of this contactor?

It is rated for 22 kW at 400 V AC-3 (motor load) and 100 A AC-1 (resistive load) .

Q7: Does the contactor have built-in surge protection?

Yes. AF series contactors include integrated surge protection and do not require additional surge suppressors .

Q8: What are the dimensions and weight?

Approximately 55 × 125.5 × 111 mm and 1.05 kg .

Q9: What is the operating temperature range?

The contactor operates from -40°C to +70°C, suitable for harsh industrial environments .

Q10: What standards does this contactor comply with?

It complies with IEC standards and carries cUL Listed, EAC, and RoHS approvals .

Q11: Can I use this contactor for DC loads?

Yes, the AF52-30-00-13 is rated for DC-1 loads up to 100 A at 110 V DC (with poles in series) and DC-3 loads up to 100 A .

Q12: Is this a genuine ABB product?

Yes. This is a new and original ABB contactor with catalog number 1SBL367001R1300.
