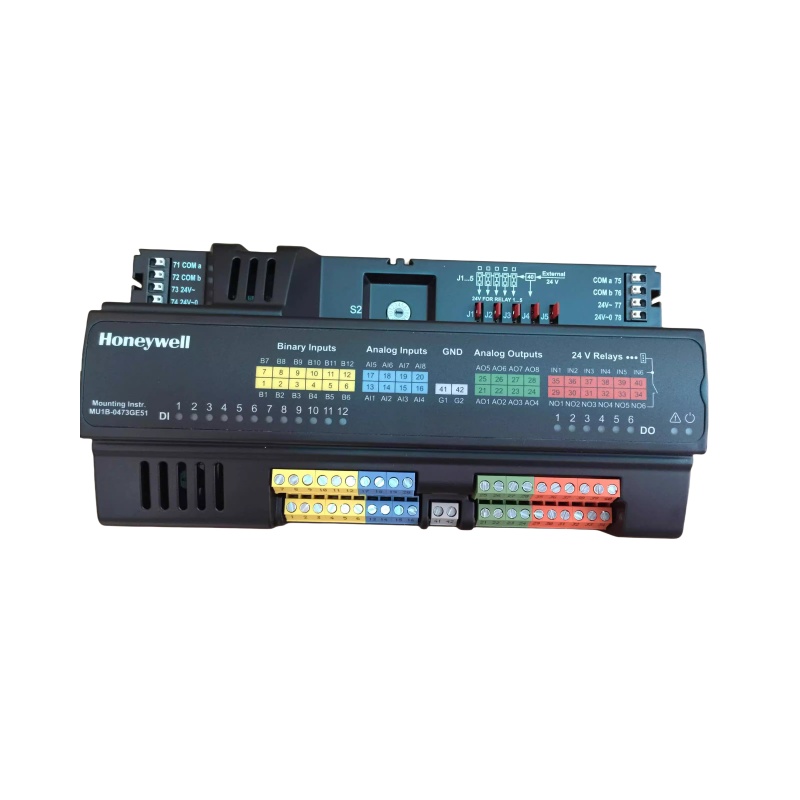

Honeywell MVC-IO830 Hybrid Module

The Honeywell MVC-IO830 (or MVC-IO830A) is a multifunctional I/O module from the Honeywell MVC Series. Designed for industrial automation and building management, its core function is to serve as a flexible interface between a central controller and field devices, handling both analog and digital signals for comprehensive process control and data acquisition. The "hybrid" designation refers to its ability to process a mix of signal types in a single, compact unit.

  • Item No :

    MVC-IO830

  • Order(MOQ) :

    1

  • Payment :

    EXW

  • Product Origin :

    Germany

  • Shipping Port :

    Wuhan, Hubei, China

  • Lead Time :

    3-5 days

  • Weight :

    1kg

  • PRODUCT INFORMATION

    MVC-IO830 Hybrid Module

    Brand Name: Honeywell

    Product Name: MVC-IO830

    Condition: 100% New And Original

    Lead Time: 3-5Days

    Warranty: 1Year



    WHY CHOOSE US



    1. All our products are new and original, and good quality.

    2. Our prices are very competitive.

    3. We have large quantity in stock, so we could help the customers to get the components which are difficult to get.

    4. All inquiries will be valued and will replied in 24 hours.

    5. Fast shipping, and good after-sale service.

    We will ship the items within 3-5 working days after the payment is received.



    Key Parameters and Features



    Item Specifications / Features
    Product Type Hybrid (Mixed) I/O Expansion Module
    System Platform Honeywell MVC Series Controllers
    Analog Inputs 8 channels (0(2)~10Vdc, NTC20kΩ)
    Analog Outputs 8 channels (0~11Vdc/±1mA, configurable as digital output)
    Digital Inputs 12 channels (static digital input, configurable as accumulator up to 15Hz)
    Relay Outputs 6 channels (Normally Open contacts, 500mA per relay)
    Resolution 10-bit (Analog Inputs)
    Communication Supports protocols like Modbus, PROFINET, EtherNet/IP
    Power Supply 24 VDC
    Mounting DIN rail mounting
    Protection Rating IP20

    Core Features & Advantages

    • Highly Flexible Signal Integration: The module's standout feature is its ability to handle a wide variety of signal types in one device. It combines 8 analog inputs, 8 analog outputs, 12 digital inputs, and 6 relay outputs, making it exceptionally versatile for diverse field devices.

    • Comprehensive Connectivity: The MVC-IO830 supports major industrial communication protocols (e.g., Modbus, PROFINET, EtherNet/IP). This ensures it can be integrated with a wide range of PLCs, SCADA systems, and other control equipment.

    • Customizable Configuration: The module features "free programmable" capability and can be configured via Honeywell's application library for applications like energy management (optimized start/stop, night purge, heating/cooling load management). It also allows per-input offset configuration to match specific sensor characteristics.

    • Robust Industrial Design: Designed with industrial-grade components, the module offers protection against electromagnetic interference and operates reliably in harsh environments with a wide temperature range (-40°C to +85°C). Its DIN rail mounting and compact dimensions (approx. 120×100×45 mm) make it easy to install in control cabinets.

    Typical Applications

    The MVC-IO830 is well-suited for a wide range of industrial and building automation applications where mixed signal I/O is required:

    • Building Automation: Implementing flexible energy management functions (optimized start/stop, night purge, load management) in HVAC systems.

    • Industrial Process Control: Monitoring and controlling reactors, temperature, and liquid level in chemical and pharmaceutical plants.

    • Manufacturing Automation: Connecting sensors and actuators on production lines, including data acquisition and control for robotics and machinery.

    • Energy Management: Monitoring pressure, temperature, and flow signals in power, water, and gas utilities for optimizing energy use.

    Frequently Asked Questions (FAQ)

    Q1: What is the resolution of the analog inputs?
    A: The MVC-IO830 has a 10-bit resolution for its analog inputs. For higher precision applications, note that some online sources list a 16-bit resolution for a related model, the MVC-IO830A.

    Q2: What types of analog signals does it support?
    A: The analog inputs accept 0(2)~10Vdc and can also be configured for NTC20kΩ temperature sensors (range -50°C to +150°C). The analog outputs provide 0~11Vdc voltage signals.

    Q3: What is the difference between MVC-IO830 and MVC-IO830A?
    A: The search results show both models. The MVC-IO830A appears to be a variant or newer version, mentioned in UL product certifications and some vendor listings. While the base specifications for I/O channels are similar, the "A" variant may support additional features like higher resolution (16-bit vs. 10-bit) or wider communication protocol compatibility.

    Q4: What is the total current capacity of the relay outputs?
    A: The module has 6 relay outputs. Each relay has a maximum current rating of 500mA. The maximum total current for all relays is 3A (AC or DC).

    Q5: Can the digital inputs be used as counters?
    A: Yes, each of the 12 digital inputs can be configured as an accumulator (counter) with a maximum counting frequency of 15Hz.

    Q6: What is the operating temperature range?
    A: The module is specified to operate reliably in extreme industrial environments, with a typical range of -40°C to +85°C.

    Recommended Models

    The MVC-IO830 is part of the Honeywell MVC Series product family. Below are the key related models identified in search results:



    Product/Model Type Brief Description
    MVC-IO830 Hybrid I/O Module The base model with 8 AI, 8 AO, 12 DI, and 6 relay outputs.
    MVC-IO830A Hybrid I/O Module A variant featuring enhanced capabilities, possibly including 16-bit resolution and broader protocol support.
    MVC-80 Multifunctional Controller The central controller that the MVC-IO830 module can expand, providing application library functions for energy management
