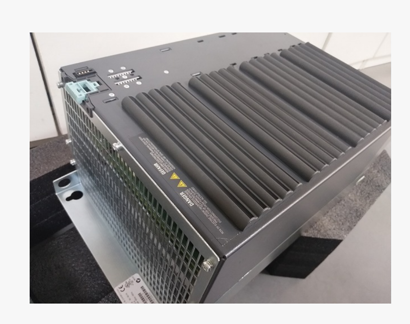

The Siemens 6SL3224-0BE33-7AA0 is a PM240 Power Module for the SINAMICS G120 drive series. This robust unit delivers 37 kW (high overload) or 45 kW (low overload) and features an integrated Class A input filter and braking chopper, making it an ideal choice for demanding variable-speed drive applications.
Item No :
6SL3224-0BE33-7AA0Order(MOQ) :
1 PiecePayment :
EXWProduct Origin :
GermanyShipping Port :
WuhanLead Time :
3-5daysWeight :
25kg| Feature | Description |
|---|---|
| Manufacturer | Siemens |
| Product Family | SINAMICS G120 |
| Module Type | PM240 Power Module |
| Input Voltage | 380-480 VAC, 3-phase, +10/-10% |
| Input Frequency | 47-63 Hz |
| High Overload (HO) Power | 37 kW (200% for 3s, 150% for 57s, 100% for 240s) at -10 to +50 °C |
| Low Overload (LO) Power | 45 kW (150% for 3s, 110% for 57s, 100% for 240s) at -10 to +40 °C |
| Integrated Filter | Class A input filter (for EMC compliance) |
| Braking Chopper | Integrated, supports dynamic braking |
| Protection Rating | IP20 |
| Dimensions (H x W x D) | 635 x 275 x 204 mm |
| Weight | Approx. 23 kg |
| Operating Temp. | -10 °C to +50 °C (HO); -10 °C to +40 °C (LO) |
| Note | Requires a separate Control Unit (e.g., CU240B/E) and Basic Operator Panel (BOP) |
| Category | Model | Description |
|---|---|---|
| Smaller PM240 (30kW) | 6SL3224-0BE33-0UA0 | PM240 without filter, 30kW HO / 37kW LO power rating |
| Smaller PM240 (11kW) | 6SL3224-0BE31-1AA0 | PM240 with filter, 11kW HO / 15kW LO power rating |
| Smaller PM240 (4kW) | 6SL3224-0BE24-0AA0 | PM240 with filter, 4kW LO power rating |
| Smaller PM240 (3kW) | 6SL3224-0BE23-0AA0 | PM240 with filter, 3kW LO power rating |
| Control Unit | CU240B-2 / CU240E-2 | Required control unit for operating the PM240; provides I/O and communication |
Q1: What is the difference between High Overload (HO) and Low Overload (LO) ratings?
High Overload is for applications with frequent, short-term overloads like conveyors or compressors (constant torque). Low Overload is for applications with lower starting torque like pumps and fans (variable torque) . For this module, HO power is 37 kW and LO power is 45 kW .
Q2: Does the 6SL3224-0BE33-7AA0 come with a Control Unit?
No, this is a stand-alone Power Module (PM240). It requires a separate Control Unit (CU), such as the CU240B-2 or CU240E-2, to function as a complete drive .
Q3: Does this module include a braking resistor?
The module has an integrated braking chopper , but you must connect an external braking resistor to the module's terminals to dissipate regenerative energy.
Q4: What are the physical dimensions and weight of the module?
The dimensions are 635 mm (H) x 275 mm (W) x 204 mm (D), and it weighs approximately 23 kg.
