Honeywell 8C-TAIXA1 51307127-175 Analog Input Module

HONEYWELL 8C-TAIXA1 51307127-175 Analog Input Module

The Honeywell 8C-TAIXA1 (Part No. 51307127-175) is a high-performance Analog Input Input/Output Termination Assembly (IOTA) designed for the Experion PKS Series 8 and C300 control platforms. This module serves as the critical interface for field transmitters and sensing devices, converting high-level current signals into precise digital data for process control and monitoring .

Designed for non-redundant applications, this 6-inch coated module offers robust environmental protection and supports online maintenance through hot-swap capability, ensuring maximum system uptime without process interruption.

  • Item No :

    51307127-175 8C-TAIX

  • Order(MOQ) :

    1

  • Payment :

    EXW

  • Product Origin :

    USA

  • Shipping Port :

    Wuhan, Hubei, China

  • Lead Time :

    3-5 days

  • Weight :

    0.6kg

  • Product Specification

    HONEYWELL 51307127-175 8C-TAIXA1 Analog Input Module

    About Us

    SWAN Electric is a supplier of industrial automation spare parts located in China.We specialize in PLC modules,Analog I/O

    module,power supply,HMI touchscreen panel, discontinued spare part,cable CPU processor, Servo-drive,Inverter,Base terminal unit,Communication

    Module,Switch Module,control board. At the same time, we have established close cooperative relationships with multiple PLC and DCS product

    maintenance service providers.

    Key Features & Benefits

    • 16 Single-Ended Channels: Supports up to 16 analog inputs, providing high-density signal termination for current (4-20 mA) transmitters .

    • 16-Bit Resolution: Ensures high-precision analog-to-digital conversion for accurate process variable measurement .

    • On-Board Excitation Power: Eliminates the need for external marshalling power, simplifying wiring and reducing installation costs .

    • Galvanic Isolation: Provides robust protection against electrical faults and ground loops with 1000 VAC RMS isolation (via Icoupler in IOM) .

    • Hot-Swap Support: Allows module replacement under power, minimizing downtime during maintenance .

    • Conformal Coating: Protects the circuit board against moisture, dust, and chemical exposure, ensuring durability in harsh industrial environments .

    • Extensive Self-Diagnostics: Features fast loop scanning and built-in diagnostics for quick troubleshooting and reliable operation .

    Technical Specifications



    Category Specification
    Manufacturer Honeywell
    Model Number 8C-TAIXA1
    Part Number 51307127-175
    Product Type Analog Input IOTA (Coated)
    Input Channels 16 Channels (Single Ended)
    Input Type Current (4-20 mA) via 250 Ω resistor
    A/D Converter Resolution 16 bits
    Power Supply 24 VDC
    Module Current Rating 105 - 110 mA
    Input Scan Rate 50 ms
    Accuracy ±0.075% FS (23.5°C ± 2°C) / ±0.15% FS (0 to 60°C)
    Maximum Input Voltage ±30 Volts (no damage)
    Galvanic Isolation 1000 VAC RMS or ±1000 VDC (Icoupler)
    Operating Temperature 0 to 60 °C
    Storage Temperature -40 to 85 °C
    Size 6" Form Factor
    Weight Approx. 0.6 kg
    Country of Origin USA

    Technical Details

    Input Specifications

    • Type: Current (supports 2-wire or self-powered transmitters) .

    • Range: 4-20 mA (using a 250-ohm resistor on the IOTA) .

    • Normal Mode Rejection Ratio (60 Hz): 19 dB.

    • Crosstalk (dc to 60 Hz): -60 dB (channel-to-channel) .

    Environmental & Certification

    • Operating Temperature: 0 to 60 °C .

    • Storage Temperature: -40 to 85 °C .

    • Coating: Conformal coated for environmental protection .

    Applications

    This module is ideal for a wide range of industrial automation and process control environments, including:

    • Process Automation: Refineries, chemical plants, and power generation .

    • Distributed Control Systems (DCS): Integration with Honeywell Experion PKS and PlantCruise systems .

    • Field Signal Termination: Connecting 4-20 mA transmitters for pressure, temperature, and flow measurement .

    Ordering & Shipping Information



    Detail Information
    Condition New & Original (Factory Sealed)
    Warranty 12 Months
    Shipping Port Wuhan
    Lead Time 3-5 Days (In Stock)
    Payment Terms T/T
Hot Tags :

Honeywell 8C-TAIXA1

51307127-175

HONEYWELL Analog Input Module

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Subject : HONEYWELL 8C-TAIXA1 51307127-175 Analog Input Module

Related Products

  • New Honeywell 10105/2/1 Fail-safe High-density Analog Input Module
    New Honeywell 10105/2/1 Fail-safe High-density Analog Input Module

    The Honeywell 10105/2/1 is a fail-safe high-density analog input module from the Honeywell FSC (Fail-Safe Control) system, designed for safety-critical applications in process industries. It provides 16 analog input channels with a native input range of 0–4.1 V DC and an external voltage readback input, achieving safety class AK1–AK6 (AK6 in redundant mode).

  • New in Stock SIEMENS 6SL3224-0BE33-7AA0 SINAMICS G120 PM240 Power Module
    New in Stock SIEMENS 6SL3224-0BE33-7AA0 SINAMICS G120 PM240 Power Module

    The Siemens 6SL3224-0BE33-7AA0 is a PM240 Power Module for the SINAMICS G120 drive series. This robust unit delivers 37 kW (high overload) or 45 kW (low overload) and features an integrated Class A input filter and braking chopper, making it an ideal choice for demanding variable-speed drive applications.

  • New in Stock Honeywell FC-QPP-0002-V1-2 Quad Processor Pack Modules
    New in Stock Honeywell FC-QPP-0002-V1-2 Quad Processor Pack Modules

    The Honeywell FC-QPP-0002 V1.2 is a high-performance Quad Processor Pack (QPP) and the central processing unit for the Honeywell Safety Manager system. As the "heart" of the safety controller, it executes critical safety logic for Emergency Shutdown (ESD) and Fire & Gas (F&G) applications, ensuring SIL 3-compliant process protection through a robust, fault-tolerant architecture.

  • Honeywell 51305905-175 Resistance Temperature Detector New in Stock
    Honeywell 51305905-175 Resistance Temperature Detector New in Stock

    The Honeywell 51305905-175 is a high-precision RTD (Resistance Temperature Detector) input module designed for the Experion® PKS (Process Knowledge System). It is often paired with a matching termination board, such as the 51304754-150, to form a complete analog input channel for processing temperature signals from thermocouples (TCs) and RTDs.

  • Honeywell FC-TSDO-04UNI Safety Manager System Module
    Honeywell FC-TSDO-04UNI Safety Manager System Module

    The Honeywell FC-TSDO-04UNI is a 4-channel universal digital output Field Termination Assembly (FTA) module for the Honeywell Safety Manager and FSC (Fail Safe Control) systems. It interfaces between the safety controller and field devices, providing configurable relay or solid-state outputs with advanced loop diagnostics for critical ESD (Emergency Shutdown) and Fire & Gas applications.

  • Honeywell FS-SDOL-0424 Digital Output Module
    Honeywell FS-SDOL-0424 Digital Output Module

    The Honeywell FS-SDOL-0424 is a safe loop-monitored digital output module designed for the Honeywell Safety Manager and FSC (Fail Safe Control) systems. It provides four independent 24 VDC output channels, each capable of delivering 1 A, with built-in loop integrity monitoring to detect lead breakage and short circuits, making it ideal for safety-critical ESD (Emergency Shutdown) and F&G (Fire & Gas) applications.

  • Honeywell CC-PSP401 51454122-175 Speed Protection Module
    Honeywell CC-PSP401 51454122-175 Speed Protection Module

    The Honeywell CC-PSP401 51454122-175 is a dedicated Speed Protection Module (SPM) engineered for the Experion PKS Series-C control system. It provides high-integrity speed monitoring and overspeed trip execution for critical rotating machinery such as turbines, compressors, and pumps.

  • Honeywell CC-PAIM01 51405045-175 Analog Input Module

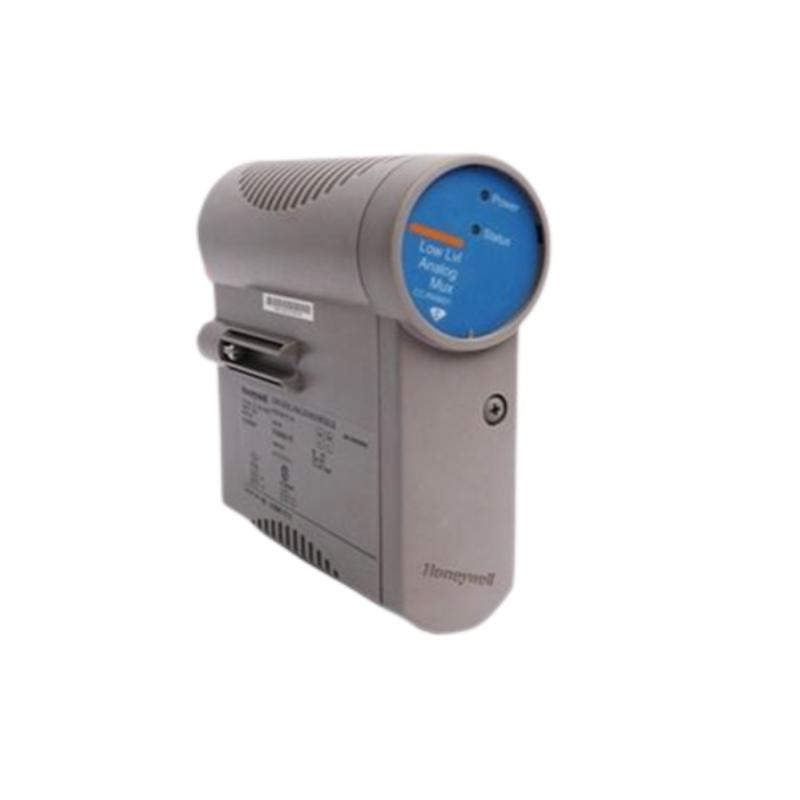

    Honeywell CC-PAIM01 51405045-175 Analog Input Module
