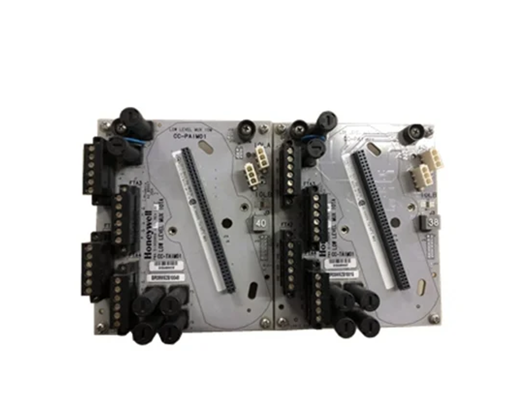

Honeywell CC-TAIM01 51305959-175 Low-level Analog Input Modules

Product Details

General Information

Input Specifications

Isolation & Electrical

Recommended Alternative Models

FAQs

1: What signal types does the CC-TAIM01 51305959-175 support?

A: The module supports low-level analog signals from thermocouples (J, K, T, E, R, S, B, N types), RTDs (Pt100), and millivolt-level sensors (-20 to +100 mV) . For 4-20mA signals, an external converter is required.

2: What is the channel count and scan rate?

A: The CC-TAIM01 provides 64 fully isolated analog input channels with a scan rate capable of processing all 64 channels per second.

3: Does this module perform the actual signal conversion?

A: No. The CC-TAIM01 is a termination assembly (IOTA) that handles field wiring termination and signal conditioning. A separate processing module (such as the CC-PAIM01 LLMUX module) performs the A/D conversion .

4: Can this module be hot-swapped?

A: Yes, under certain conditions. The module supports hot-swapping when the system is configured for redundancy or when maintenance procedures allow, enabling replacement without full system shutdown .

5: What are the typical applications for this module?

A: The module is widely used in power generation (boiler thermocouples, turbine exhaust monitoring), chemical and refining (reactor temperature, distillation columns), pharmaceutical (fermentation, sterilization), and metals processing (furnace temperature monitoring)
