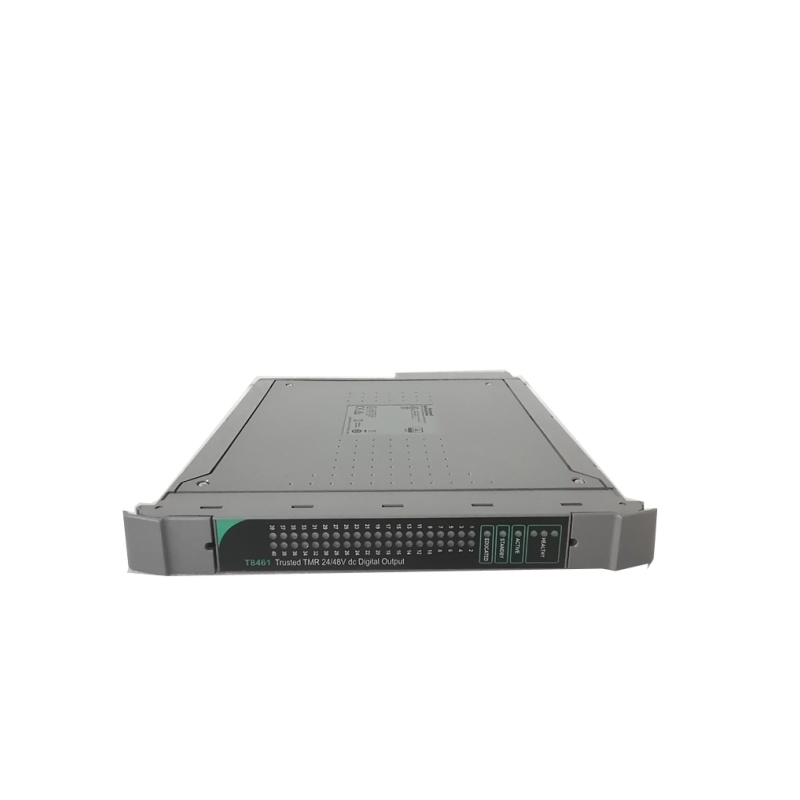

Q1: What is the primary function of the T8461C?
It is a 40-channel digital output module for the Trusted TMR Safety Instrumented System. It drives field actuators such as solenoid valves, trip relays, and ESD (Emergency Shutdown) valves in safety-critical applications .
Q2: What is the difference between T8461 and T8461C?
The T8461C is the conformal-coated version with full-PCB coating for G3 corrosion resistance (salt-mist, humidity, corrosive gas). It uses C-series firmware only — B-version firmware cannot be loaded into the C version. They are pin-to-pin mechanically compatible but firmware-incompatible, so part numbers must be matched strictly during replacement .
Q3: How does the TMR architecture work?
Each output channel uses three independent drive circuits. A hardware 2-out-of-3 voting mechanism determines the actual output state, so a single circuit fault cannot cause a wrong output. Faulty paths are automatically isolated, ensuring continuous safe operation .
Q4: Is the T8461C hot-swappable?
Yes. It supports hot-swap via Companion Slot or SmartSlot configurations, allowing module replacement without system shutdown or disrupting adjacent modules .
Q5: What is the matching terminal assembly for field wiring?
The T8850 Field Termination Assembly (FTA) is the designated companion for the T8461/T8461C. It provides signal transfer, grouped power distribution, and independent short-circuit protection between the TMR output card and field actuators. The T8861 VFTA is also fully compatible with the T8461C.
