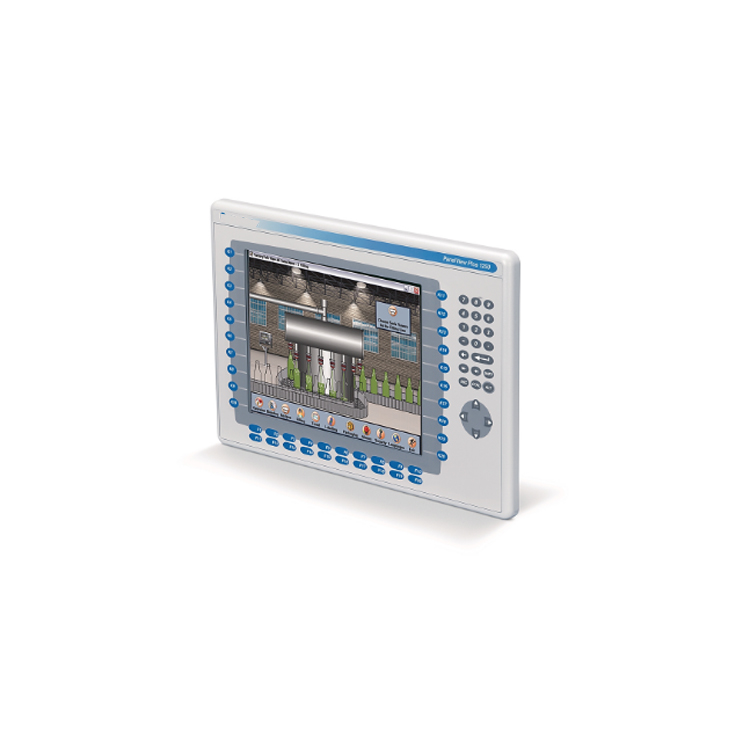

Allen Bradley 2711P-K10C15D1 PanelView Plus 1000 Keypad/ControlNet Terminal

Core Advantages

• Dual Input Flexibility: The integrated keypad provides an alternative to touchscreen input, featuring a full numeric keypad and dedicated function keys for fast, error-resistant data entry. The 10.4-inch color TFT display with 640 x 480 resolution delivers clear visualization of process graphics, trends, and alarms.

• ControlNet Deterministic Communication: The built-in ControlNet interface ensures scheduled, time-critical data exchange with PLC controllers, supporting deterministic network slots for synchronized input polling and display refresh. This makes the terminal particularly suited for legacy ControlNet architectures requiring reliable, repeatable communication timing.

• Robust Industrial Construction: Built to withstand harsh conditions including vibration, dust, and typical industrial temperatures, the terminal operates reliably in ambient temperatures from 0°C to 55°C with humidity levels from 5% to 95% (non-condensing). The panel-mount design with IP65 front protection ensures durability in factory floor environments.

• Field-Replaceable Components: The LED backlight module (2711P-RL10C) is field-replaceable, reducing maintenance downtime and extending operational life. The modular design includes separate logic and display modules for simplified serviceability.

• Seamless Rockwell Integration: Designed for native integration with Allen-Bradley control platforms, the terminal uses FactoryTalk View Studio software for configuration and runs FactoryTalk View Machine Edition applications, providing a consistent development environment across the Rockwell ecosystem.

Technical Parameters

Application Scenarios

The Allen Bradley 2711P-K10C15D1 is essential in various industrial automation systems requiring precise and reliable operator interface:

• Automotive Assembly Lines: Provides reliable operator interface for production monitoring, quality control, and equipment status visualization in ControlNet-based manufacturing systems.

• Metallurgical Processing: Used in harsh environments where keypad input is preferred over touchscreen operation, supporting process monitoring and control in steel and aluminum production.

• Water Treatment Facilities: Enables monitoring and control of pump stations, filtration systems, and chemical dosing equipment with dependable ControlNet communication.

• Large Packaging Equipment: Facilitates recipe management, production tracking, and alarm handling in high-speed packaging lines.

• Legacy DCS Systems: Provides modern HMI capabilities for older distributed control systems requiring ControlNet connectivity and keypad-based operation.

• OEM Machine Panels: Ideal for original equipment manufacturers requiring integrated HMI solutions with tactile input for gloved operators or environments prone to screen contamination.

What Is Included

• 1 x Allen Bradley 2711P-K10C15D1 PanelView Plus 1000 Terminal

• Original Factory Packaging (New & Original)

Before You Buy

• Stock Status: In Stock – Ready for immediate dispatch.

• Condition: New and Original. Each unit is 100% tested and verified before shipping.

• Installation: Installation must be performed by qualified technicians. Ensure all power sources are disconnected before installation.

• Warranty: Comes with a standard 12-month warranty covering defects in materials and workmanship.

Frequently Asked Questions

Q: What does the model number 2711P-K10C15D1 represent?
A: The model number breaks down as follows: 2711P = PanelView Plus series HMI; K = Keypad input; 10 = 10.4-inch screen; C = Color TFT display; 15 = Built-in ControlNet communication interface; D1 = DC power supply model (18-32 VDC).

Q: How do I enter Configuration Mode on this keypad-only terminal?
A: For keypad-only PanelView Plus 1000 terminals, press the F1 key to enter the runtime function-key overlay, then press the soft-key labeled TERM on the keypad bezel and select Configuration. If this method fails, power cycle the terminal and within 3 seconds press and hold F1 and F8 until the Configuration Mode menu appears.

Q: What software is required to program this terminal?
A: The terminal is configured using Rockwell Automation's FactoryTalk View Studio software and runs FactoryTalk View Machine Edition applications. Supported firmware spans versions 3.13 to 4.48, and runtime applications must match FactoryTalk View ME version constraints to avoid project conversion errors.

Q: Can the backlight be replaced in the field?
A: Yes, the 2711P-RL10C backlight assembly is field-replaceable. However, replacement requires power removal due to internal inverter discharge constraints.

Q: What controllers are compatible with this terminal?
A: The 2711P-K10C15D1 is designed for native integration with Allen-Bradley ControlLogix, CompactLogix, PLC-5, and SLC 500 controllers, particularly those using ControlNet network architectures.

Q: How fast can you ship this module?
A: As this is a stock item, we typically ship within 24 hours of order confirmation via global express services like DHL or FedEx.

Recommending Models

The 2711P-K10C15D1 works seamlessly with the following Allen-Bradley PanelView Plus components and accessories:

• 2711P-T10C15D1: Touchscreen version of the same terminal with identical ControlNet communication and DC power specifications.

• 2711P-T10C4D1: PanelView Plus 1000 touchscreen terminal without ControlNet, featuring only Ethernet and serial communication.

• 2711P-T10C21D8S: PanelView Plus 7 10-inch replacement model (no built-in ControlNet; requires additional CN module).

• 2711P-RL10C: Field-replaceable LED backlight module for PanelView Plus 1000 10.4-inch displays.

• 1747-KFC15A: Communication cable for connecting PanelView Plus terminals to PLC systems.
