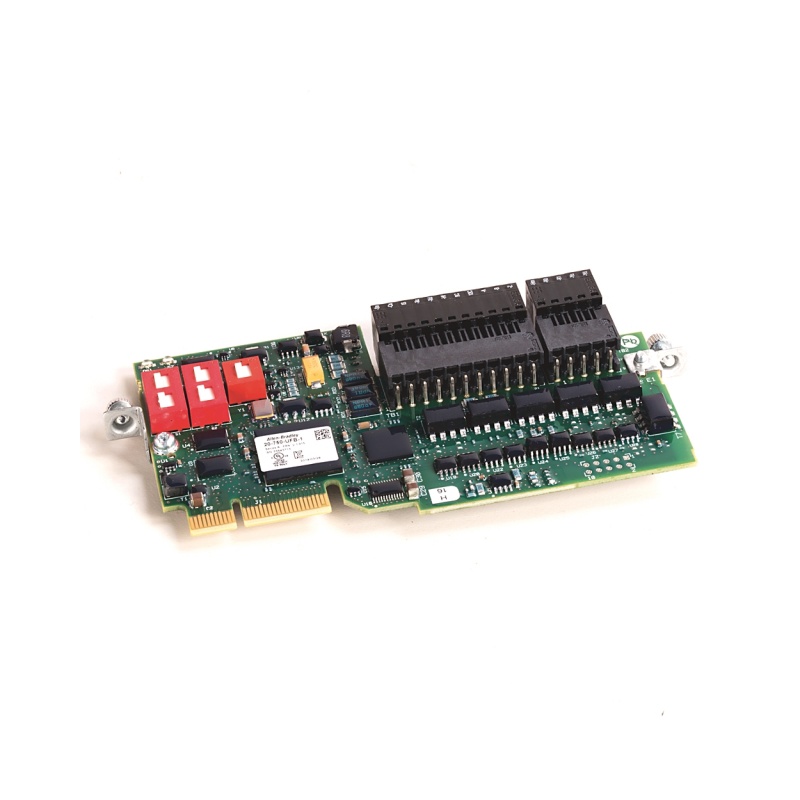

Allen Bradley 20-750-UFB-1 Universal Encoder Option Module New in Stock

Product Details

Related Product Model Recommendations

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the 20-750-UFB-1?

It is a universal feedback encoder option module that enables the PowerFlex 755 drive to accept feedback signals from a wide range of encoder technologies. This allows for closed-loop speed regulation and precise position control in demanding motion control applications .

Q2: What encoder types are compatible with this module?

The 20-750-UFB-1 supports a broad range of encoders including Heidenhain (EnDat), SSI, Stegmann (Hiperface), BiSS, Stahl (Linear), Temposonics (Linear), and standard 5 V incremental encoders . This flexibility makes it suitable for diverse motor feedback requirements.

Q3: Does this module require any additional option modules?

Yes. The 20-750-UFB-1 is used only when a Safe Speed Monitor option module (20-750-S1 or 20-750-S4) is also installed. Both modules must be installed on the same backplane (ports 4, 5, or 6) for proper operation .

Q4: What is the maximum encoder input frequency and cable length?

The module supports a maximum input frequency of 250 kHz  and a maximum cable length of 30 meters (100 feet) at 5 V DC .

Q5: What are the typical applications for this module?

Typical applications include motion control systems requiring precise positioning, speed regulation, and homing functions in industries such as packaging, material handling, and manufacturing. It is particularly suited for integrated motion and safety systems where the Safe Speed Monitor is used.
