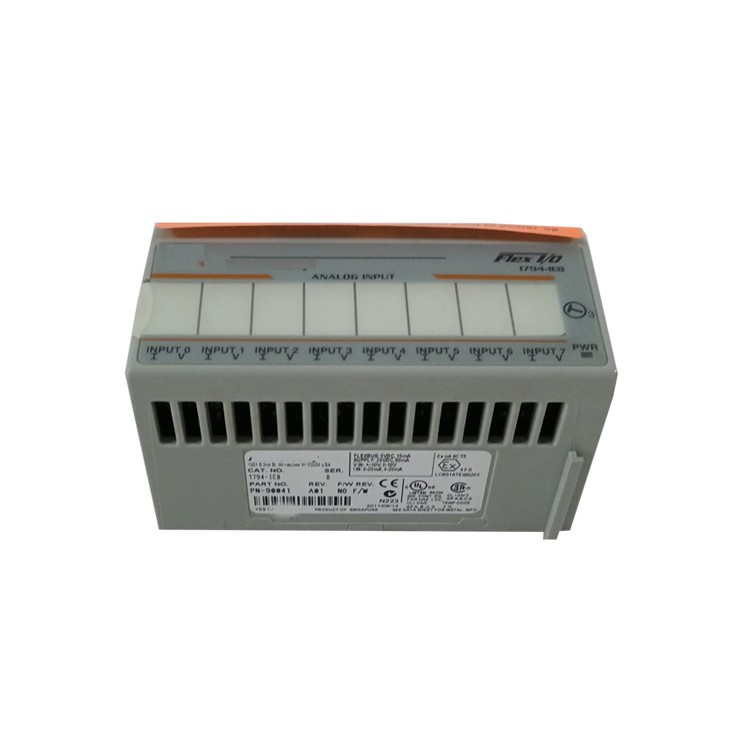

Allen Bradley1794-IE8H Flex I/O Analog Input Module 8 Single-Ended Inputs in stock
| Model Number |
1794-IE8H |
| Place of Origin |
USA |
| Dimension/Weight |
0.5kg |
| Condition |
new and original |
| Warranty |
1 year |
Shipping term
|
DHL Fedex TNT EMS UPS |
| Payment |
TT / Western Union |
| Delivery Time |
3-5 days |
Service
|
24 Hours Online Service |
Below are its key parameters and features:
Core Features & Advantages
-
Integrated HART Communication for Smart Diagnostics: The module's standout feature is its ability to combine traditional 4-20mA analog measurement with HART digital communication. This allows access to valuable field device data—including device status, secondary variables, diagnostic alerts, and configuration parameters—without the need for external HART multiplexers or additional wiring.
-
High-Resolution Precision Measurement: With 16-bit resolution and ±0.1% full-scale accuracy, the module ensures reliable analog signal acquisition for critical process variables. The built-in, selectable input filters provide flexibility to balance noise immunity against response speed.
-
Flexible Configuration and Onboard Diagnostics: The module supports per-channel configurability for input range, data format, and alarm thresholds. Onboard diagnostics detect lead breakage, overrange/underrange, and remote transmitter alarms, with LED indicators providing local status visualization.
-
Seamless Integration with Control Systems: Compatible with Flex I/O adapters for ControlNet, EtherNet/IP, and PROFIBUS networks, the module uses block transfer (BTW/BTR) commands to exchange data with Allen Bradley controllers. It supports FDT-based asset management software via DTMs and integrates with PlantWeb or AMS platforms.
Typical Applications
The 1794-IE8H is widely used in process and hybrid industries where intelligent field device integration provides operational advantage:
-
Oil & Gas / Refining: Monitoring HART-enabled pressure, temperature, and flow transmitters on pipelines and distillation columns
-
Chemical Manufacturing: Integrating smart pH sensors, conductivity analyzers, and density meters in batch processes
-
Water & Wastewater: Connecting to intelligent level and turbidity sensors throughout treatment stages
-
Pharmaceutical Production: Interfacing with precision RTDs and pressure transducers for critical temperature and pressure monitoring
-
Power Generation: Monitoring turbine vibration probes and steam pressure transmitters with condition-based maintenance capability
Frequently Asked Questions (FAQ)
Q1: What is the primary difference between the 1794-IE8 and the 1794-IE8H?
A: The 1794-IE8H is the HART-enabled version, providing integrated HART communication capability on top of standard analog input functionality. The 1794-IE8 is a standard analog input module without HART support. The HART version includes a built-in HART modem, although all 8 channels share a single modem and communicate via polling.
Q2: Does the 1794-IE8H support HART multidrop configurations?
A: No. This module operates in point-to-point HART mode only, with one HART device per input channel. Each channel maintains its 4-20mA analog signal while supporting HART digital communication.
Q3: Can I mix HART and non-HART devices on the same module?
A: Yes. The 1794-IE8H functions as a standard analog input module for conventional 4-20mA transmitters while providing HART communication capability for intelligent devices on any or all channels. HART communication can be individually enabled or disabled per channel.
Q4: What is the maximum cable length between the module and HART devices?
A: Standard twisted-pair instrumentation cable supports distances up to 3,000 feet (914 meters) with proper cable capacitance specifications, typically less than 65 pF/ft. Longer runs may require HART repeaters.
Q5: What terminal bases are compatible with the 1794-IE8H?
A: The module is compatible with 1794-TB3G (screw clamp) and 1794-TB3GS (spring clamp) terminal bases.
Q6: Does the 1794-IE8H support hot-swapping?
A: The 1794-IE8H supports online insertion/removal when installed in a Flex I/O system with a compatible communication adapter and proper system configuration. However, always refer to system-specific guidelines before performing live insertion.
Q7: What is the maximum HART communication update rate?
A: Since the module's 8 channels share a single HART modem, all enabled HART channels communicate via polling. When multiple HART channels are enabled, the overall HART data refresh time will increase proportionally.
Recommended Models & Related Products
The 1794-IE8H is part of the Flex I/O HART analog module family. Below are key related models:
