Allen‑Bradley 1783‑SFP100LX 100BASE‑LX Fiber SFP Transceiver

Product Specification

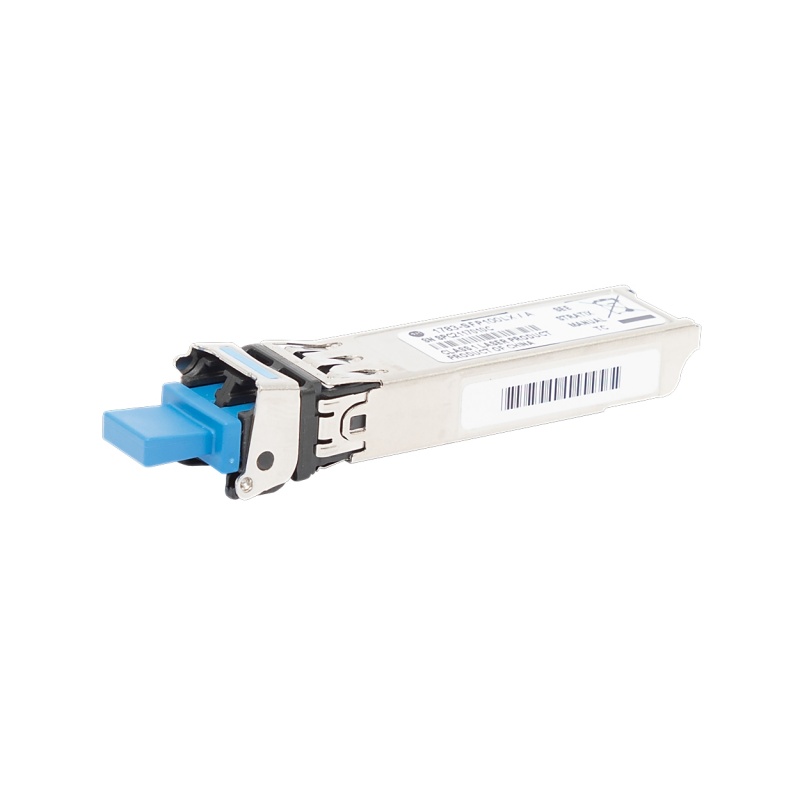

Allen Bradley 1783-SFP100LX Fiber Transceiver

Key Features

Technical Specifications

Applications

The 1783‑SFP100LX is designed for use with Rockwell Automation products that support SFP modules, including:

• Stratix Switches – Provides fiber uplink connectivity for Stratix industrial Ethernet switches

• FLEX 5000 Adapters – Supports EtherNet/IP network transceiver modules in SFP format

• Stratix 5400/5700 Switches – Offers fiber‑optic uplink interfaces for send (TX) and receive (RX)

• Industrial Network Backbones – Enables long‑distance connections between facilities or remote equipment

• Government and Infrastructure Projects – TAA compliance qualifies it for use in federally funded applications

Compatibility Notes

• Certified Modules: Use only Rockwell Automation SFP modules (1783‑SFP100FX, 1783‑SFP100LX, 1783‑SFP1GSX, or 1783‑SFP1GLX) to ensure proper initialization by device firmware .

• Cable Matching: Both ends of a fiber link must use identical fiber types and modules .

• Auto‑Negotiation: Fiber SFP modules do not support auto‑negotiation; the network settings must be configured accordingly .

• Third‑Party Compatibility: Compatible transceivers are available from third‑party suppliers, but Rockwell Automation strongly recommends official modules to avoid initialization failures .

Key Benefits

Important Notes

• Installation Precautions: Do not insert or remove the SFP module with fiber‑optic cables attached, as this can damage cables or connectors .

• Hot‑Swapping: The module supports live insertion and removal, but it is recommended to avoid excessive handling to prolong its useful life .

• Physical Interference: If the SFP module cannot be fully inserted, rotate it 180° and try again; do not force insertion .

• Eye Safety Warning: Looking into optical SFP transceivers can pose an eye hazard under certain conditions .

FAQ

Q1: What is the maximum distance supported by the 1783‑SFP100LX?

A: The module supports fiber optic cable lengths up to 10 kilometers over single‑mode fiber .

Q2: What type of fiber optic cable does this SFP use?

A: It is designed for single‑mode fiber (SMF) with G.652 compliant core/cladding specifications .

Q3: What wavelength does the 1783‑SFP100LX operate at?

A: It operates at a wavelength of 1310 nm .

Q4: What products is this SFP compatible with?

A: It is compatible with Rockwell Automation Stratix switches, FLEX 5000 adapters, and other devices with SFP slots that support 100BASE‑LX optics .

Q5: What is Digital Optical Monitoring (DOM)?

A: DOM allows the network device to access real‑time operating parameters of the transceiver, such as optical power, temperature, and bias current, for enhanced network management and diagnostics .

Q6: Is the 1783‑SFP100LX TAA compliant?

A: Yes, the module is TAA compliant, making it suitable for U.S. government and federally funded projects .

Q7: What is the lifecycle status of this product?

A: The 1783‑SFP100LX is currently Active and fully supported by Rockwell Automation with a 1‑year standard warranty .

Q8: Can I use third‑party SFP modules with Rockwell products?

A: While compatible third‑party modules are available, Rockwell Automation strongly recommends using official Allen‑Bradley SFPs to ensure proper detection and initialization by the firmware.
