The Allen‑Bradley 1769‑SDN is a Compact I/O DeviceNet Scanner Module designed for the CompactLogix and MicroLogix 1500 controller platforms. It acts as a scanner on the DeviceNet network, collecting I/O data from up to 63 slave devices via strobe, poll, change‑of‑state, or cyclic messages, and makes that data available to the controller for application logic
Item No :
1769-SDNOrder(MOQ) :
1 PiecePayment :
EXWProduct Origin :
USAShipping Port :
WuhanLead Time :
3~5 daysWeight :
3kg| Specification | Description |
|---|---|
| Manufacturer | Rockwell Automation (Allen‑Bradley) |
| Model | 1769‑SDN |
| Product Family | Compact I/O / CompactLogix |
| Product Type | DeviceNet Scanner Communication Module |
| Compatible Controllers | CompactLogix 5370 L2/L3, MicroLogix 1500; NOT compatible with CompactLogix 5370 L1 controllers (e.g., L16ER) which do not support 1769 CompactBus |
| Number of Nodes Supported | Up to 63 DeviceNet slave devices |
| Communication Rates | 125 Kbps, 250 Kbps, or 500 Kbps (selectable) |
| I/O Messaging Modes | Strobe, Poll, Change of State (COS), Cyclic |
| Backplane Current Draw | Series A: 450 mA @ 5V DC (2.25W); Series B: 500 mA @ 5V DC (2.5W) |
| Mounting | DIN rail or panel mount |
| Status Indicators | Module status (red/green), Network status, I/O status, Diagnostic status |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Protection Class | Open‑type equipment (must be installed in an enclosure) |
| Hazardous Location | Suitable for Class I, Division 2, Groups A, B, C, D |
| Weight | Approx. 0.16 – 0.28 kg (0.35 – 0.62 lbs) |
| Configuration Software | RSNetWorx for DeviceNet (version 3.00 or later) for scanlist and device configuration; RSLogix 5000 / Studio 5000 for controller integration |
| Lifecycle Status | Discontinued / Legacy (DeviceNet platform approaching end‑of‑life) |
| Model | Description | Typical Application |
|---|---|---|
| 1788‑EN2DNR | Ethernet/IP to DeviceNet bridge adapter; Rockwell‑recommended alternative for legacy DeviceNet support when migrating to newer controllers | Connecting CompactLogix 5370 L1 controllers (e.g., L16ER) to DeviceNet networks; transitioning to Ethernet/IP while preserving DeviceNet assets |
| 5069‑SDN (Softing compactLink HW‑DN) | DeviceNet communication module for in‑chassis installation in 5380 controller platform; supports 63 nodes, AutoScan function; designed for migration from 1769‑SDN to new platforms | Modernization path from 1769 CompactLogix to 5380 platform while retaining DeviceNet connectivity |
| 1769‑L30ERM / L33ER / L36ER | CompactLogix 5370 L3 controllers with 1769 CompactBus support | Controllers that fully support the 1769‑SDN scanner module |
| 1769‑AENTR | Ethernet/IP to DeviceNet bridge adapter (alternative solution; referenced in Rockwell Tech Note QA76228) | Adding DeviceNet connectivity to systems without 1769 CompactBus support |
| 1770‑KFD | RS‑232 to DeviceNet adapter | PC configuration tool for connecting RSNetWorx to DeviceNet network |
| 3BHE046836R0102 | 3BHE013088R001 | 3BHE014135R0011 |
| 3BHE027632R0101 | 3BHE014070R0101 | 3BHE037864R0108 |
| 3BSE082896R1 PM858K02 | 3BHE030579R0003 | 3BHE041626R0101 |
| 3BHE009681R0101 5SHY4045L0001 | 3BHE024747R0101 | 3BHE032025R1101 |
| 3BHE030579R0003 | 3BHE024855R0101 | 3BHE024313R0101 |
| 3BHB003041R0101 | 3BHE032025R1101 | 3BHE008128R0001 |
| 3BHB004661R0101 | 3BHE021887R0101 | 3BSE050091R65 |
| 3BHB018162 | 3BHE024577R0101 | 3BHE009319R0001 |
| 3BHB003041R0101 UFC719AE01 | 3BHB003041R0101 | 3BHE020455R0001 |
| 3BSE042238R2 PP846A | 3BHE022293R0101 | 3BHE025088R6618 |
Q1: Which controllers are compatible with the 1769‑SDN?
The 1769‑SDN is compatible with CompactLogix 5370 L2 and L3 controllers (e.g., L24ER, L30ERM, L33ER, L36ER) and MicroLogix 1500 controllers. It is NOT compatible with CompactLogix 5370 L1 controllers (e.g., L16ER, L18ER) as these do not support the 1769 CompactBus architecture.
Q2: Is the 1769‑SDN still in production or has it been discontinued?
The 1769‑SDN is considered a legacy/discontinued product as Rockwell Automation has been transitioning away from DeviceNet toward Ethernet/IP. DeviceNet was officially discontinued in late 2024. The module is now only available through the used/refurbished market.
Q3: What is the difference between the 1769‑SDN and Softing 5069‑SDN?
The 1769‑SDN is Rockwell's original DeviceNet scanner for CompactLogix (legacy, discontinued). The 5069‑SDN (Softing compactLink HW‑DN) is a third‑party alternative designed for Rockwell's current 5380 controller platform, providing a migration path for users upgrading from 1769 CompactLogix while retaining DeviceNet device connectivity.
Q4: How do I configure the 1769‑SDN scanlist?
The scanlist is configured using RSNetWorx for DeviceNet software (version 3.00 or later). The software connects to the scanner via an RS‑232 DeviceNet adapter (e.g., 1770‑KFD) or PC card. After building the scanlist and mapping I/O, you download the configuration to the scanner. The controller must be in Program mode or the scanner in Idle mode to accept configuration changes.
Q5: Can I replace a 1769‑SDN with a newer module without changing my DeviceNet devices?
Yes, but options depend on your controller platform:
If staying on CompactLogix 5370: Use the 1788‑EN2DNR bridge adapter as a replacement.
If migrating to 5380 platform: The 5069‑SDN (Softing) provides in‑chassis DeviceNet connectivity.
For L1 controllers (e.g., L16ER): Use 1769‑AENTR or an external gateway (e.g., RTA 460ESDM‑N34‑D).
For long‑term sustainability, Rockwell recommends gradually migrating DeviceNet devices to Ethernet/IP equivalents.

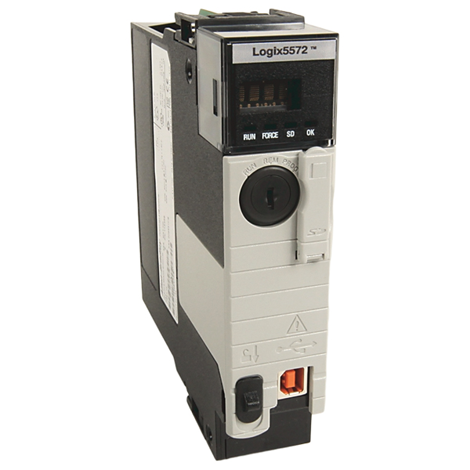

The Allen-Bradley 1756-L72 is a ControlLogix 5572 programmable automation controller featuring 4 MB of user memory and 0.98 MB of I/O memory. It supports up to 128,000 digital I/O points and 4,000 analog I/O points, making it ideal for medium-to-large scale industrial automation applications.
The Allen‑Bradley 1769‑SDN is a Compact I/O DeviceNet Scanner Module designed for the CompactLogix and MicroLogix 1500 controller platforms. It acts as a scanner on the DeviceNet network, collecting I/O data from up to 63 slave devices via strobe, poll, change‑of‑state, or cyclic messages, and makes that data available to the controller for application logic

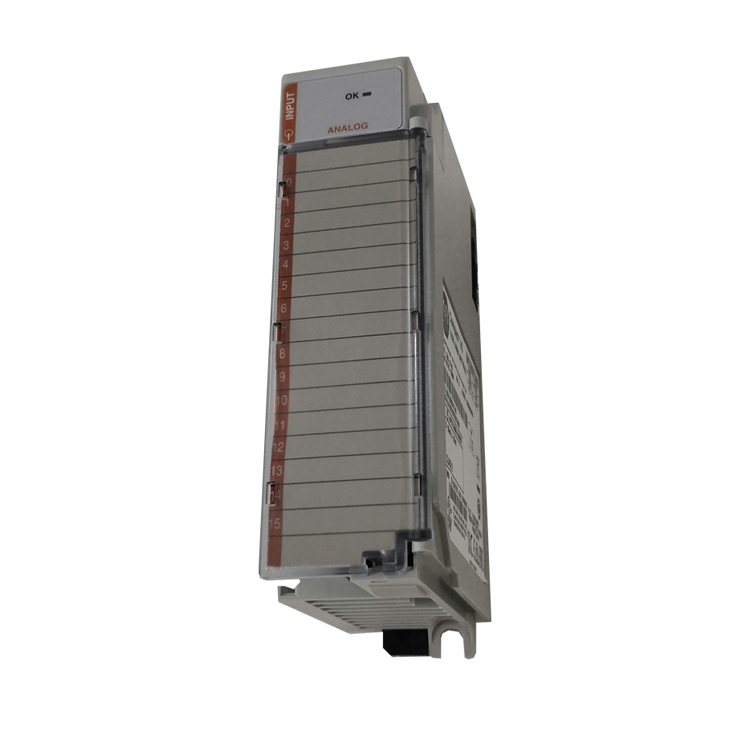

The Allen Bradley 1769-IF4 is a 4-channel analog input module for the CompactLogix and MicroLogix 1500 systems. Its core function is to convert analog signals from field sensors—such as pressure transducers, temperature transmitters, and flow meters—into digital values for the controller to process. It supports multiple current and voltage signal types with 14-bit resolution and offers built-in diagnostics for reliable operation.

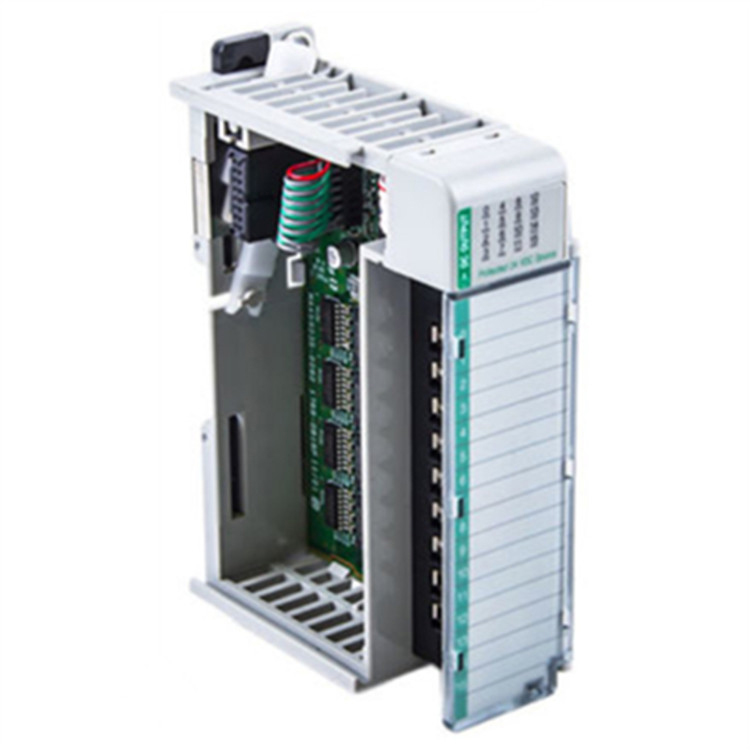

The Allen Bradley 1769-IF4I is a 4-channel isolated analog input module for the CompactLogix and MicroLogix 1500 systems. Its core function is to convert analog current or voltage signals from field sensors—such as pressure transducers, temperature transmitters, and flow meters—into digital values for the controller. The "I" in the model number signifies isolated, meaning each of the four input channels is electrically isolated from the others and the backplane, providing superior noise immunity and protection against ground loops in demanding industrial environments.
