Allen-Bradley 1756-OF8 ControlLogix Analog Output Module

Products Description

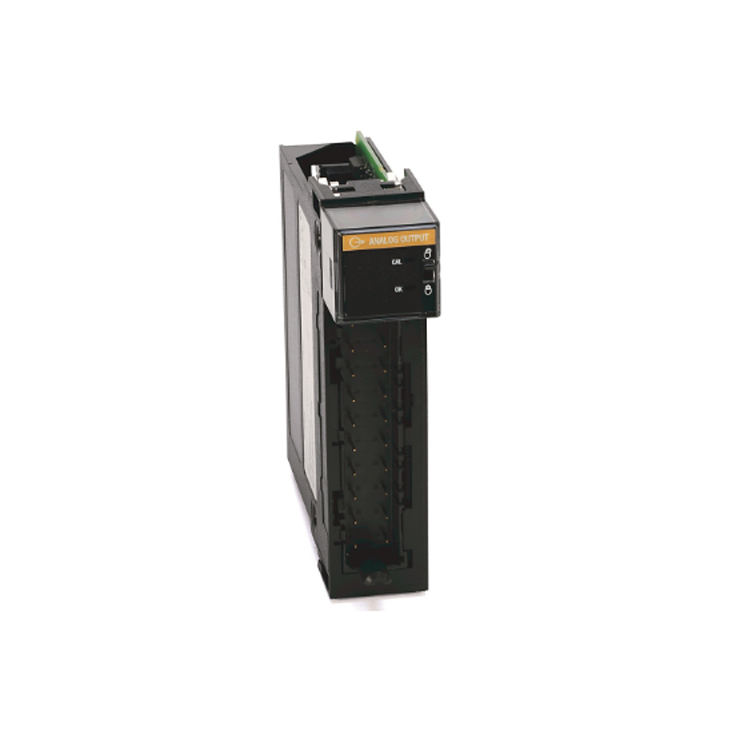

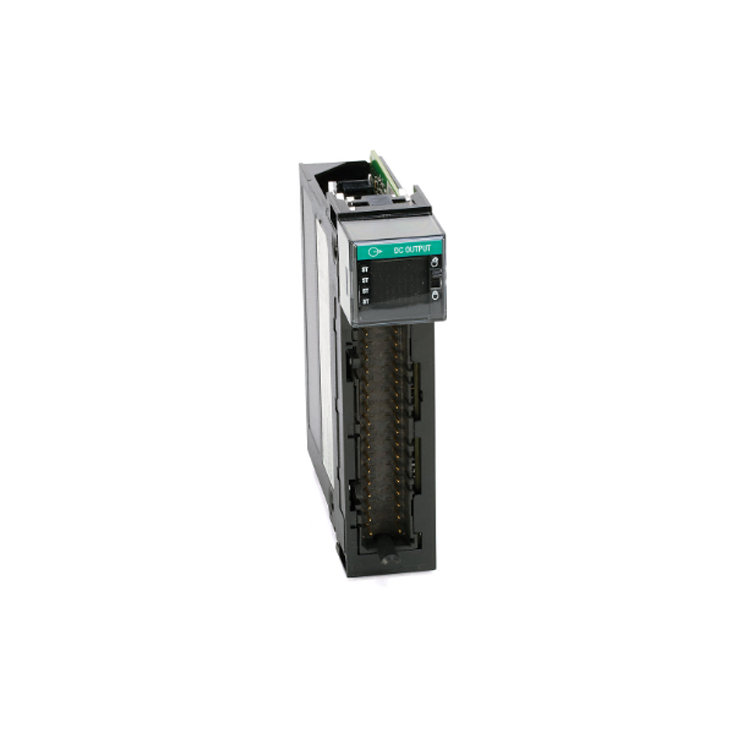

Allen-Bradley 1756-OF8 ControlLogix Analog Output Module, Current/Voltage, 8 Pts

Core Features & Advantages

• Flexible Configuration for Diverse Applications: The module's standout feature is its per-channel configurability for either voltage (±10.4V) or current (0-21 mA) . This allows a single module to support various field devices and adapt to changing application needs. The 15-bit resolution provides fine-grained control for precise analog output .

• Robust Protection and Diagnostics: The 1756-OF8 is designed for reliability, featuring open-circuit detection for current outputs and short-circuit protection that electronically limits current to prevent damage . Diagnostic LEDs and software-accessible status bits provide rapid troubleshooting of module and channel health .

• Seamless ControlLogix Integration: As a native 1756-series module, it integrates directly into the ControlLogix chassis, supporting both local and distributed I/O configurations via ControlNet or EtherNet/IP networks . Data can be represented in integer or IEEE 32-bit floating-point format for flexibility with controller tags .

Typical Applications

The 1756-OF8 is widely used in industrial automation applications requiring precise analog output control, including:

• Process Control: Driving current-to-pressure (I/P) transducers for valve positioners, flow control, and pressure regulation.

• Machine Control: Controlling variable frequency drives (VFDs) for speed and torque control in conveyors, mixers, and material handling equipment.

• Test & Measurement: Generating reference signals for calibration or simulation purposes.

Packing&Delivery

In order to save the freight and reduce your budget, we choose the packaging for environment-friendly. We use foam board with 3 cm thick to fill in all around the box inside to protect parts, then use carton to pack the parts, but if they are too heavy, we will customized the wooden box for them.Shipping term DHL Fedex TNT EMS UPS.

Frequently Asked Questions (FAQ)

Q1: What is the resolution of the 1756-OF8?

A: The module offers 15-bit resolution across both its voltage and current output ranges, providing precise analog control. For the 0-21 mA current range, this translates to a resolution of 650 nA per bit, and for the ±10.4V voltage range, it's approximately 320 µV per bit.

Q2: What are the power requirements and dissipation?

A: The module draws 140 mA from the 5V backplane supply and 210 mA from the 24V backplane supply. Maximum power dissipation is 4.9 Watts at 60°C.

Q3: What are the load requirements for current vs. voltage outputs?

A: This is a common point of confusion. For 4-20 mA current outputs, the module can directly drive loads from 0 Ω to 750 Ω and provides the loop power internally, so no external 24V supply is needed. For voltage outputs (±10V), the minimum load requirement is 2 kΩ.

Q4: Why is my 1756-OF8 module showing a solid red OK LED?

A: A solid red OK LED indicates a major fault. Try these steps:

1. Check the fault code: In Studio 5000, right-click the module in the I/O tree, select Properties, and view the Module Info tab.

2. Attempt a reset: Use the Reset Module button in the Module Properties dialog.

3. Perform a RIUP (Removal and Insertion Under Power): Power down the chassis (or use the RIUP function), remove the module, check for pin damage, re-insert it firmly, and cycle power.

4. Verify configuration: Ensure channel configurations match the wiring (e.g., a current output channel with no load will fault). If the issue persists, the module may need to be replaced.

Q5: How do I correctly set up the output scaling for a 4-20mA signal?

A: You can configure the module's scaling directly in Studio 5000. For a 4-20mA output, you can set the "High Engineering" value to 32767 (or your process range's high value) and the "Low Engineering" value to 0 (or your process range's low value). The module handles the internal conversion to its 12-bit (4096 count) raw output. Do not manually scale the PID output in the logic if you use the module's built-in scaling feature.
