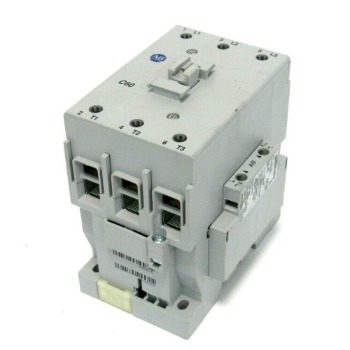

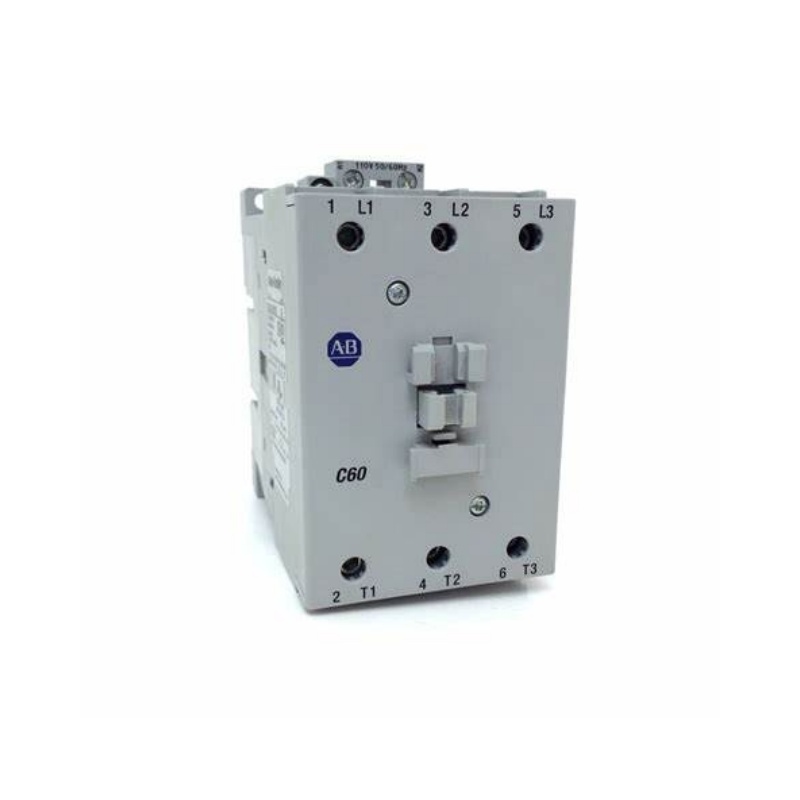

The Allen-Bradley 100-C60*00 is a 3-pole IEC-rated contactor from Rockwell Automation's Bulletin 100-C series . Designed to control motors and other loads in industrial automation applications, this compact contactor combines high switching power with space-saving design.
The "C60" designation indicates a 60A AC-3 current rating and 32kW switching power at 400V, making it suitable for controlling medium-sized motors up to 40 HP at 460V . The asterisk (*) in the model number indicates the coil voltage variant, with options available for both AC and DC control voltages.
Item No :
100-C60*00Order(MOQ) :
1Payment :
EXWProduct Origin :
SwitzerlandShipping Port :
Wuhan, Hubei, ChinaLead Time :
3-5 daysWeight :
0.5kgProduct Specification
Allen-Bradley 100-C60*00 IEC Rated Contactor
IEC 60A 3-Pole Contactors for Motor Control
60A IEC Rating (AC-3): Rated for 60A continuous current under AC-3 duty, suitable for starting and stopping motors with high starting currents
100A AC-1 Rating: Supports 100A for non-inductive or slightly inductive loads (resistive)
32kW Motor Power: Capable of switching motors up to 32kW at 400V AC-3 duty
3 Normally Open Main Contacts: Standard 3-pole configuration for 3-phase motor control
Built-in Surge Suppression: DC coil models include integrated surge suppression for extended contact life
IP2X Finger Protection: Touch-safe design for operator safety and device protection
DIN Rail Mounting: Compatible with 35mm DIN mounting rails for fast, tool-free installation
Reversible Coil Terminations: Coil can be terminated on either the line or load side, offering flexible wiring options
Common Accessories: Shares common auxiliary contacts, timing modules, and control modules across all 100-C sizes
RoHS Compliant: Manufactured with environmentally friendly materials
| Category | Specification |
|---|---|
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Series | Bulletin 100-C IEC |
| Rated Operation Current (AC-3, 400V) | 60A |
| Rated Operation Current (AC-1, 400V) | 100A |
| Rated Operation Power (AC-3, 400V) | 32 kW |
| Contact Configuration | 3NO (3 Normally Open Main Contacts) |
| Coil Voltage Options | 24V DC, 110V AC, 230V AC, etc. (varies by suffix) |
| Contact Voltage Rating | Up to 690V AC |
| Horsepower (3-Phase, 460V) | 40 HP |
| Horsepower (3-Phase, 230V) | 20 HP |
| Terminal Type | Screw connections |
| Mounting | 35mm DIN rail or panel mount |
| Dimensions (W x H x D) | Approx. 72 x 122 x 117 mm |
| Operating Temperature | -25°C to +60°C |
| Auxiliary Contacts | 0 N.O. / 0 N.C. (base model) |
| Certifications | IEC 60947, UL508, CSA22.2, CE |
| Country of Origin | Switzerland |
The "100-C60*00" product family represents the base model. Additional suffix letters specify coil voltage:
| Suffix | Coil Voltage |
|---|---|
| C60D*00 | 24V DC (e.g., 100-C60DJ00) |
| C60KF00 | 230V AC 50/60Hz |
| C60UT00 | 240V 50Hz / 277V 60Hz |
| C60DQ10 | 12V DC (with 1 NO auxiliary) |
The "00" suffix indicates no built-in auxiliary contacts (0 N.O. / 0 N.C.) . Auxiliary contact blocks can be added separately via front or side mounting.
| Component | Function |
|---|---|
| Coil | Energized by control voltage to magnetically close the main contacts |
| Main Contacts (3NO) | 3-pole switching for 3-phase AC motor circuits |
| Auxiliary Contacts | Optional add-on contacts for status feedback or interlocking |
| Surge Suppression | Built-in for DC coil models; protects against voltage spikes |
The 100-C60*00 contactor is widely deployed in industrial automation applications:
| Industry | Application |
|---|---|
| Manufacturing | Motor starting/stopping for conveyors, pumps, fans, compressors |
| HVAC | Controlling large HVAC fan and compressor motors |
| Material Handling | Hoist, crane, and conveyor drive controls |
| Machine Tools | Spindle motor control and auxiliary equipment |
| Water / Wastewater | Pump station motor controls |
Typical Use Cases:
Direct-on-line (DOL) motor starting
Motor reversing (with two contactor combinations)
Transformer switching
Lighting and other resistive load control
