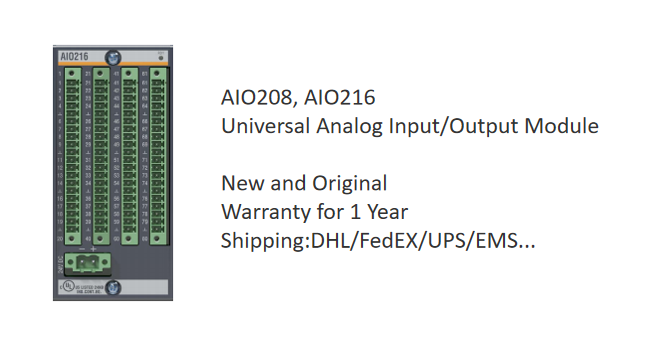

The Bachmann AIO208/SI (part number 00023018-00) is a universal analog input/output module from the M200 controller system, featuring 8 galvanically isolated channels that can be flexibly configured as inputs or outputs. Supporting standard current (0/4–20 mA, ±20 mA) and voltage ranges (±10 V to ±100 mV), as well as Pt100 thermocouple inputs, this module provides a 16-bit input and 14-bit output resolution with an adjustable digital filter from 4 kHz to 0.5 Hz per channel.
Item No :
AIO208/SI 00023018-0Order(MOQ) :
1 PiecePayment :
T/T, Western UnionProduct Origin :
GermanyShipping Port :
WuhanLead Time :
3-5daysWeight :
3kgAIO208/SI 00023018-00 Bachmann
| Specification | Detail |
|---|---|
| Manufacturer | Bachmann electronic GmbH |
| Product Series | M200 Controller System |
| Part Number | 00023018-00 |
| Channels | 8 (galvanically isolated per channel) |
| Modes | Analog input, temperature measurement, analog output |
| Analog Input Ranges | ±10 V to ±100 mV, 0(4) to 20 mA, ±20 mA |
| Temperature Inputs | Pt100 (2/3/4-wire), Thermocouples J, K, T, N, E, R, S, B |
| Analog Output Ranges | ±10 V, 0(4) to 20 mA |
| Resolution | 16-bit input / 14-bit output |
| Input Filter | Adjustable from 4 kHz to 0.5 Hz per channel |
| Refresh Cycle | 100 µs standard |
| Galvanic Isolation | 500 V (channel-to-channel and channel-to-system) |
| Protection Features | Overload, short-circuit, external voltage-proof |
| Cold Climate Variant | AIO208/SI CC (part number 00026636-00) for condensation-proof applications |
Hot Sale Recommendation
| SEM201 00011756-00 | AI204/4 00010693-00 |
| DIO16-C 00010285-00 | AO202 00010692-00 |
| DIO32-C 00010129-00 | AO202/SI 00012246-10 |
| DIO264-C 00009205-00 | AO204/SI 00012246-00 |
| TCO208-C 00010850-00 | AIO288 00014470-00 |
| TCO216-C 00008673-00 | AIO288/1 00014470-10 |
| DA3284-C 00013597-00 | PTAI216 00010708-00 |
| AIO202/SI 00023016-00 | TI214 00014008-00 |
| CNT204/H 00010709-10 | TI214/2 00014008-20 |
| CNT204/R 00010709-20 | ACR222 / 2 00009928-10 |
Q1: What is the difference between the AIO208 and the AIO208/SI?
The AIO208/SI is a specific variant featuring galvanically isolated channels (SI = Single-Input or Special Isolation). Per-channel isolation (500 V) ensures electrical separation between channels and the system, which is critical for protecting sensitive control electronics and eliminating ground loop issues.
Q2: What does the "SI" designation mean in the part number?
"SI" typically denotes galvanic isolation per channel (from the German "Single-Input" or an isolation designation). For the AIO208/SI, this confirms that each of the 8 channels is individually isolated.
Q3: Can I mix input and output types on a single AIO208/SI module?
Yes. Each of the 8 channels can be individually configured as either an analog input, an analog output, or a temperature input. Additionally, because input and output are available on every channel, a secondary unused channel can be repurposed, effectively doubling the available channels.
