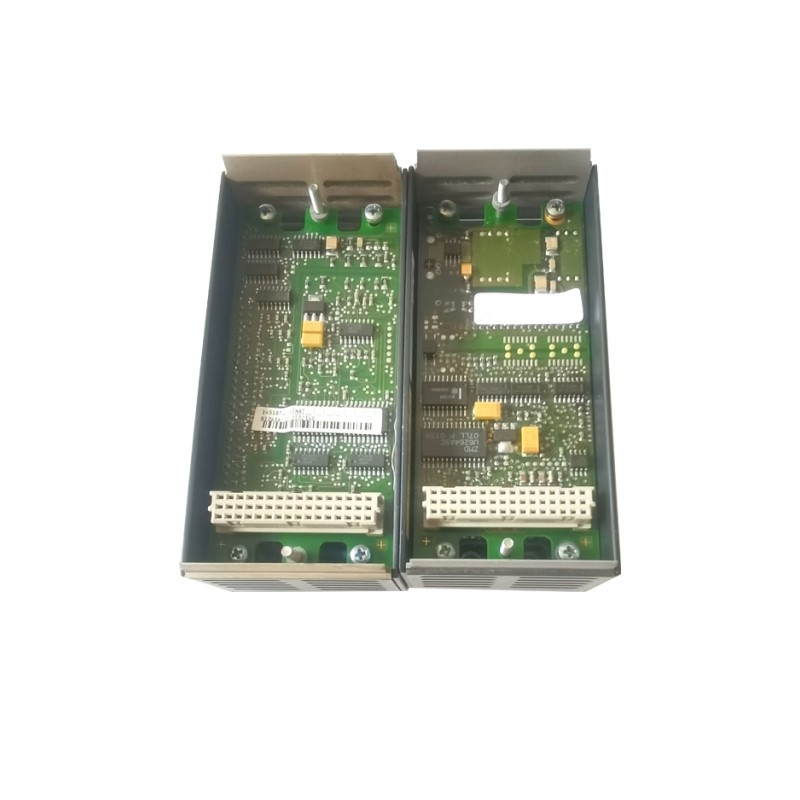

Key Features
Core Features & Advantages
-
Highest Precision with Temperature Calibration: The module's standout feature is its extraordinary accuracy of ±0.005%, maintained across the entire operating temperature range. This is achieved through integrated temperature calibration, making the AI204/4 ideal for the most demanding measurement applications in industrial processes .
-
Extremely Fast and Flexible Data Acquisition: With a minimum sampling time of 20 µs, the module enables high-speed data acquisition for dynamic processes. The sampling time and input filter (0.33 kHz / 4 kHz) can be configured by software, providing flexibility to balance speed and noise suppression .
-
Robust Industrial Design and Isolation: The module offers 500V galvanic isolation both between individual channels and from the system, protecting against ground loops and electrical noise . Its wide operating temperature range of -30°C to +60°C ensures reliable performance in harsh industrial environments .
Typical Applications
The AI204/4 is widely used for precision voltage measurement in a variety of industries, including:
-
Process Control: Monitoring temperature, pressure, flow, and level transmitters with voltage outputs in chemical, oil & gas, and power generation plants .
-
Machine Automation: Interfacing with position sensors, load cells, and feedback devices in packaging, material handling, and assembly systems .
-
Data Acquisition: Capturing high-fidelity signals from sensors and transducers for centralized monitoring and analysis .
Frequently Asked Questions (FAQ)
Q1: What is the difference between AI204/1, AI204/2, and AI204/4?
A: The models differ only in the number of input channels. The AI204/1 provides 1 channel (part number 00010693-20), the AI204/2 provides 2 channels (00010693-10), and the AI204/4 (00010693-00) provides 4 channels. All share the same 16-bit resolution, ±10V range, and high precision .
Q2: Can I measure current (4-20 mA) signals with this module?
A: No. The AI204/4 is specifically designed for ±10V voltage signals. For current (0-20 mA) inputs, you should use the AI204/SI module (part number 00012245-00 for 4 channels) .
Q3: What is the significance of the "differential" input?
A: A differential input measures the voltage difference between its two inputs, providing high immunity to common-mode noise. The module has a permitted common-mode voltage of max. ±2V and a common-mode rejection of >66 dB, ensuring accurate measurements in noisy industrial environments .
Q4: Is the module hot-swappable?
A: The search results do not confirm hot-swap capability for this specific M1 module. It is recommended to consult the Bachmann system manual for the M1 platform to confirm installation and replacement procedures.
Q5: What accessories are available for this module?
A: Bachmann offers terminal sets with different connection types, such as screw-type terminal sets (e.g., SS-AI204/4 B+C) and cage clamp terminal sets (e.g., KS-AI204/4 B+C), with labeling strips and coding elements .
Recommended Models
The AI204/4 is part of a family of high-precision analog input modules from Bachmann, offering different channel counts and signal types. Here are recommended related models:
