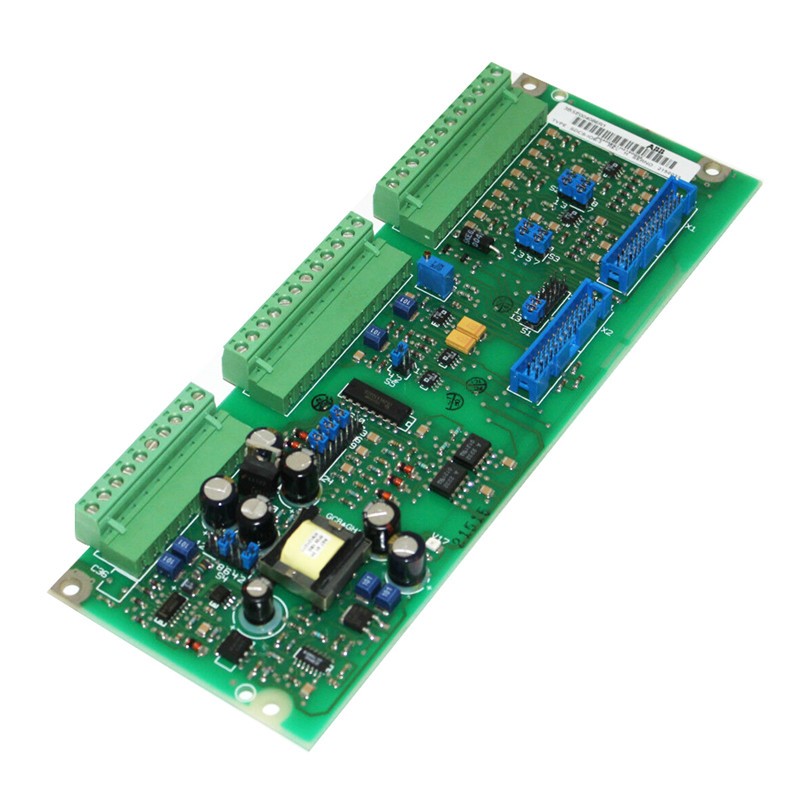

ABB UNS0001a Module HEIR448307R in stock
| Model Number |
HEIR448307R |
| Place of Origin |
Sweden |
| Dimension/Weight |
3kg |
| Condition |
New and Original |
| Warranty |
1 year |
| Shipping term |
DHL Fedex TNT EMS UPS |
| Payment |
TT / Western Union |
| Delivery time |
3-5 days |
| Service |
24 Hours Online Service |
Core Features & Advantages
-
Critical Interface for High-Voltage Safety Systems: The module's standout feature is its robust design for mission-critical applications. With up to 2.5 kV of galvanic isolation, it provides a safe electrical barrier between the sensitive low-voltage controller and high-power field circuits, ensuring system stability and operator safety in harsh power plant environments.
-
Versatile Operation and Fast Response: Supporting both 24 V DC and 120 V AC outputs, the module can directly interface with a wide variety of plant equipment without extra conversion hardware. It also features minimal propagation delay for real-time execution of critical protection commands.
-
Integrated Diagnostics for High Availability: Built-in diagnostics and LED status indicators allow for the rapid detection of faults, such as short circuits or open circuits, at each output channel. This feature is crucial for the UNITROL 6000 system's ability to achieve high availability and minimize downtime, enabling efficient troubleshooting.
Typical Applications
The UNS0001a module is integral to the UNITROL® 6000 system, which serves a wide range of power generation and heavy industry applications:
-
Power Generation: Driving trip circuits, alarm indicators, and control contactors for steam, gas, nuclear, and hydro power plant generators.
-
Synchronous Motor Control: Controlling the operation of large motors in steel mills, pulp and paper plants, chemical facilities, and refineries.
Frequently Asked Questions (FAQ)
Q1: What are the key differences between the UNS0001a and similar ABB digital output modules?
A: The UNS0001a is designed for high-performance applications within the UNITROL 6000 system. Compared to other modules like the 216AB61, it offers a high channel density (up to 32 channels depending on revision), dual-voltage support (24V DC and 120V AC), and fast switching with minimal propagation delay for real-time execution . Modules like the 500BOM01, by contrast, are lower channel-count (16), lower current (0.5A) options for the 500 Series I/O .
Q2: What is the typical output current capability of this module?
A: For similar ABB digital output modules, the maximum switching capacity per channel is generally up to 2A for resistive loads . Please verify the exact current rating for the UNS0001a against the technical documentation for your specific revision.
Q3: What diagnostic features does the module include?
A: The module includes built-in diagnostic capabilities to aid in troubleshooting. This includes integrated LED status indicators on the front panel and feedback to the central controller, allowing for rapid detection of faults such as short circuits, open circuits, or abnormal output levels .
Q4: What kind of environmental conditions can the module withstand?
A: The module is designed with a robust industrial design. It is built to operate within a wide temperature range of approximately -25°C to +70°C and features high immunity to electromagnetic interference (EMC), making it suitable for harsh power plant environments .
Q5: How can I verify that the UNS0001a is compatible with my system?
A: Compatibility is determined by several factors. To ensure it works with your system, check the specific HESG part number (e.g., HESG324013R0101 for the 216AB61 variant) and the S800 I/O bus interface to ensure it matches your backplane and controller firmware
