ABB RPBA-01 Profibus Adapter PROFIBUS DP Adapter Module in Stock

ABB RPBA-01 Profibus Adapter PROFIBUS DP Adapter Module in Stock

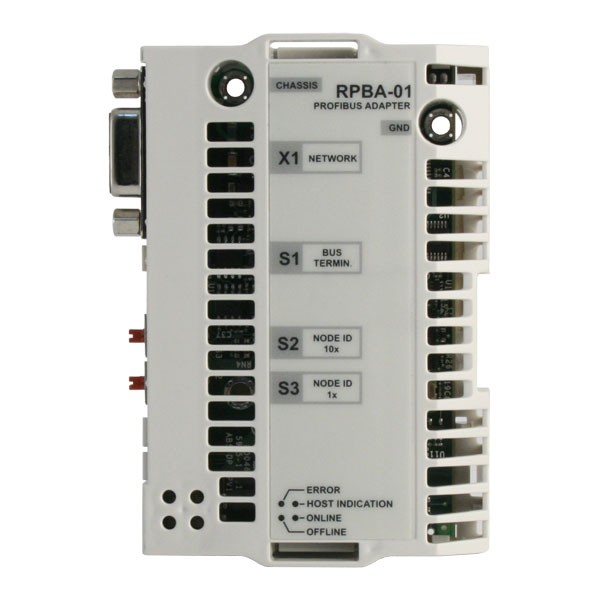

The ABB RPBA-01 is a PROFIBUS DP adapter module that enables seamless integration of ABB drives into PROFIBUS fieldbus networks..

  • Item No :

    RPBA-01

  • Order(MOQ) :

    1

  • Payment :

    EXW

  • Product Origin :

    Sweden

  • Shipping Port :

    Wuhan

  • Lead Time :

    3-5days

  • Weight :

    3kg

  • Product Details



    Specification Description
    Manufacturer ABB
    Model RPBA-01
    Order Code 3AUA0000097197 (Kit)
    Product Type PROFIBUS DP Adapter Module / Fieldbus Communication Card
    Core Function Connects ABB drives to PROFIBUS DP networks as a slave; enables control, monitoring, and parameterization
    Communication Protocol PROFIBUS DP-V0 and DP-V1
    Data Transfer Rates 9.6 kbit/s to 12 Mbit/s (auto-detecting)
    Supported PPO Types PPO 1–6
    Communication Profiles PROFIdrive and ABB drives profile
    Compatible Drive Series ACS550, ACS580, ACS880, and other ACS series drives
    Physical Interface 9-pin female DSUB connector, 34-pin parallel bus connector
    Node Addressing Address range 0–126 (set via DIP switches or parameter)
    Maximum Nodes Up to 127 (with repeaters)
    Bus Cable Length 100–1200 m (depending on baud rate)
    Power Supply Via drive internal bus
    Operating Temperature -20°C to +60°C
    Protection Class IP20
    Weight Approx. 0.15–0.2 kg
    Certifications CE, cUL, UL, GOST R, RoHS

    Related Product Model Recommendations



    Model Description Typical Application
    RPBA-02 / RPBA-03 Updated/revision variants of PROFIBUS adapter Newer drive firmware compatibility
    RETA-01 Ethernet adapter module Ethernet/IP or Modbus TCP integration
    RDCO-02 DDCS communication option Fiber-optic DDCS network connectivity
    RIOB-01 I/O extension module Additional digital/analog I/O expansion
    FPBA-01 PROFIBUS adapter for ACS880 PROFIBUS connection for newer ACS880 series



    3BSE081637R1 PM866AK02 PM860AK01
    3BSE031155R1 BC810K02 BC810K01 3BSE031154R1
    3BSE048845R1 CI868K01 TB840A 3BSE037760R1
    3BSE043660R1 CI867K01 TU812V1 3BSE013232R1
    3BSE018172R1 SB822 CI801 3BSE022366R1
    3BSE037760R1 TB840A CI854AK01 3BSE030220R1
    3BSE013210R1 DI830 PM891K01 3BSE053241R1
    3BSE008510R1 DO810 PM866K01 3BSE050198R1
    3BSE061637R1 TB826 PM862K01 3BSE076940R1
    3BSC610066R1 SD833 DO820 3BSE008514R1
    3BSC610067R1 SD834 AO810V2 3BSE038415R1
    3BSC610068R1 SS832 TU810V1 3BSE013230R1
    3BSE080239R1 NE870 TU811V1 3BSE013231R1



    Payment & Delivery

    FAQs

    Q1: Which ABB drives are compatible with the RPBA-01?

    The RPBA-01 is compatible with a wide range of ABB drives, including ACS550, ACS580, ACS880, and other ACS series drives . Compatibility with specific drive models should be verified against the drive's option slot availability and firmware version.

    Q2: What is the difference between RPBA-01 and NPBA-12?

    Both are PROFIBUS DP adapters, but RPBA-01 is the newer "R-series" module designed for ACS550, ACS580, ACS880, while NPBA-12 is an older module primarily for ACS800 and ACS600 series drives. They are not physically or electrically interchangeable.

    Q3: How do I configure the RPBA-01 for communication with a PLC?

    Configuration requires:

    • Setting the PROFIBUS node address (parameter 2 or DIP switches)

    • Selecting the PPO type (parameter 4, typically PPO 1–6)

    • Installing the correct GSD file on the PROFIBUS master (ABB_0812.GSD for DP-V0, ABB10812.GSD for DP-V1)

    Q4: What is the maximum bus cable length for the RPBA-01?

    The maximum cable length depends on the transmission rate: up to 1200 m at 9.6 kbit/s down to 100 m at 12 Mbit/s .

    Q5: Is the RPBA-01 still an active product or has it been discontinued?

    The RPBA-01 is considered a commercialized / active product by ABB , though its exact lifecycle status varies by region. For new projects, consider the FPBA-01 for ACS880 drives or verify availability with ABB directly.
