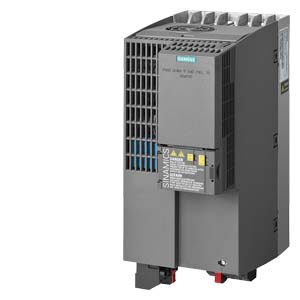

The Siemens 6SL3210-1KE23-8AP1 is a SINAMICS G120C compact frequency converter with a rated power of 18.5 kW / 25 HP (Low Overload). With its Frame Size FSC design, it is ideal for standard drive applications in machine building and industrial automation, such as conveyor belts, mixers, pumps, fans, and compressors.
Item No :
6SL3210-1KE23-8AP1Order(MOQ) :
1 PiecePayment :
EXWProduct Origin :
ChinaShipping Port :
WuhanLead Time :
3~5 daysWeight :
9kg| Specification | Description |
|---|---|
| Manufacturer | Siemens |
| Model | 6SL3210-1KE23-8AP1 |
| Product Family | SINAMICS G120C |
| Product Type | Compact Frequency Converter |
| Rated Power (LO) | 18.5 kW / 25 HP at 150% overload for 3 s, 110% for 57 s, 100% for 240 s |
| Rated Power (HO) | 15.0 kW / 20 HP at 200% overload for 3 s, 150% for 57 s, 100% for 240 s |
| Input Voltage | 3 AC 380–480 V (+10% / -20%) |
| Input Frequency | 47–63 Hz |
| Output Current (LO) | 37 A |
| Output Current (HO) | 31 A |
| Maximum Output Current | 76 A |
| Frame Size | FSC |
| Dimensions (H x W x D) | 295 mm x 140 mm x 203 mm |
| Protection Rating | IP20 / UL Open Type |
| Integrated Filter | Class A EMC Filter |
| Communication | PROFIBUS DP (integrated) |
| I/O Interface | 6 DI, 2 DO, 1 AI, 1 AO, 1 Motor Temperature Sensor |
| Safety Function | STO (Safe Torque Off) integrated |
| Output Frequency | 0–550 Hz (V/f control); 0–240 Hz (Vector control) |
| Pulse Frequency | 4 kHz (nominal), 16 kHz (max.) |
| Operating Temperature | -20°C to +40°C (up to +60°C with derating) |
| Weight | Approx. 2.49 kg |
| Country of Origin | GB (United Kingdom) |
| Model | Description | Typical Application |
|---|---|---|
| 6SL3210-1KE23-8AP1 (this model) | G120C, 18.5 kW, PROFIBUS DP, Filter A, FSC | Standard drive applications with PROFIBUS |
| 6SL3210-1KE23-8UP1 | Same power, unfiltered version | Applications with external filtering |
| 6SL3210-1KE23-2AP1 | G120C, 15 kW, PROFIBUS DP, Filter A | Smaller motor applications |
| 6SL3210-1KE22-6AP1 | G120C, 11 kW, PROFIBUS DP, Filter A | Smaller motor applications |
| 6SL3210-1KE23-8AF1 | Same power, PROFINET communication | Applications requiring PROFINET |
| 6SL3201-0BE23-8AA0 | Braking resistor for 18.5 kW G120C | Dynamic braking applications |
| 6SL3202-0AE23-8CA0 | Output reactor for 18.5 kW G120C | Long motor cable applications |
Q1: What is the primary function of the 6SL3210-1KE23-8AP1?
It is a compact frequency converter in the SINAMICS G120C series, used to control the speed and torque of three-phase AC motors. It provides variable speed control for standard drive applications such as conveyors, mixers, pumps, fans, and compressors .
Q2: What communication protocol does this converter support?
This specific model includes PROFIBUS DP communication as standard . For applications requiring PROFINET, the 6SL3210-1KE23-8AF1 variant should be selected. The G120C family also offers USS/Modbus RTU versions for serial communication applications.
Q3: Does this converter include a built-in line filter?
Yes. The "A" in the model number indicates an integrated Class A line filter, which helps reduce electromagnetic interference and ensures compliance with EMC requirements for industrial environments . For unfiltered versions, the model number would include "U" instead of "A" (e.g., 6SL3210-1KE23-8UP1).
Q4: What safety functions are available?
The converter features Safe Torque Off (STO) as an integrated safety function, certified up to SIL 3. This allows the motor to be safely de-energized without removing power from the drive, enabling faster restart after a safety demand. The STO function can be activated via terminals or PROFIsafe without additional external components .
Q5: What is the difference between the LO and HO ratings?
Low Overload (LO) is for applications with relatively constant loads (e.g., pumps, fans), rated at 18.5 kW / 25 HP. High Overload (HO) is for applications with high starting torque or frequent starts/stops (e.g., conveyors, mixers), rated at 15.0 kW / 20 HP. Choose the rating based on your motor's most demanding operating conditions.
