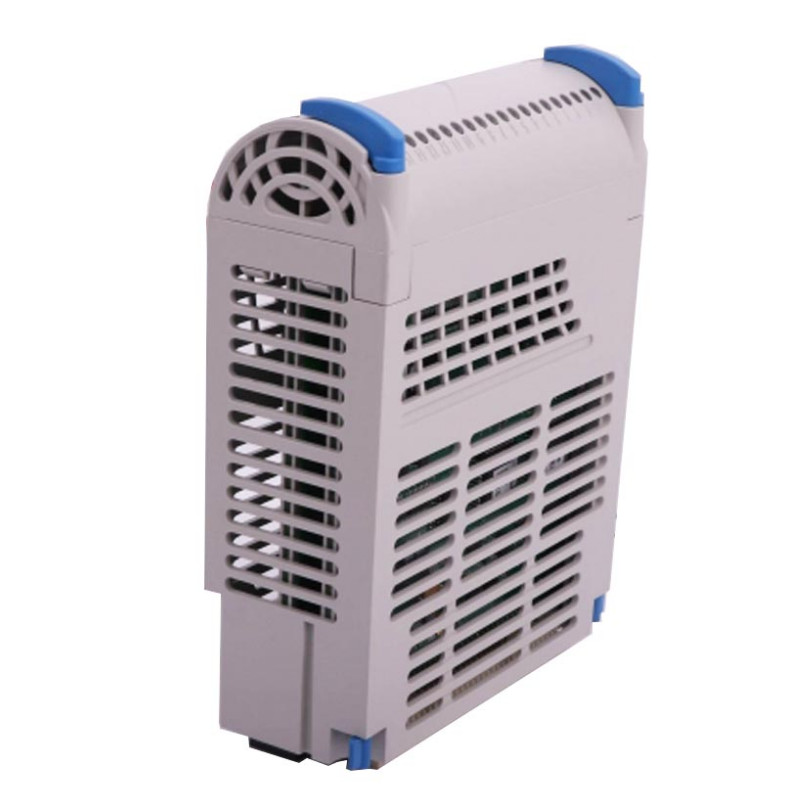

Products Overview: Emerson Ovation 5X00059G01 HART Analog Input Module
The Emerson 5X00059G01 is a HART analog input module designed for the Emerson Ovation distributed control system (DCS).
It's main role is to acquire analog signals (like 4-20 mA from sensors) from field instruments and convert them into digital data for the control system. A key feature is its support for the HART protocol, which allows for two-way digital communication with smart field devices, enabling remote diagnostics and configuration on top of the standard analog signal.
| Model Number |
5X00059G01 |
| Place of Origin |
USA |
| Dimension/Weight |
0.5 kg |
| Condition |
New and Original |
| Warranty |
1 year |
Shipping term
|
DHL Fedex UPS |
| Payment |
TT |
| Delivery Time |
3-5 days |
Service
|
24 Hours Online Service |
Key Specification
Core Features & Advantages
-
HART Communication for Smart Diagnostics: The module's standout feature is its HART 7 protocol support, enabling bidirectional data exchange between field devices and the control system. This allows real-time diagnostics, remote configuration, and asset management—significantly improving operational efficiency and reducing maintenance costs.
-
High Precision and Multi-Signal Flexibility: The module offers high accuracy with up to ±0.01% full-scale measurement and flexible 12–16 bit resolution. It supports multiple signal types—4–20 mA, 1–5 V, RTD, and thermocouple—making it adaptable to diverse field instruments.
-
Designed for Critical Industrial Environments: With an extended operating temperature range (-40°C to +85°C) and robust electrical isolation between channels and ground, the module ensures reliable performance in demanding applications like power generation, oil & gas, and chemical processing. The personality module (5X00109G01) provides per-channel fusing and jumper configuration for field-powered or locally powered transmitters.
Typical Applications
The 5X00059G01 is widely used in process industries requiring precise analog measurement and HART device integration, including:
-
Power Generation: Monitoring boiler temperature, pressure, and flow parameters
-
Oil and Gas: Wellhead pressure and flow data acquisition
-
Chemical Processing: Reactor temperature and level monitoring
-
Water/Wastewater Treatment: Pump and flow control systems
FAQ
Q1: What types of analog signals does this module support?
A: The module supports multiple signal types including 4–20 mA, 1–5 V, RTD, thermocouple, and HART-enabled devices. The primary analog input stage facilitates 4–20 mA HART loop protocol connectivity for process variable acquisition and transmitter diagnostics.
Q2: How many input channels does the 5X00059G01 have?
A: The module typically provides 8–16 independent channels depending on configuration. Based on similar models in the Ovation series, 8 input channels is the most common configuration.
Q3: What is the module's accuracy and resolution?
A: Accuracy is specified as ±0.01% to ±0.1% full scale with 12–16 bit resolution, depending on signal type and configuration.
Q4: Is the module hot-swappable?
A: Yes, the module supports hot-swapping for maintenance without system shutdown. It is recommended to inhibit associated analog loop inputs before module removal to prevent invalid process values.
Q5: Is 5X00059G01 compatible with all Ovation controllers?
A: It requires proper configuration and integration within Ovation DCS systems. The module is designed specifically for the Emerson Ovation system and supports high-speed HART communication.
