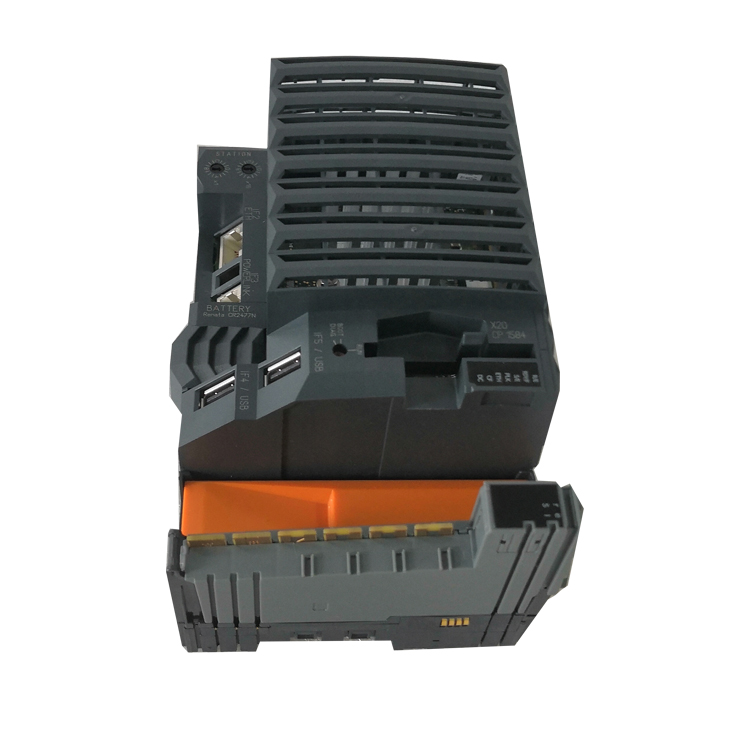

B&R X20CP1584 Controller Module

The B&R X20CP1584 is a high-performance CPU module for the B&R X20 system, powered by an Intel Atom™ processor clocked at 0.6 GHz and equipped with 256 MB DDR2 SDRAM. Its core function is to serve as the central processing unit for automation tasks, providing both standard and real-time communication interfaces to control complex machinery and processes.

Item No :
X20CP1584
Order(MOQ) :
1
Payment :
EXW
Product Origin :
Austria
Shipping Port :
Wuhan, Hubei, China
Lead Time :
3-5days
Weight :
0.5kg

Product Overview: B&R X20CP1584 Controller Module

The B&R X20CP1584 is a high-performance compact controller from the X20 series, featuring an Intel Atom processor and integrated communication interfaces. It includes 512 MB of RAM, built-in Ethernet, USB, and Powerlink support, making it ideal for scalable, decentralized control solutions.

Brand Name: B&R

Model Number: X20CP1584

Condition: 100% New and Original

Lead Time: 3-5 Days

Warranty: 1 Year

Key Specifications

Item	Specifications / Features
Processor	Intel Atom™ E620T, 0.6 GHz
Memory	256 MB DDR2 SDRAM, 1 MB SRAM
Storage	1x CompactFlash slot for removable application memory
Interfaces	1x RS232, 1x Ethernet (10/100/1000BASE-T), 1x POWERLINK (V1/V2), 2x USB, 1x X2X Link
System Platform	B&R X20 system; requires terminal block X20TB12 (included)
Power Consumption	8.6 W (without interface module and USB)
Protection Rating	IP20; fanless design
Operating Temperature	-25°C to +60°C

Core Features & Advantages

High Performance for Complex Tasks – The module’s standout feature is its Intel Atom™ processor combined with 256 MB DDR2 SDRAM. This combination delivers strong processing power suitable for demanding control applications, with a typical instruction cycle time of 0.0075 µs.
Integrated Real-Time Communication – It includes an onboard POWERLINK interface with poll response chaining (PRC) mode for superior real-time network performance. The X2X Link enables seamless expansion with X20 I/O modules, while the Gigabit Ethernet port supports high-speed data exchange.
Flexible Expansion and Robust Design – The module features one slot for modular interface expansion, allowing easy integration of various bus and network systems (e.g., CAN, Profibus-DP). Its fanless design enhances reliability, and it is ATEX certified for Zone 2 hazardous areas and carries multiple marine approvals (DNV, LR, ABS, BV), making it suitable for harsh environments.

Typical Applications

The X20CP1584 is widely used in industrial automation applications requiring a powerful, flexible, and reliable controller, such as:

Machine Building – Controlling packaging, textile, and handling machines with complex logic and motion requirements.
Process Automation – Serving as a slave controller in process control systems for temperature, pressure, and flow monitoring.
Factory Automation – Managing automated production lines, robotics, and conveyor systems.

Performance Data

Item	Performance Metrics
Typical Instruction Cycle Time	Approx. 0.0075 µs (boolean operations)
POWERLINK Cycle Time	As low as 200 µs (depending on network configuration)
Maximum I/O Points	Depends on X2X Link expansion capability; supports several thousand points
Number of Task Cycles (Multitasking)	Supports up to 128 task cycles, each independently configurable
Battery Life (SRAM Backup)	Typically 5 years (at 25°C ambient temperature)

Selection Guide & Upgrade/Replacement Information

Item	Description
Current Product Status	The X20CP1584 is a classic B&R controller series and is gradually being replaced by newer models such as the X20CP1585 and X20CP1586. For specific availability, please confirm with B&R or its authorized distributors.
Upgrade/Replacement Models	The X20CP1585 or X20CP1586 are recommended upgrade options, offering advantages such as: • Higher clock speeds (0.8 GHz and 1.0 GHz respectively) • Larger memory capacity (512 MB or 1 GB DDR3 SDRAM) • Enhanced interface expansion capabilities • Broader safety certifications
Selection Tips	If your project has moderate performance requirements (e.g., standard machine control, basic production lines) and cost sensitivity is a factor, the X20CP1584 remains a capable choice. However, if the application involves large-scale data processing, multi-axis motion control, or future expansion needs, the X20CP1585/1586 series is strongly recommended.
