Allen-Bradley 20BC260A3ANNACC0 PowerFlex 700 AC Drive (260A, 132kW, 400V, ControlNet, LCD) – Rockwell Spare Part

Allen-Bradley 20BC260A3ANNACC0 PowerFlex 700 AC Drive

The Allen-Bradley 20BC260A3ANNACC0 is a high-power PowerFlex 700 series adjustable frequency AC drive from Rockwell Automation. Engineered for demanding industrial motor control applications, this 400V class drive delivers up to 110 kW (150 HP) Normal Duty or 132 kW (175 HP) Heavy Duty performance, making it suitable for large-scale machinery, process lines, and heavy industrial equipment.

The PowerFlex 700 platform is renowned for its flexible packaging, space-saving design, and reliable operation across applications including machine tools, fans, pumps, conveyors, and material handling systems .

  • Item No :

    20BC260A3ANNACC0

  • Order(MOQ) :

    1

  • Payment :

    EXW

  • Product Origin :

    USA

  • Shipping Port :

    Wuhan, Hubei, China

  • Lead Time :

    3-5 days

  • Weight :

    10kg

  • Key Features



    Feature Description
    High Power Output 260A rated output, supporting motors up to 110 kW (150 HP) Normal Duty / 132 kW (175 HP) Heavy Duty
    Vector Control Supports V/Hz, Sensorless Vector Control (SVC), and Force Vector Control (C-type) for precise motor regulation
    Full Numeric LCD Interface Onboard HIM with full numeric keypad for configuration and monitoring
    ControlNet Communication Native ControlNet (Coax) network support via DPI module for seamless system integration
    EMC Filtering Second Environment Filter per CE EMC directive (89/336/EEC) reduces electromagnetic interference
    24V I/O Vector Control with 24V I/O interface
    Rugged Construction IP20 / NEMA Type 1 panel-mount enclosure for protected control cabinet installation

    Technical Specifications

    General



    Parameter Specification
    Manufacturer Allen-Bradley / Rockwell Automation
    Series PowerFlex 700
    Part Number 20BC260A3ANNACC0
    Product Type Adjustable Frequency AC Drive
    Frame Size 6

    Power Ratings



    Parameter Specification
    Input Voltage 380–480V AC, 3-phase, 50/60 Hz
    Rated Output Current 260 A (Normal Duty) / 286 A (Heavy Duty)
    Normal Duty Power 110 kW (150 HP) @ 400V AC
    Heavy Duty Power 132 kW (175 HP) @ 400V AC
    Output Voltage Range 0–Input Voltage, 3-phase PWM
    Output Frequency Range 0–500 Hz
    Input Power Rating 177 kVA @ 400V AC, 3-phase, Normal Duty
    Overload Capacity 150% for 60 seconds (ND) / 180% for 60 seconds (HD)
    AC Input Overvoltage Trip 570V AC @ 380/400V
    Input Fuse Ratings Dual-element time-delay: 350–550 A; Non-time-delay: 350–750 A

    Configuration Details



    Parameter Specification
    Enclosure Panel Mount – IP20, NEMA/UL Type 1
    Interface Module Full Numeric LCD with Brake
    Control Type Vector Control with 24V I/O
    Communication ControlNet (Coax) – DPI Module
    EMC Filtering Second Environment Filter per CE EMC directive
    Brake IGBT No
    Internal Brake Resistor No (external required)
    Encoder Feedback No

    Environmental



    Parameter Specification
    Operating Temperature 0 to 50°C without derating
    Storage Temperature -40 to 70°C
    Enclosure Rating IP20 / NEMA Type 1

    Applications

    The PowerFlex 700 20BC260A3ANNACC0 is suitable for high-power industrial motor control applications:

    • Material Handling: Large conveyor systems, sortation equipment, and bulk material transport

    • Process Industries: Pumps, fans, and compressors in chemical, petrochemical, and water treatment facilities

    • Manufacturing: Heavy machinery, production lines, and machine tool auxiliaries

    • Infrastructure: HVAC systems, energy management, and large-scale ventilation

    Key Benefits



    Benefit Description
    High Power Density 260A output handles demanding motor loads up to 110 kW / 150 HP in a compact Frame 6 design
    Flexible Control Modes Multiple control algorithms (V/Hz, SVC, Force Vector) suit diverse application requirements
    Network Integration ControlNet communication enables seamless integration with Rockwell Automation control systems
    Comprehensive Diagnostics Full numeric LCD interface provides clear status indication and parameter access
    Proven Reliability Established PowerFlex platform with extensive global install base

    Important Notes

    • Lifecycle Status: This product is discontinued (end-of-life). It is available through aftermarket suppliers while stock lasts .

    • Replacement Path: Rockwell Automation encourages migration to current-generation drives (e.g., PowerFlex 750-Series) for new installations.

    • Brake Resistor: The drive does not include a built-in brake IGBT or brake resistor. External braking hardware is required for dynamic braking applications .

    • Enclosure: IP20 rating requires installation in a protected control cabinet or enclosure .

    • Encoder Feedback: This specific configuration does not include encoder feedback capability .

    • Reference Documentation: Installation and programming information is available in PowerFlex 700 User Manual (Publication 20B-UM002) and related Rockwell Automation publications.

    FAQ

    Q1: What is the power rating of the 20BC260A3ANNACC0?

    A: The drive is rated at 110 kW (150 HP) Normal Duty and 132 kW (175 HP) Heavy Duty, with a rated output current of 260 A (ND) / 286 A (HD) at 400V AC, 3-phase .

    Q2: Is the PowerFlex 700 series still in production?

    A: No. Rockwell Automation has discontinued the PowerFlex 700 series. The product is no longer available for sale from the manufacturer, but aftermarket suppliers may have stock .

    Q3: What communication network does this drive support?

    A: This specific configuration includes ControlNet (Coax) network support via a DPI communication module .

    Q4: Does the drive include a braking resistor or brake IGBT?

    A: No. This model does not include a built-in brake IGBT or brake resistor. External braking hardware is required for dynamic braking applications .

    Q5: What enclosure rating does this drive have?

    A: The drive is rated IP20 / NEMA Type 1, designed for panel mounting inside a protected electrical enclosure .

    Q6: What control modes are available?

    A: The drive supports Volts per Hertz (V/Hz) , Sensorless Vector Control (SVC) , and Force Vector Control (C-type) for advanced motor regulation .

    Q7: What is the maximum output frequency?

    A: The maximum output frequency is 500 Hz .

    Q8: Does this drive include an HMI display?

    A: Yes, this configuration includes a Full Numeric LCD interface module with brake control .

    Q9: Does this drive support encoder feedback?

    A: No. This specific configuration (indicated by the "A" in the encoder position of the part number) does not include encoder feedback capability .

    Q10: What documentation is available for this drive?

    A: Key reference publications include the PowerFlex 700 User Manual (20B-UM002) and related Rockwell Automation technical data sheets.



Hot Tags :

AB 20BC260A3ANNACC0

Allen-Bradley 20BC260A3ANNACC0

Rockwell 20BC260A3ANNACC0

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Subject : Allen-Bradley 20BC260A3ANNACC0 PowerFlex 700 AC Drive

Related Products

  • New Allen Bradley 20G1F3D960LNDNNNNN PowerFlex 755TR Regenerative AC drive
    New Allen Bradley 20G1F3D960LNDNNNNN PowerFlex 755TR Regenerative AC drive

    The Allen-Bradley 20G1F3D960LNDNNNNN is a PowerFlex 755TR regenerative AC drive with TotalFORCE control technology, designed for high-power industrial applications requiring energy regeneration and harmonic mitigation. Operating at 480 VAC, 3-phase, it delivers 800 HP (600 kW) normal duty with a rated output current of 960 A in a Frame 9 design.

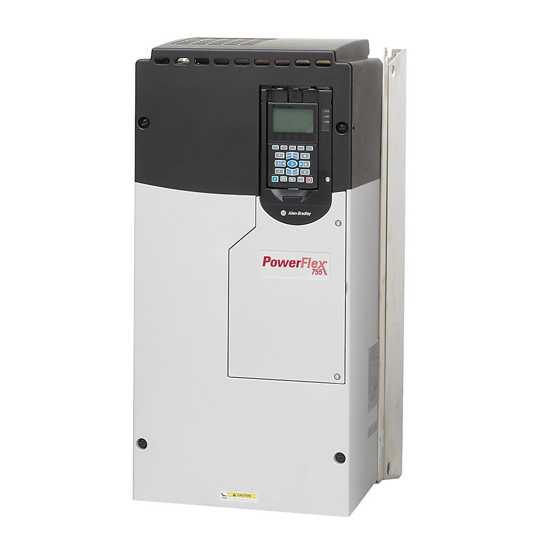

  • New Allen Bradley 20G1AND156JA0NNNNN PowerFlex 755 Air-cooled AC Drive
    New Allen Bradley 20G1AND156JA0NNNNN PowerFlex 755 Air-cooled AC Drive

    The Allen-Bradley 20G1AND156JA0NNNNN is a PowerFlex 755 air-cooled AC drive designed for high-performance motor control in demanding industrial applications. Operating at 480 VAC, 3-phase, it delivers 125 HP (90 kW) normal duty and 100 HP heavy duty output with a rated current of 156 A in a Frame 6 design.

  • New Allen Bradley 20G1AND415JA0NNNNN PowerFlex 755 Air-cooled AC Drive
    New Allen Bradley 20G1AND415JA0NNNNN PowerFlex 755 Air-cooled AC Drive

    The Allen-Bradley 20G1AND415JA0NNNNN is a PowerFlex 755 air-cooled AC drive designed for high-performance motor control in heavy industrial applications. Operating at 480 VAC / 650 VDC, 3-phase, it delivers 350 HP (260 kW) normal duty with a rated output current of 415 A in a Frame 7 design.

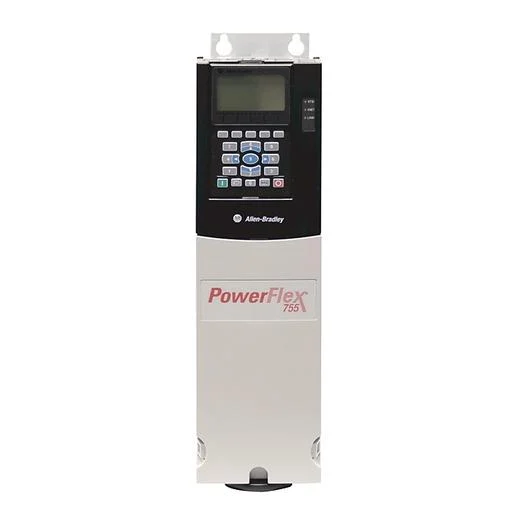

  • New Allen Bradley 20G1AND477JA0NNNNN PowerFlex 755 Air-cooled AC drive
    New Allen Bradley 20G1AND477JA0NNNNN PowerFlex 755 Air-cooled AC drive

    The Allen-Bradley 20G1AND477JA0NNNNN is a PowerFlex 755 air-cooled AC drive designed for high-performance motor control in heavy industrial applications. Operating at 480 VAC, 3-phase, it delivers 400 HP (300 kW) normal duty with a rated output current of 477 A in a Frame 7 design. The PowerFlex 755 is Rockwell Automation’s flagship drive platform, supporting applications from pumps and fans to complex motion control with Integrated Motion on EtherNet/IP.

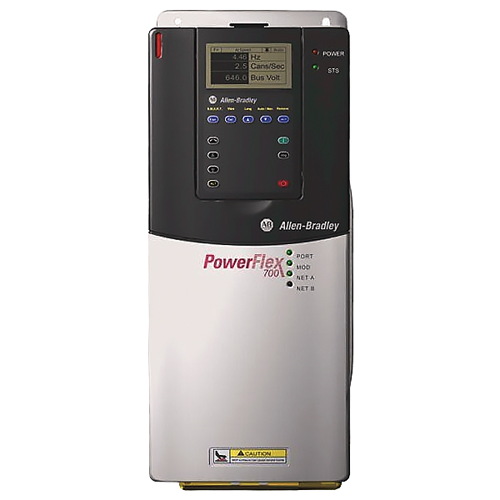

  • New Allen Bradley 20BC085A0AYNANC0 PowerFlex 700 Adjustable Frequency AC Drive
    New Allen Bradley 20BC085A0AYNANC0 PowerFlex 700 Adjustable Frequency AC Drive

    The Allen-Bradley 20BC085A0AYNANC0 is a PowerFlex 700 series adjustable frequency AC drive designed for three-phase motor control applications. Operating at 400 VAC with a rated output current of 85 A, it delivers 45 kW (60 HP) normal duty and 37 kW (50 HP) heavy duty power.

  • New Allen Bradley 20G1ANC367JA0NNNNN PowerFlex 755 Air-cooled AC drive
    New Allen Bradley 20G1ANC367JA0NNNNN PowerFlex 755 Air-cooled AC drive

    The Allen-Bradley 20G1ANC367JA0NNNNN is a PowerFlex 755 air-cooled AC drive designed for high-performance motor control in demanding industrial applications. Operating at 400 VAC, 3-phase, it delivers 200 kW (250 HP) normal duty and 160 kW (200 HP) heavy duty output with a rated current of 367 A in a Frame 7 design . The drive features embedded EtherNet/IP, integrated dynamic braking transistor, EMC filtering, and forced air cooling.

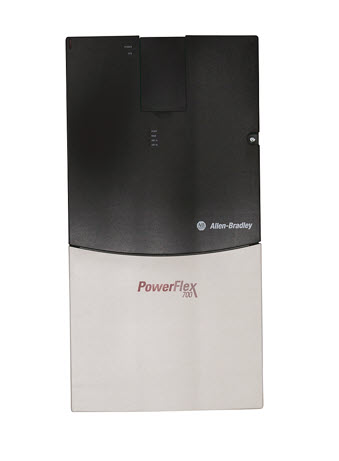

  • New Allen Bradley 20BD125A0ANNAND0 PowerFlex 700 Adjustable Frequency AC Drive
